Two-terminal decoupling capacitors, Bulk capacitors, X2y decoupling capacitors – Altera Device-Specific Power Delivery Network User Manual

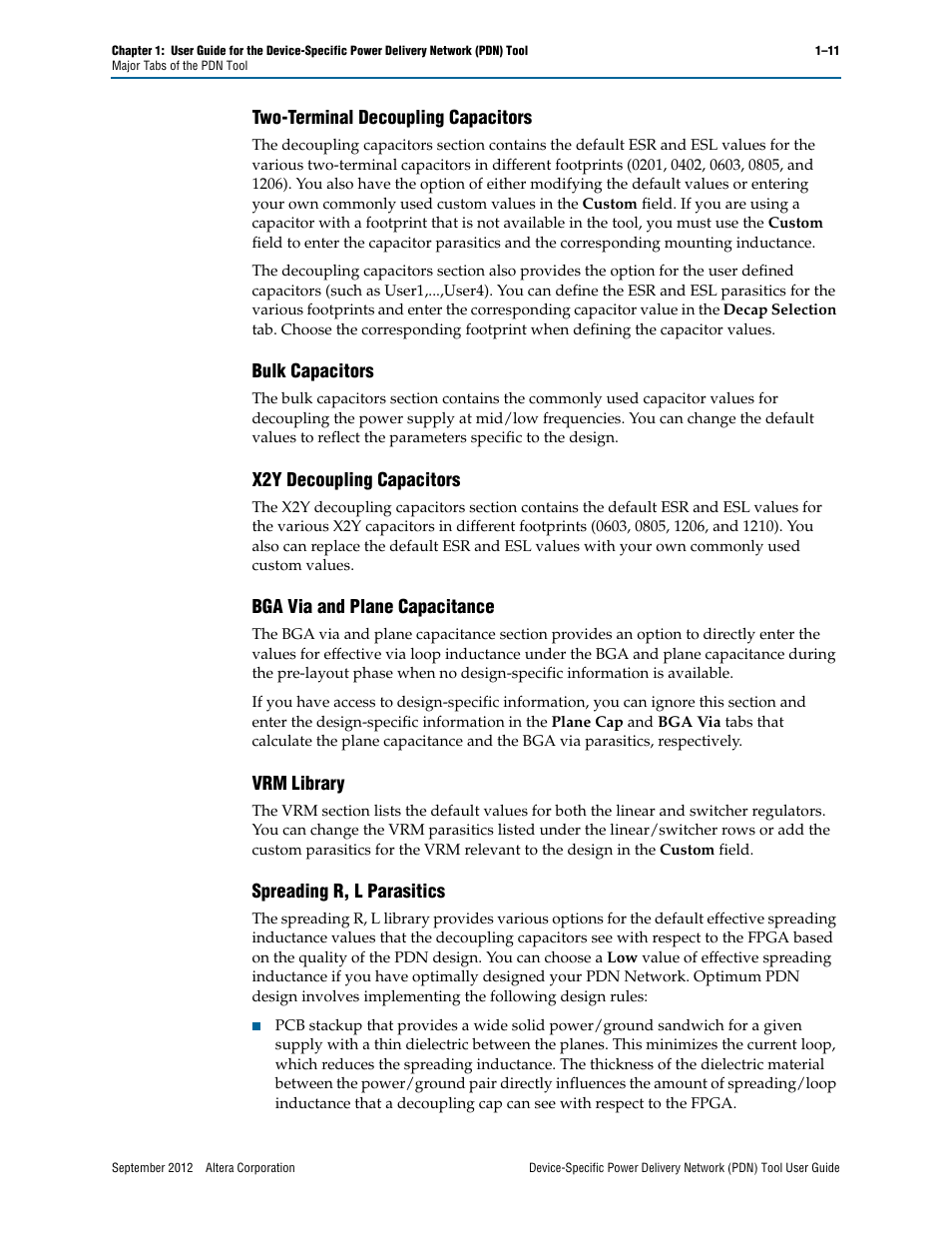

Page 15: Bga via and plane capacitance, Vrm library, Spreading r, l parasitics, Mid/l
