7 PC based Motion Generator PMotion
Page 14 User Manual for PMotion

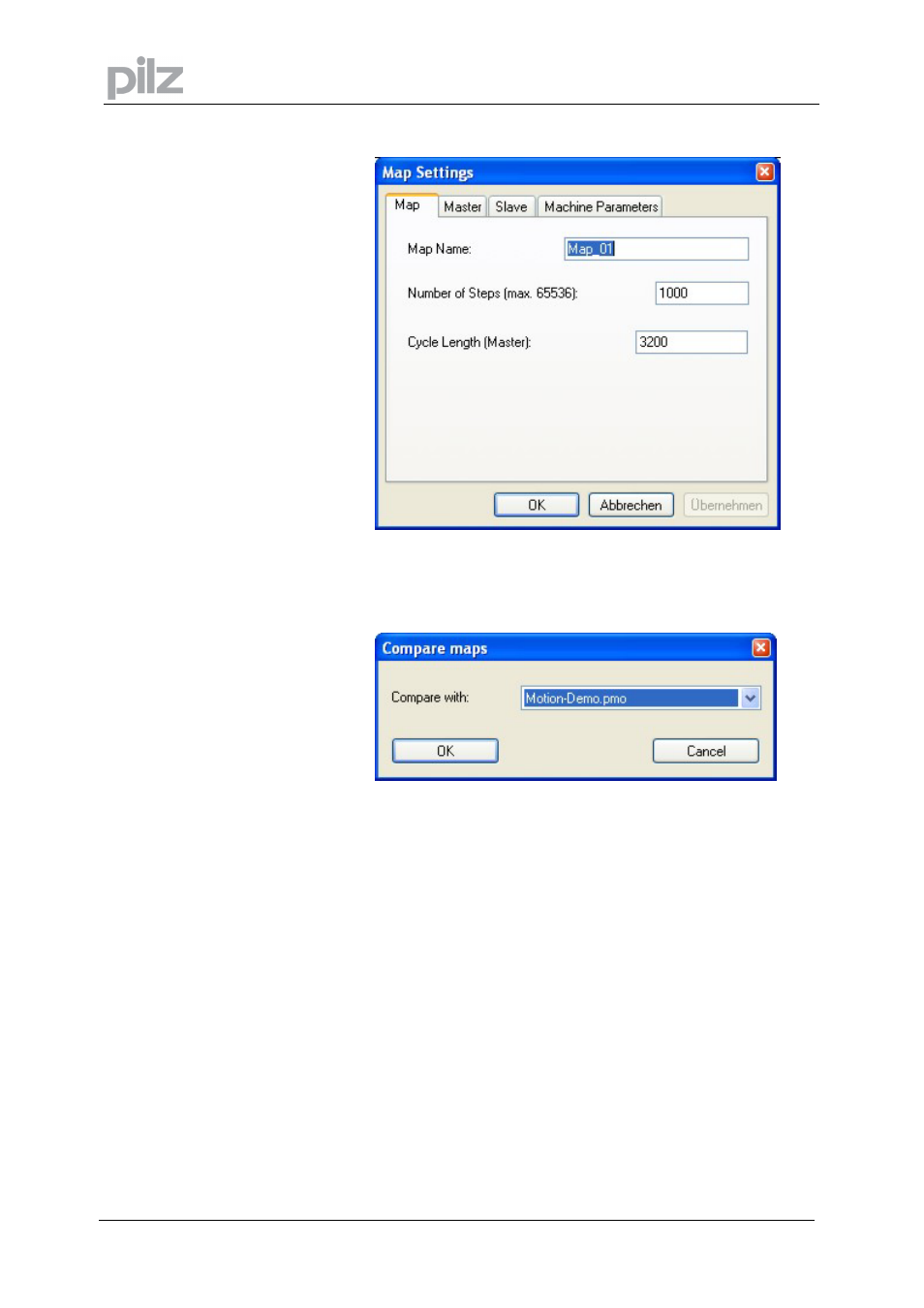

Map Settings Opens a dialogue box, where you can configure the map shape
settings.
Map variables
Shows a dialogue box in which you can edit the map variables.
Colours and Lines Adjustment of colours and lines for the motion view.
Show comparison map Show/Hide a further map in the motion view. Select a map in the
following dialog to compare it to the current map.
7.2.3 Menu "View"
Position Shows or hides the view „Position“.
Velocity Shows or hides the view „Velocity“.
Acceleration Shows or hides the view „Acceleration“.
Jerk Shows or hides the view „Jerk“.
Toolbar Shows or hides the toolbar.
Status bar Shows or hides the status bar.
