OPGP-34-A4B3RA
DELTA ELECTRONICS, INC.
6 Revision:
S2
12/26/2006
www.deltaww.com

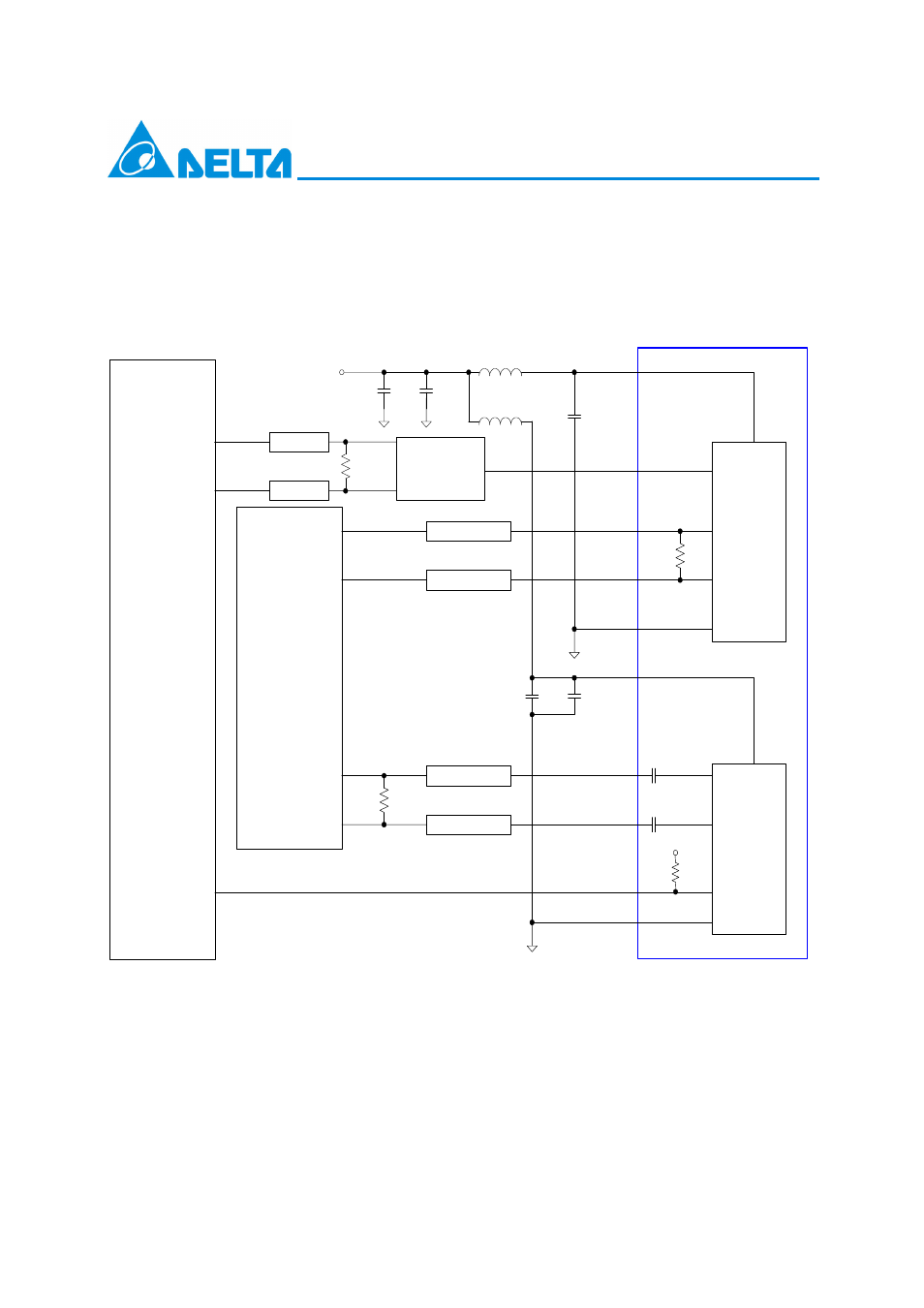

8. Recommended Interface Circuit
Transmitter
100ohm
9. TD(p)
10. TD(n)
8. BiasCNT
6. VccT
7. VeeT
Receiver
100nF
100nF
1. VeeR
5. RD(p)
4. RD(n)
3. SD
2. VccR
100nF
10uF
100nF
10uF
100nF
1uH
1uH
3.3V
Protocol IC
SerDes IC
100ohm
SD
DELTA GPON ONU Module
Z0=50ohm
Z0=50ohm
Z0=50ohm
Z0=50ohm
RES
VccR
* RES is the internal 4.7K to 10K Ohms pull-up resistor.
Laser ON_P
Laser ON_N
Z0=50ohm
Z0=50ohm
100ohm
LVPECL/LVTTL
Translator
MC100LVELT23
