Using Source Mode
33
TEST DC PWR
+
+
–
–
+
Color depends
on type of TC
V mA
LOOP
V mA
TC
RTD
˚
C
˚
F
Hz
100%
25%
25%
RECALL
ZERO
MEAS
SOURCE
STORE
SETUP
0%
MULTIFUNCTION CALIBRATOR
725
TC
TC Miniplug
sh20f.eps

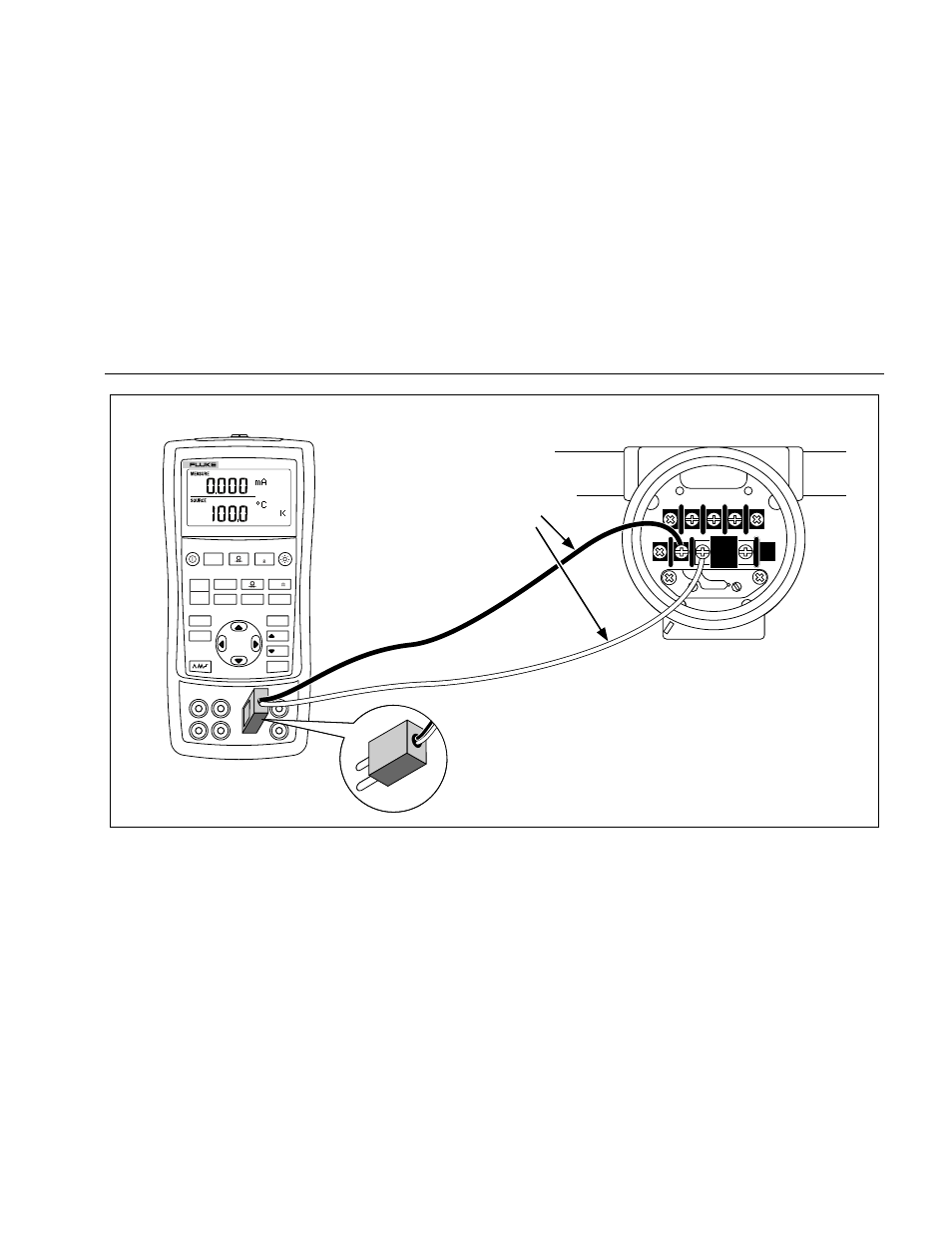

Figure 16. Connections for Simulating a Thermocouple
