725 users manual, Figure 13. connections for measuring pressure – Fluke 725 User Manual

Page 38

background image

725
Users Manual

28

Differential

Module

Tank

H

L

Isolation

Valve

Gage

Module

V mA

LOOP

V mA

TC

RTD

˚

C

˚

F

Hz

100%

25%

25%

RECALL

ZERO

MEAS

SOURCE

STORE

SETUP

0%

MULTIFUNCTION CALIBRATOR

725

sh37f.eps

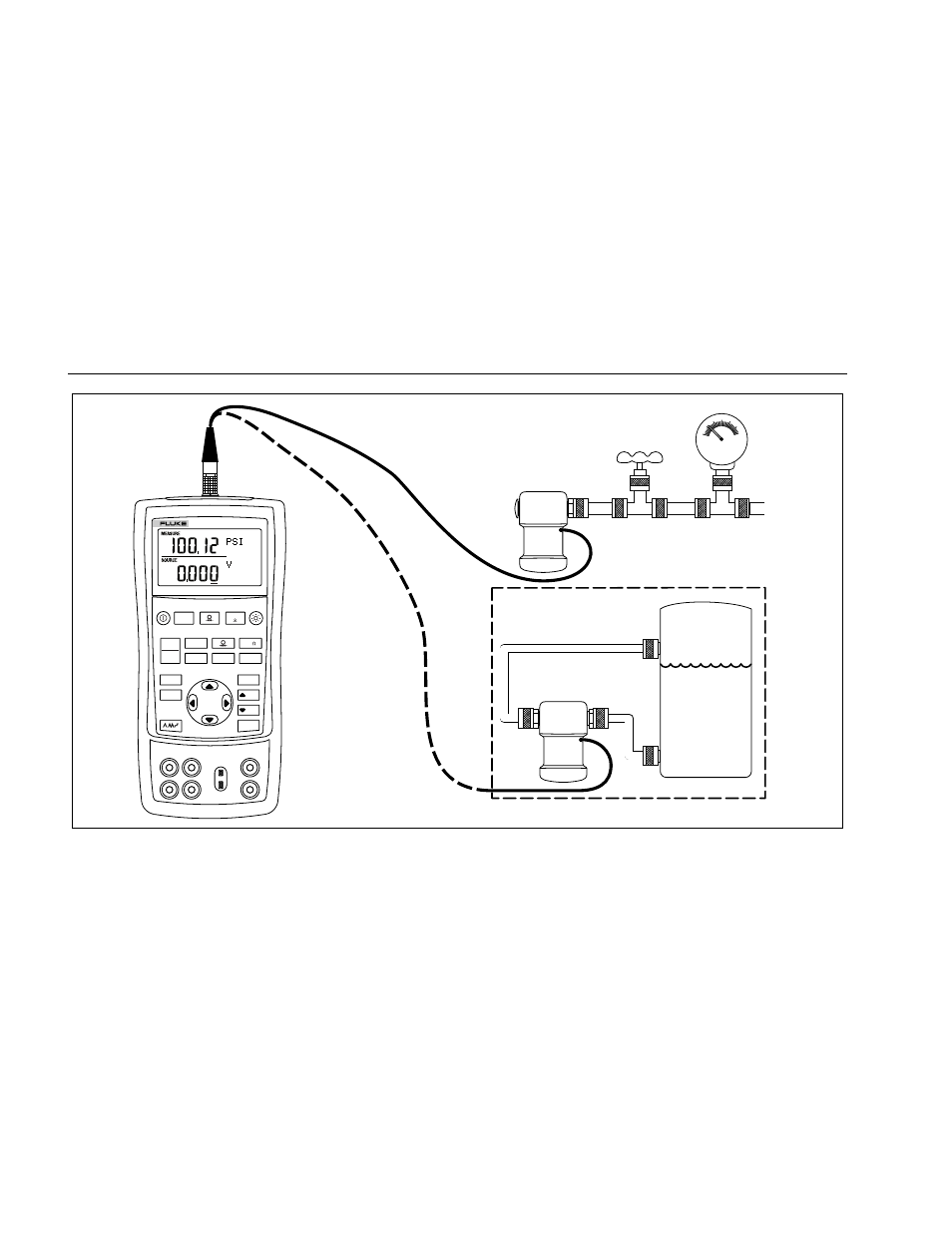

Figure 13. Connections for Measuring Pressure
