Using Measure Mode
19
Measuring Electrical Parameters (Lower Display)
To measure the electrical parameters using the lower
display, proceed as follows:
1. Connect the calibrator as shown in Figure 9.
2. If necessary, press
M
for MEASURE mode (lower
display)
3. Press
V
for dc voltage or current, or
F
for
frequency or resistance.
V mA
LOOP
V mA
TC
RTD
˚
C
˚
F
Hz
100%
25%
25%
RECALL
ZERO
MEAS
SOURCE
STORE
SETUP
0%
MULTIFUNCTION CALIBRATOR
725
sh43f.eps

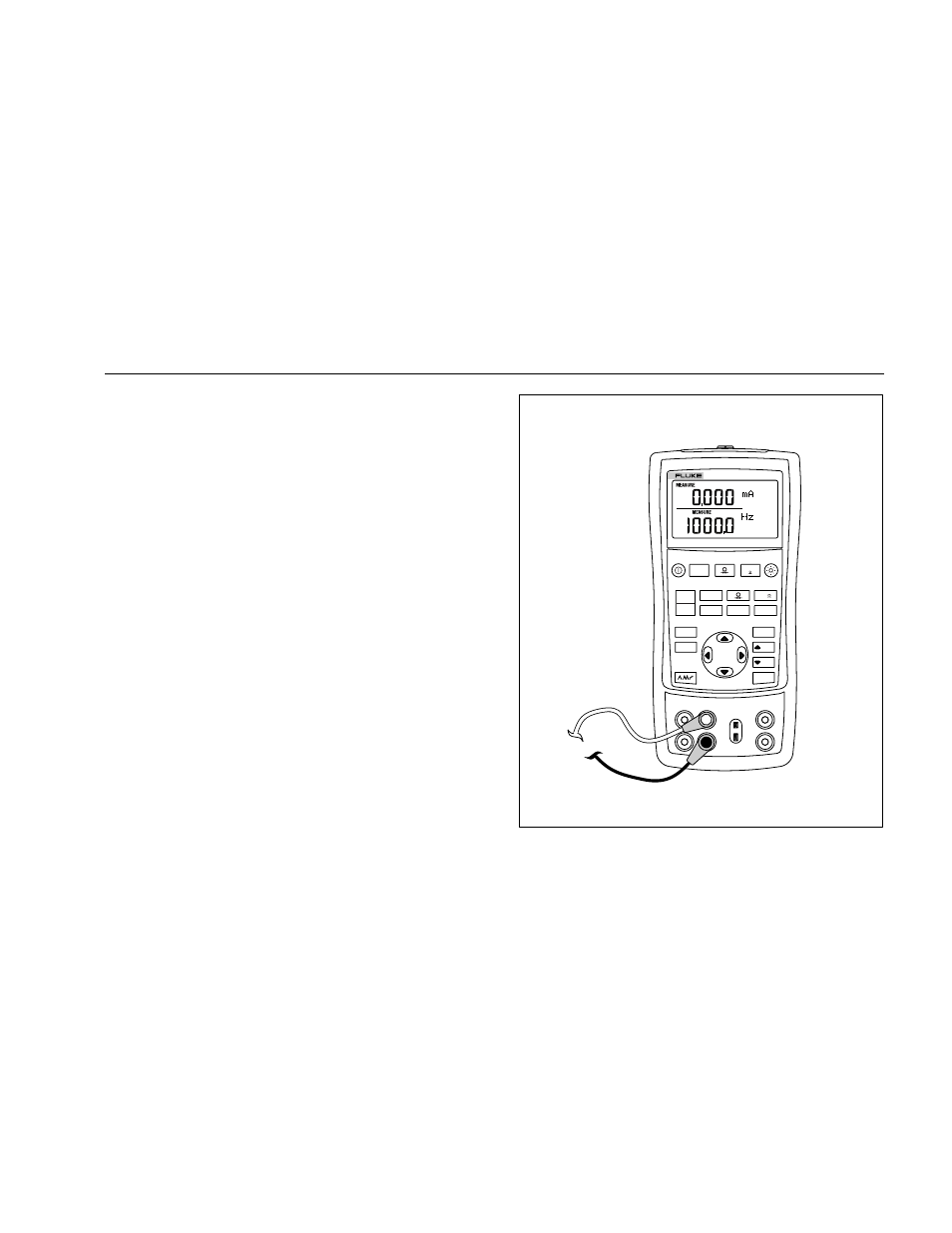

Figure 9. Measuring Electrical Parameters
