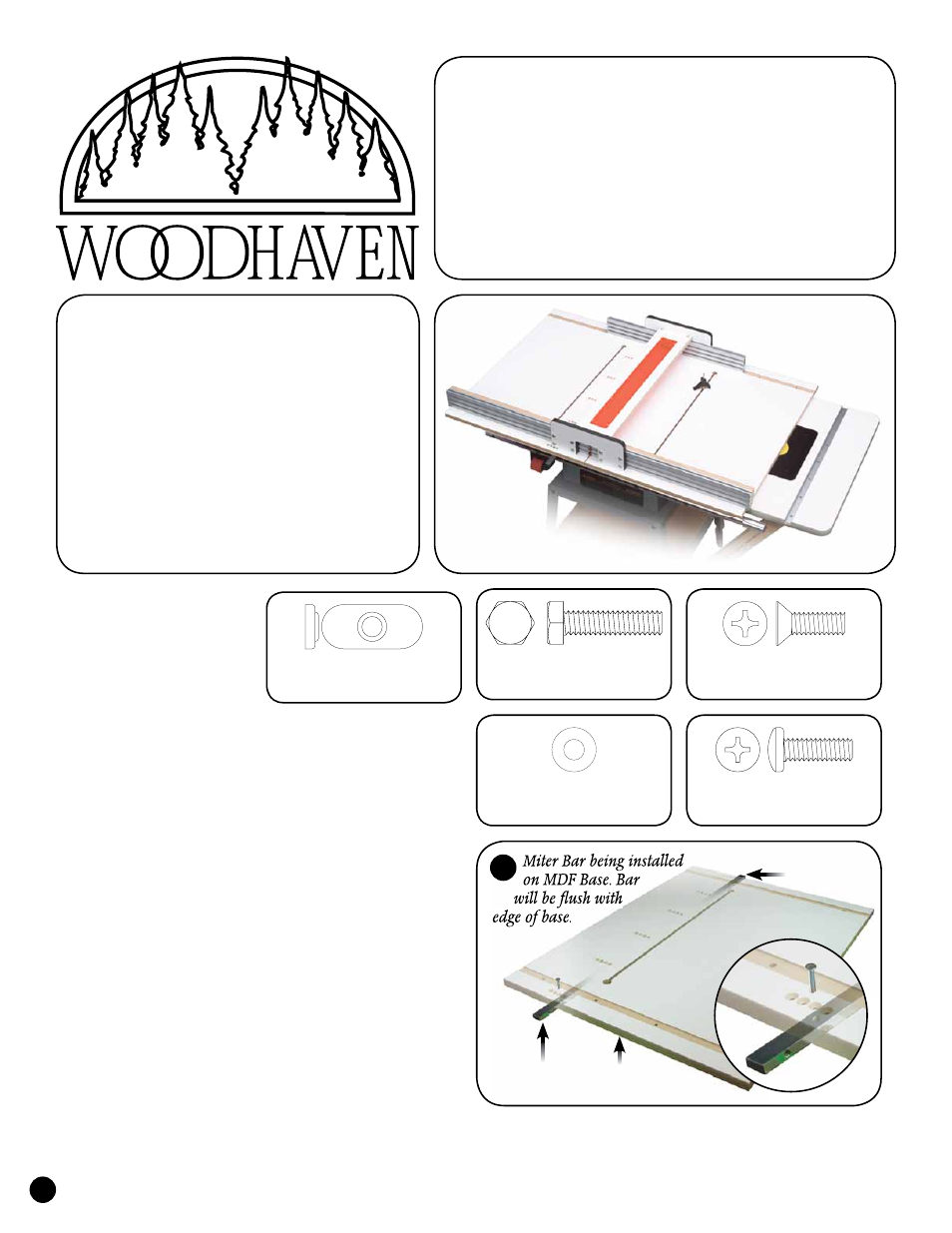

Woodhaven 4951: Large Cut-Off Sled User Manual

4951 large cut-off sled, Please read carefully, Parts list

Miter Bar being installed
on MDF Base. Bar

will be fl ush with

edge of base.

BEFORE BEGINNING

Identify and verify that

you have all the parts listed
and read thru the instructions
at least once before beginning.
All set-up work should be done
with the saw disconnected from
the power and the saw blade
lowered below the table. This unit is designed for table saws with
at least a 27" deep table. Do not attempt to use on table saws with
smaller tables. If necessary, add additional supports to your saw
to prevent the saw from tipping. This unit relies on the miter slot
of your saw being parallel to the saw blade for it to work properly.
If this is not the case, make those adjustments to your saw first.

MOUNT THE MITER BARS TO THE MDF BASE

Prepare the Miter Bars according to the instructions

that come with them, using the hardware included.

The Cut-Off Sled can be used with the miter bars in

either miter slot. We suggest you mount it in the miter slot you
normally use your miter gauge in. Place the miter bars (4918B)
with the countersunk holes facing down, in the miter slot. There
are mounting holes for the miter bars in one of the MDF bases
(4951D). Align the mounting holes in the MDF base with the
threaded holes in the bars. Position the base over the bars so
that it overhangs the cutting path of the saw blade by 1/2"
or less. Attach the bars to the base with the 1" screws. The
bars will overhang the base approximately 2" at each end. Re-
check the fit of the bar/base assembly, making sure it slides
smoothly, readjusting the plugs as necessary. See fig. 1.

Parts List:

Please identify and verify that you have all of the

hardware shown below prior to assembly.

Part Description

Quantity

4951D MDF

Base

. . . . . . . . . . . . . . . . . . . . . . . . . 2

4918B

17-3/4" Miter Bar . . . . . . . . . . . . . . . . . . 2

4951E

Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

4951B

Brace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

4424

24" Ultra Track . . . . . . . . . . . . . . . . . . . . 2

4412

12" Ultra Track . . . . . . . . . . . . . . . . . . . . 2

4951C

24" Sub-Fence . . . . . . . . . . . . . . . . . . . . . 2

4951S

Straight Stop . . . . . . . . . . . . . . . . . . . . . . 1

3724R/L

24" Left & Right Tapes . . . . . . . . . . . . . 1

4951

Large Cut-Off Sled

Please Read Carefully!

Part# Description Qty.
5771B 3/4"

Screw 4

Part# Description Qty.
HB030 1"

Bolt

Part# Description Qty.
5760B Oval

Nut

Part# Description Qty.
WB002 Washer

Part# Description Qty.
MF010 3/4"

Screw 12

4918B

4951D

4918B
