Woodhaven 3260-3290: Large Circle Jigs - Manual (Page 3)

2

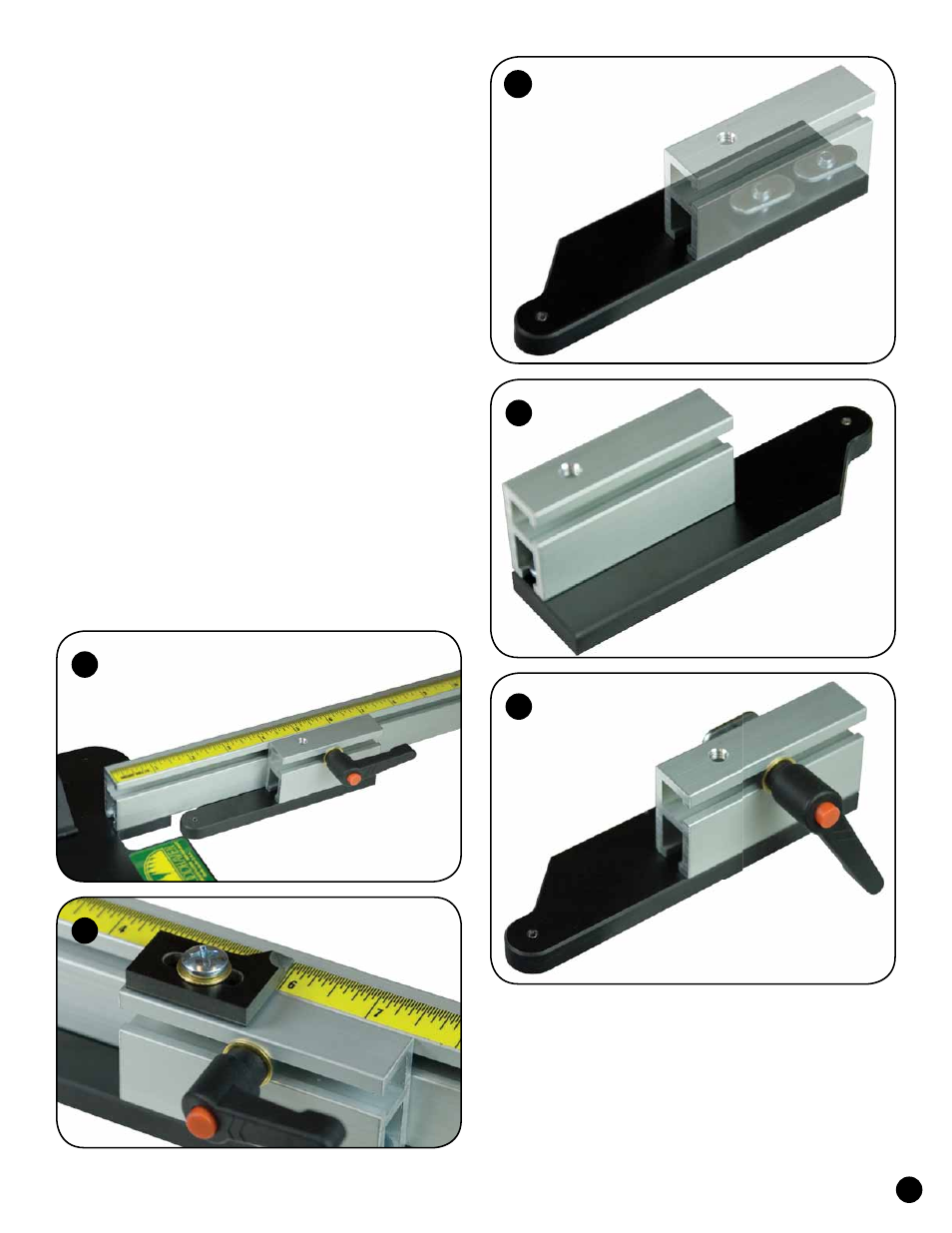

ASSEMBLY FOR CIRCLES OVER 10" IN DIAMETER
If you’re cutting circles over 10 in diameter, insert two 3/4"
screws (MF010) thru the countersunk holes in the Pivot (3260A) and
start oval nuts (5760B) on the ends of the screws. Slide the Bracket
(3260C) on the oval nuts, positioning it even with the end of the
Pivot and flush with the edge, then tighten the screws. See fig. 7.
ROTATE PIVOT TO INCREASE CAPACITY
The capacities given are figured with a 1/2" bit. With the Pivot
in the position shown in fig. 6 & 7, the 3260’s maximum capacity
is 45", the 3270’s maximum capacity is 93", the 3280’s maximum
capacity is 141" and the 3290’s maximum capacity is 189".
The Pivot may be rotated on the Bracket 180º to increase
the maximum capacity of the Circle Jig by 16", but the
Cursor will not read correctly in this position. See fig 8.
ADDITIONAL ASSEMBLY
Install a washer (WB002) on the stud of the ratchet
handle (5863). Insert the stud of the ratchet handle thru
the slot, then the hole, in the Bracket (3260C). Start an
oval nut (5760B) on the end of the stud. See fig. 11.
Slide the Double Track/Router Plate on to the oval
nut. Attach the tape measure (3724L or 3748L) to the
top front edge of the Double Track. See fig. 10.
Lay the nylon washer (WN001) over the threaded hole
in the top of the Bracket. Attach the Cursor (3260D) to the
Bracket (with the nylon washer between them) using the
1/2" screw (5770B) and a washer (WB002). See fig. 11.
7
8
9
10
11
