Vortech 1986-1993 Ford 5.0 Mustang User Manual

Page 21

P/N: 4FA020-010

16APR09 v4.1(86-93 5.0 Mus (4FA v4.1))

8. SMOG PUMP HOSES

A. Separate the short hose and bent hose from the

air control valve and place the shorter hose on

the diverter valve (the valve closest to the firewall)

as shown.

B. Connect the air control valve to the short hose.
C. Trim approximately 1-1/2", or as necessary, off

the longer straight portion of the bent hose for

proper fit.

D. Secure the hose as shown with the stock

clamps.

E. It may be necessary to reroute the vacuum control

line after the supercharger is in place.

E. Attach the Vortech alternator brace between

the boss on the smog pump and alternator

with the 3/8-16 x 1" bolts. On 1992 and later

Mustangs, it may be necessary to drill and

tap the "blanked" hole in the smog pump.

To accomplish this use an R size bit and a

3/8-16 size tap.

F. Tighten all fasteners in the bracket/accessory

assembly.

G. Lower the entire assembly into position and

start all four fasteners that hold it to the

engine. Tighten all fasteners in a progressive

manner.

h. Reconnect alternator wires and use a tie

wrap to secure the wires.

7. MAIN BRACKET ASSEMBLY (cont'd.)

1986-93 RENEGADE

5.0L KIT ONLY

NOTE: Due to the location of the Vortech

Mondo bypass valve, removal of

the air injection hose assemblies

is required for proper bypass valve

installation. This modification is for

off-road use only. Disregard the fol-

lowing steps A thru E.

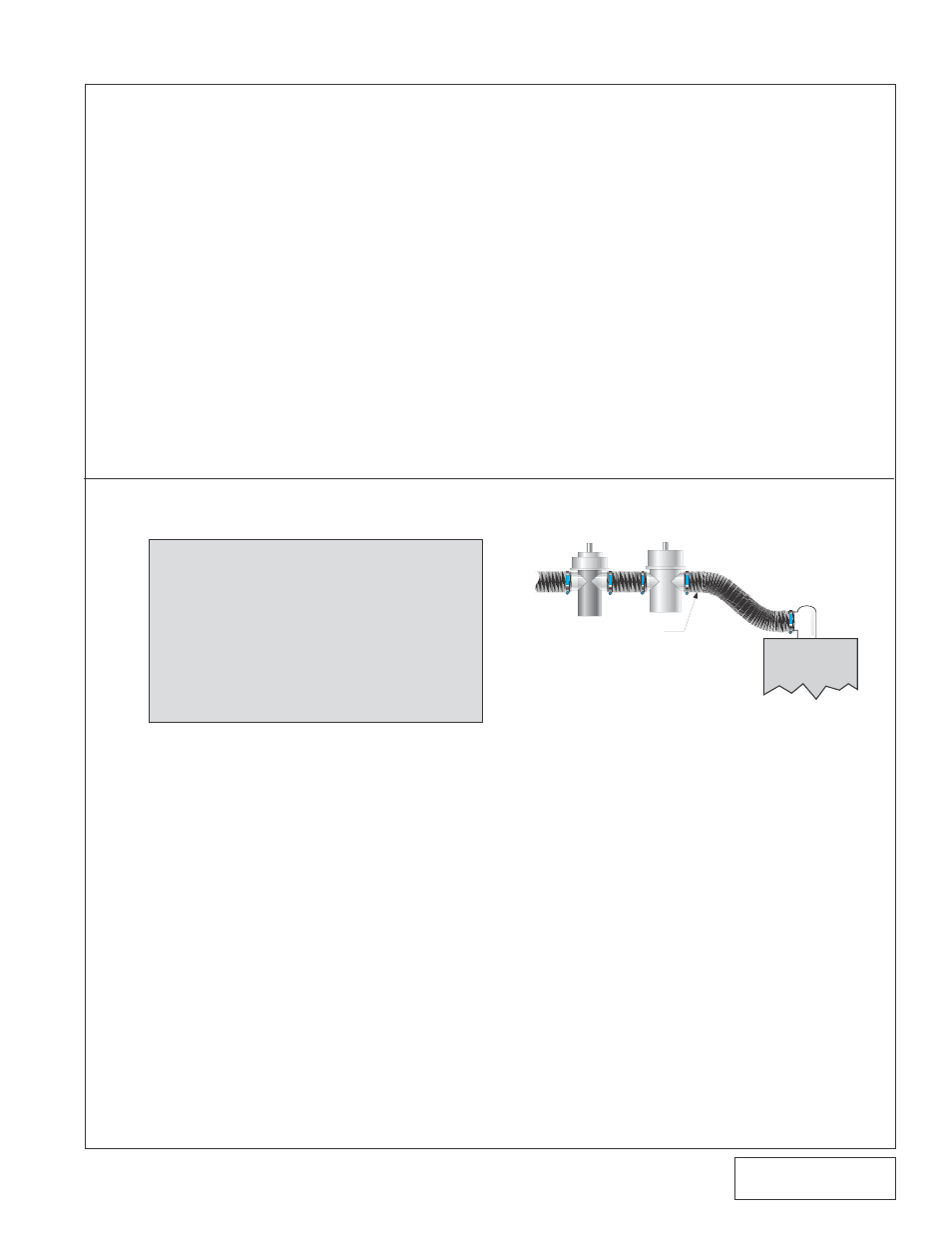

Fig. 8-a

SMOG PUMP

DIVERTER VALVE

ALVE

AIR CONTROL V

SHORTEN THIS HOSE 1-1/2”
