Vortech 1986-1993 Ford 5.0 Mustang - Manual (Page 19)

P/N: 4FA020-010
© 2009 Vortech Engineering, Inc.
All Rights Reserved, Intl. Copr. Secured
16APR09 v4.1(86-93 5.0 Mus (4FA v4.1))
7
87
87a
30
85 86
FUSE BOX
SPARE TIRE WELL
ROUTE RED POWER LEAD FROM FUSE BOX UNDER CARPET ON
DRIVER SIDE WITH STOCK WIRE HARNESS. TAKE CARE TO A VOID
SHARP EDGES AND NOT TO DAMAGE WIRE INSULATION.
MOUNT RELAY IN RIGHT REAR CORNER OF SPARE TIRE WELL.
MAKE SURE WIRES ARE CONNECTED AS PER RELAY SCHEMATIC
PROVIDE A GOOD GROUND CONNECTION FOR BOTH THE PUMP
AND RELAY THAT IS FREE OF RUST OR PAINT.
(+) T-REXª FUEL PUMP
GROUND
FUSE BOX AT CIGAR LIGHTER TAP
(FUSED SIDE)
RED/PURPLE WIRE IN STOCK HARNESS
(Check with test light. When key is turned to “ON”
position, test light should illuminate for 2-3 seconds
& then should turn “OFF” automatically
.)
RELAY WIRING SCHEMATIC
SECURE WIRES WITH ADHESIVE
ANCHORS AND TIE WRAPS
20A INLINE
FUSE
PUMP IS MOUNTED BELOW TIRE WELL
(UNDER CAR)
SCHEMATIC (H.O., S.H.O. and Cobra systems only)

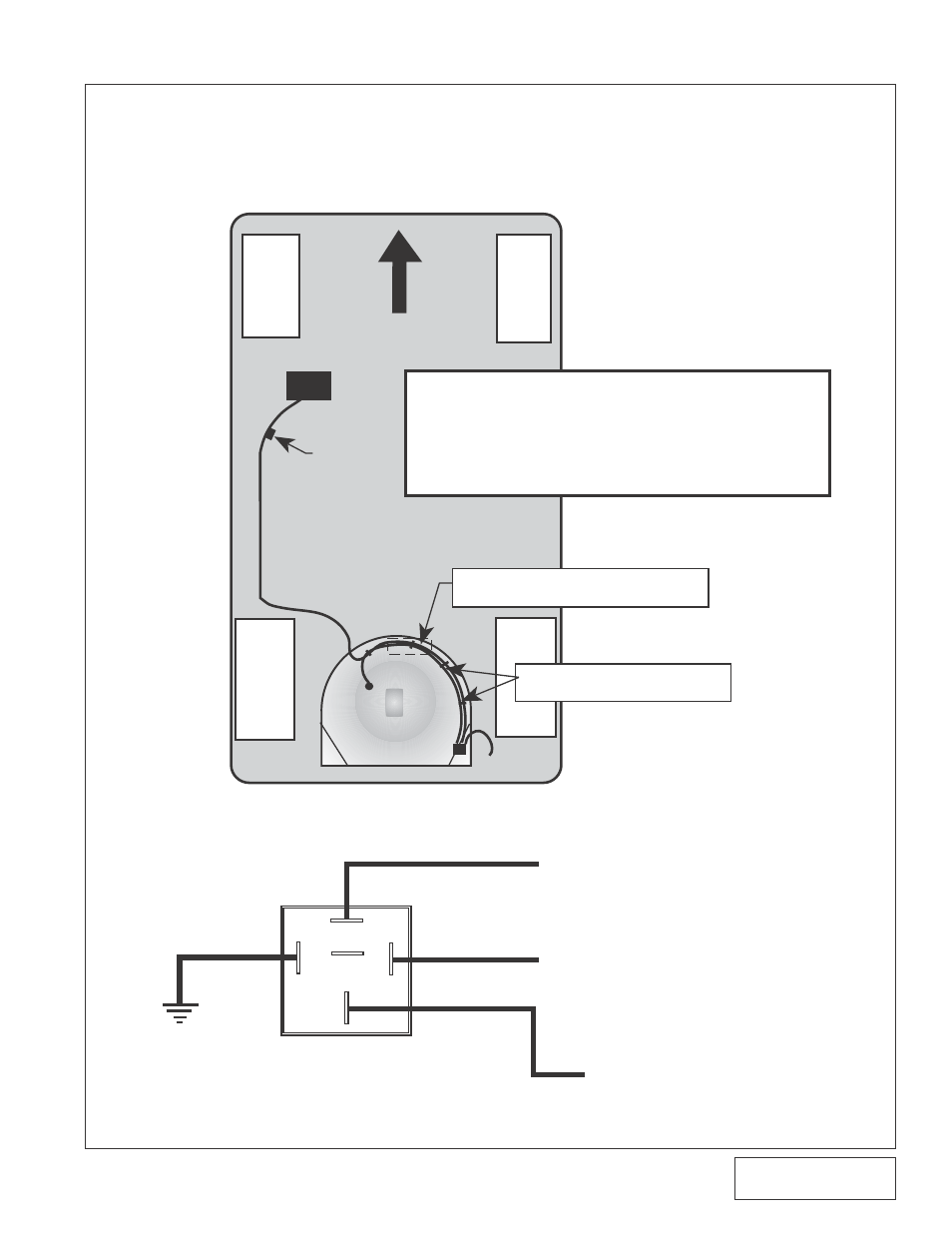

VORTECH T-REX WIRING AND PLACEMENT GUIDE
Fig. 6-a
Fig. 6-b
