6. T-REX

FUEL PUMP (H.O., S.H.O. and Cobra Systems Only)

T-REX FUEL PUMP ASSEMBLY

NOTE: Make sure that the fuel level is below 1/4 tank for

easier installation.

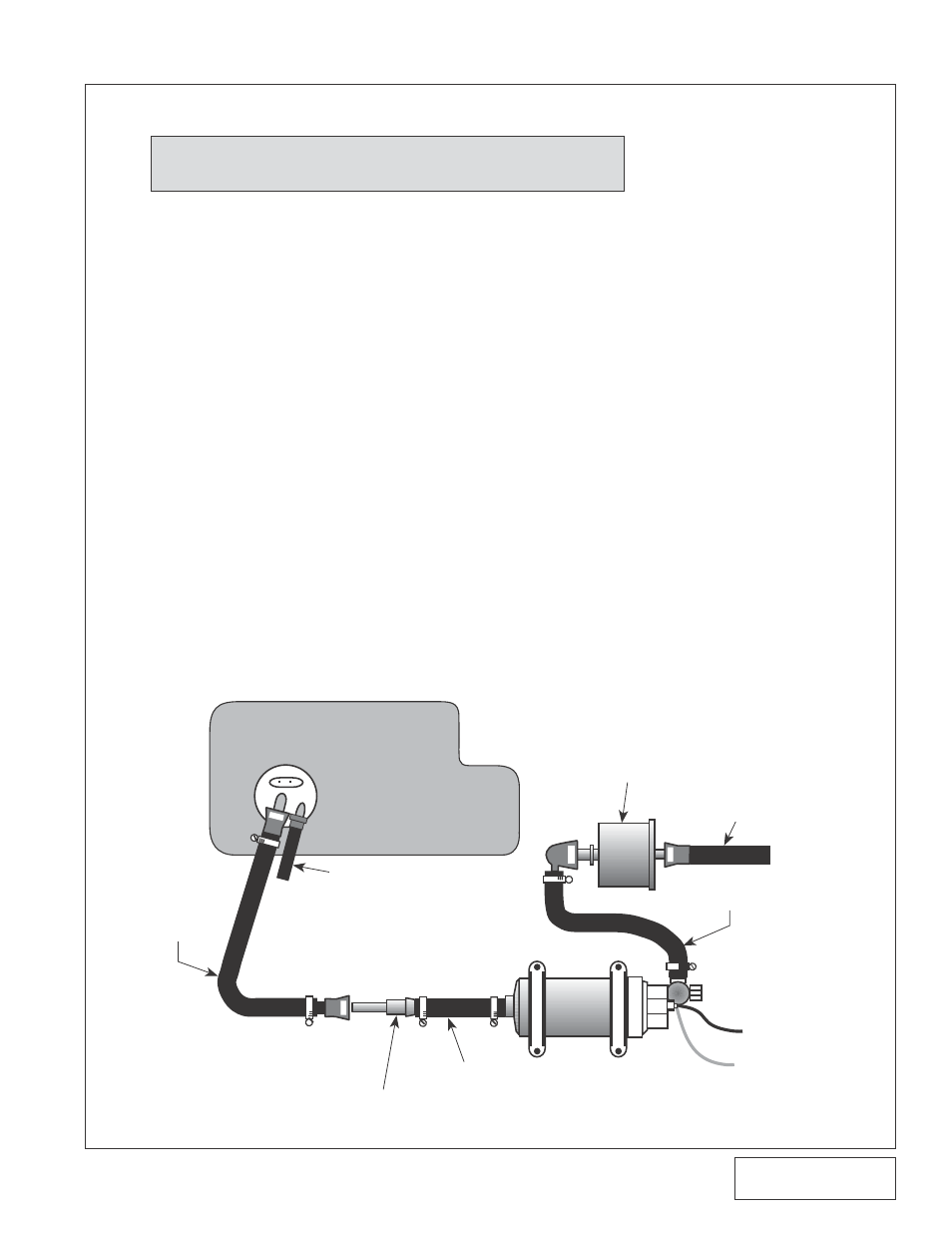

Fig. 6-a

A. Remove spare tire, etc. from trunk.
B. Trim "cut-out" from template and place over spare tire hold-

down. Centerpunch and drill holes 3/16" diameter.

C. Jack up the rear of the car and support with jack stands.
D. Drop down the fuel tank by loosening the filler neck and the

two tank mounting straps. (There is no need to disconnect

any of the wiring or to completely remove the tank.)

E. Disconnect and remove the original rubber fuel line running

from the tank to the fuel filter. Remove the 90° plastic fitting

from the feed hose and set aside.

F. Attach one end of the supplied fuel line with connections to

the fuel tank pickup (see below). Route the hose around to

the front of the tank in the factory manner.

G. Place the Vortech supplied fuel adapter fitting, located in the

T-Rex pump inlet hose, into the new feed line coming from

the tank. Make sure that the white plastic retainer clip is in

place.

h. Reinstall the fuel tank and filler tube. Take care to route the

fuel lines and vent lines away from exhaust pipes and provide

room so that lines are not crushed between the floor pan

and the tank.

ADAPTER FITTING

3/8” x 6” FUEL HOSE

RELAY #87

GROUND

5/16” x 24” FUEL HOSE

EXISITING FUEL LINE

STOCK FUEL FILTER

RETURN

REPLACE THE

FACTORY FEED

LINE WITH THE

VORTECH

SUPPLIED

PIECE

FUEL

TANK
