1
Chapter 1: Overview airFiber ® AF5/AF5U User Guide
Ubiquiti Networks, Inc.
airFiber Configuration Interface
System Requirements
• Microsoft Windows Vista, Windows 7, Windows 8, Linux,
or Mac OS X
• Java Runtime Environment 1.6 (or above)
• Web Browser: Mozilla Firefox, Apple Safari, Google
Chrome, or Microsoft Internet Explorer 8 (or above)

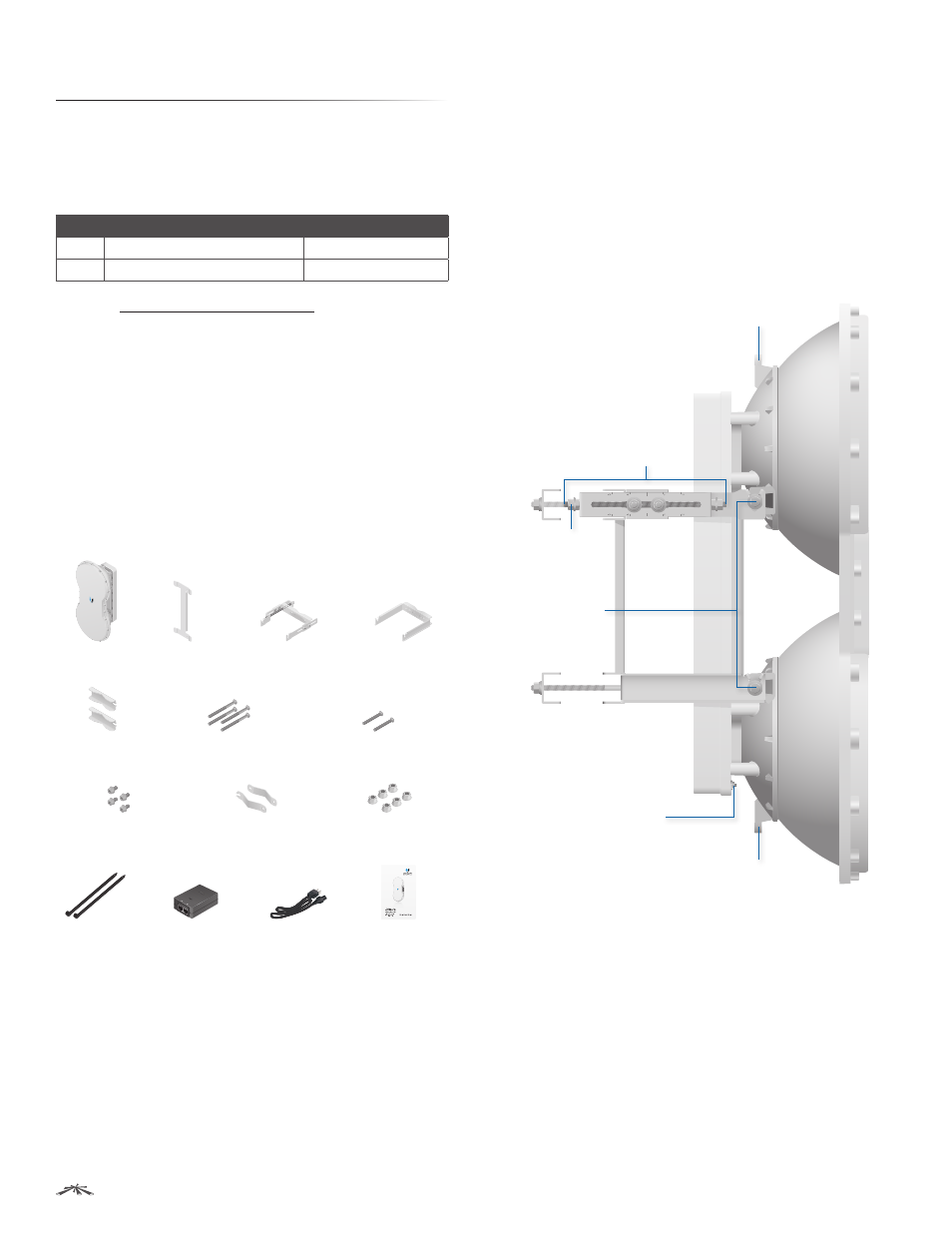

Hardware Overview
Side
Grounding Point
Elevation Rod
Hex Nut
to adjust
Elevation Rod
Pre-Installed
M10 x25
Flanged Bolts
Lanyard Attachment
Loop
Lanyard Attachment
Loop
Assembled View
Chapter 1: Overview
Introduction
Thank you for purchasing the Ubiquiti Networks®
airFiber® 5 GHz Full Duplex Point-to-Point Gigabit Radio.
This User Guide is for use with the following models:
Model Description Operating Frequency*
AF-5 Supports mid-band frequencies 5470 - 5950 MHz
AF-5U Supports high-band frequencies 5725 - 6200 MHz
* Refer to “Specifications” on page 40 for more
information.
The mid-band model, AF-5, features the popular mid-band
frequencies, which are freely used in many parts of
the world. The high-band model, AF-5U, which can
operate in the 5.7 - 6.2 GHz bands, has robust filtering to
enable co-location with devices operating in the lower 5
GHz bands while allowing operation at a higher output
power in many areas of the world.
The same instructions apply to both models, and the User
Guide will refer to both models as the airFiber AF-5.
Package Contents
airFiber
AF-5/AF-5U
I-Bracket Upper Mount Bracket
with Elevation Rod
Lower Mount
Bracket
Pole Clamps
(Qty. 2)
M10x150 Carriage Bolts
(Qty. 4)
M10x100 Carriage Bolts
(Qty. 2)
M8x14 Serrated Flange Bolts
(Qty. 4)
Azimuth Support Brackets
(Qty. 2)
M10 Serrated Flange Nuts
(Qty. 6)
Cable Ties
(Qty. 2)
GigE PoE Adapter
(50V, 1.2A)
Power Cord Quick Start Guide
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and
earth grounding must be used as conditions of product warranty. TOUGHCable ™ is designed for
outdoor installations. It is the customer’s responsibility to follow local country regulations, including
operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS)
requirements.
