11
Chapter 2: Installation airFiber ® AF5/AF5U User Guide
Ubiquiti Networks, Inc.

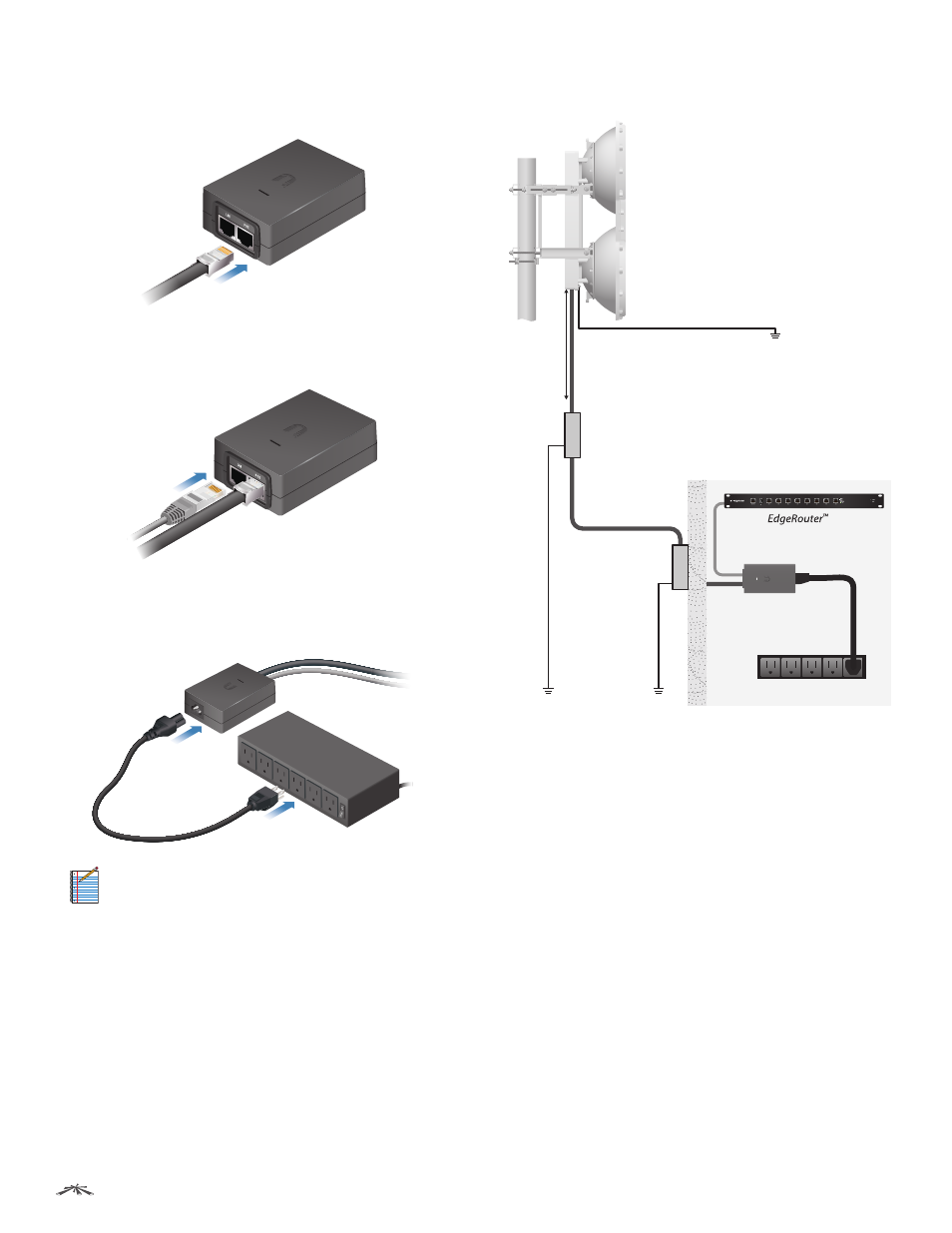

3. Connect the other end of the Ethernet cable from the
Data port to the Ethernet port labeled POE on the GigE
PoE Adapter.
4. Connect an Ethernet cable from your network to the
Ethernet port labeled LAN on the GigE PoE Adapter.
5. Connect the Power Cord to the power port on the GigE
PoE Adapter. Connect the other end of the Power Cord
to a power source.
Note: For added protection, we recommend
installing two GigE PoE surge protectors. Install
the first surge protector within one meter of the
airFiber Data port, and install the second surge
protector at the ingress point of the location
housing the wired network equipment.
Below is a diagram of a finished installation with
recommended surge protectors installed.
Ground to Pole, Tower,
or Grounding Block:
Max. 1 m from
Ground Bonding Point
M
ax. 1 m
GigE PoE Adapter
Power Source
Outdoor GigE PoE
Surge Protector
Outdoor GigE PoE
Surge Protector
