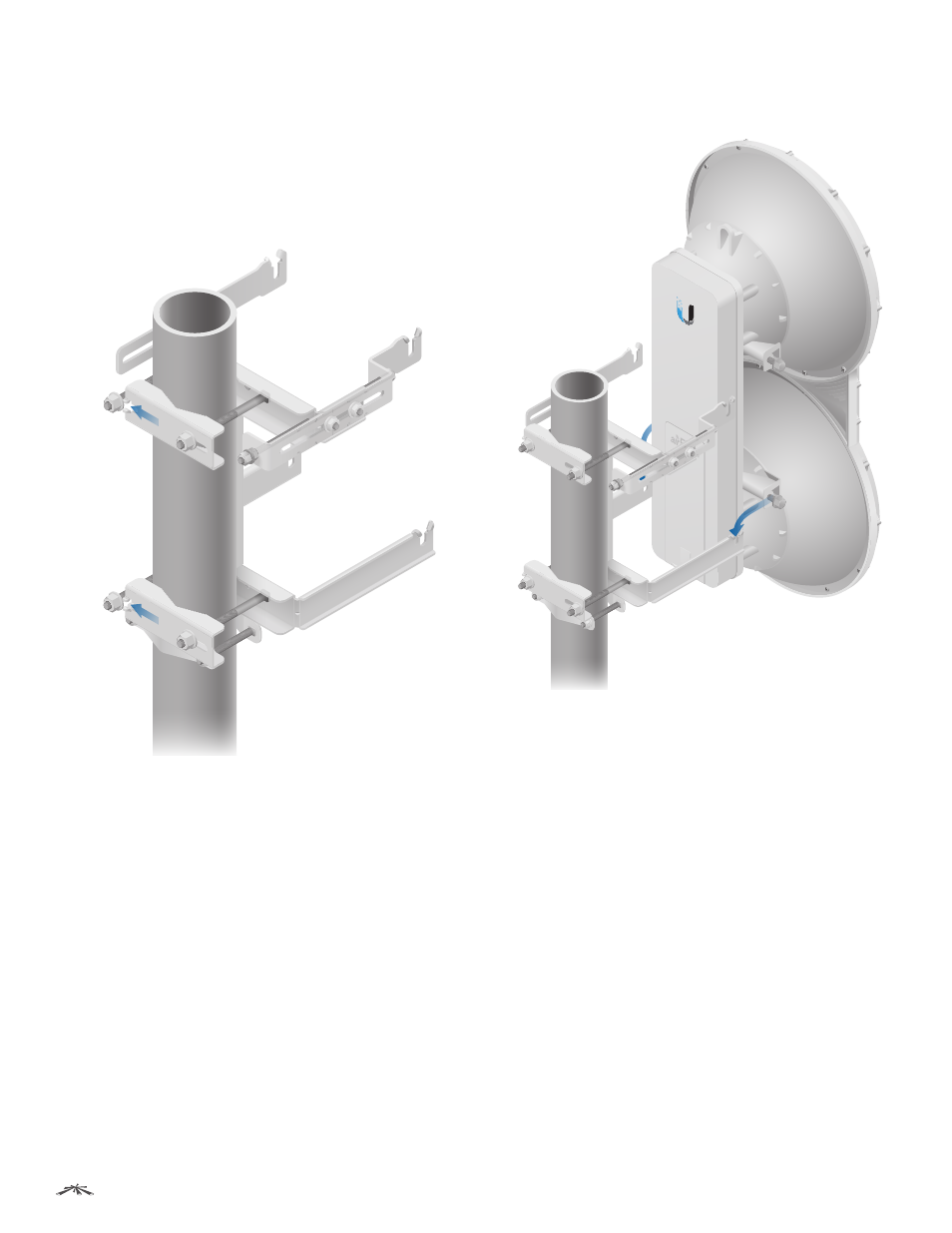

2. Attach the mounting assembly to a pole.
a. Orient the mounting assembly around the pole so it is
aimed in the direction of the other airFiber radio.
b. Slide the open slot of each Pole Clamp over the
corresponding M10x150 Carriage Bolt.
c. Tighten the M10 Serrated Flange Nuts of the M10x150
Carriage Bolts to secure the mounting assembly to the
pole.
3. Lift the airFiber radio and align the two lower
Pre-Installed M10x25 Flanged Bolts with the slots on the
Lower Mount Bracket. Seat the bolts in the slots.
