Chapter 2: Installation airFiber ® AF5/AF5U User Guide
Ubiquiti Networks, Inc.
Hardware Installation
The mounting hardware of the airFiber radio can be
pre-assembled before pole-mounting.

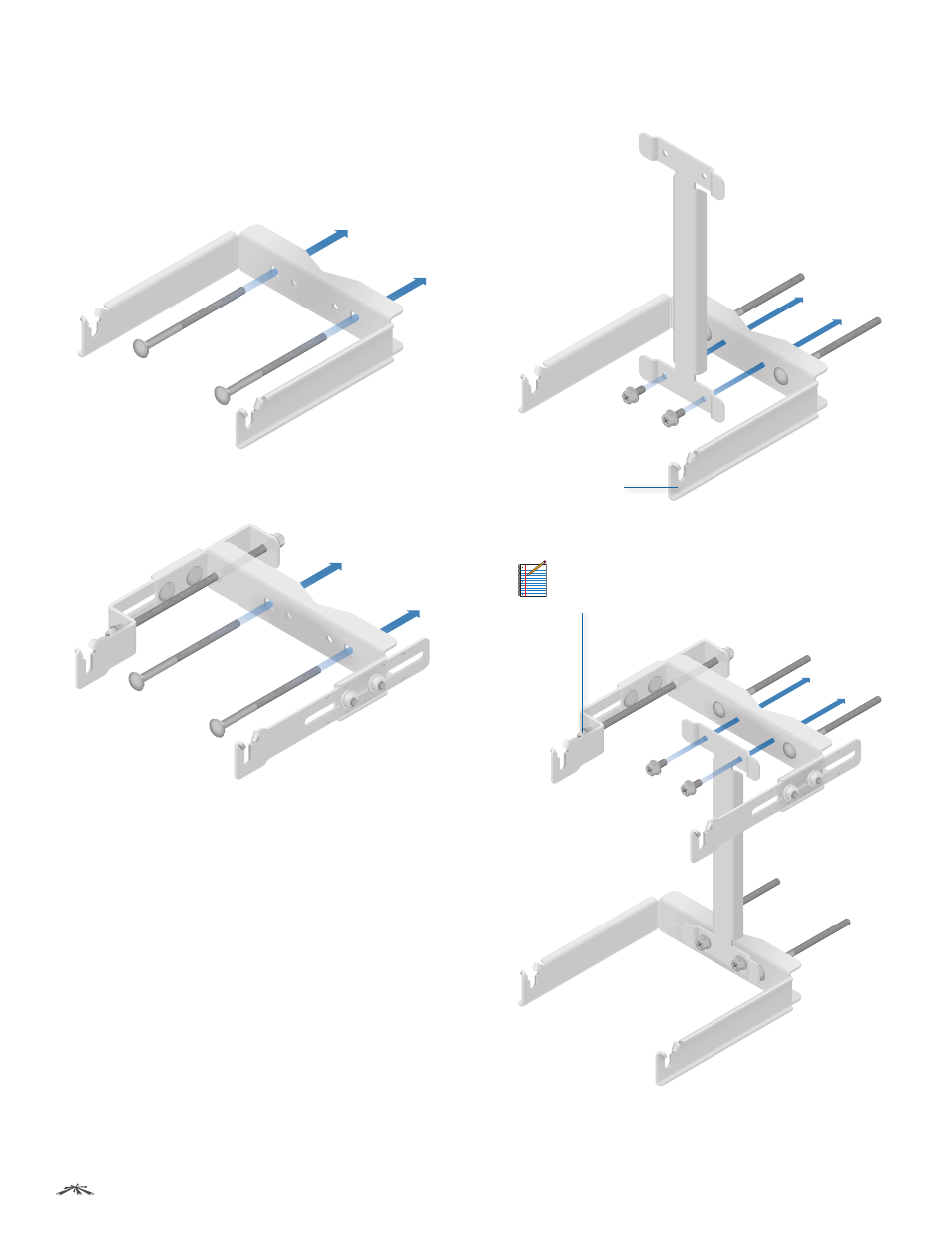

Mounting Hardware Pre-Assembly
1. Insert two M10x150 Carriage Bolts into the Lower Mount
Bracket.
2. Insert two M10x150 Carriage Bolts into the Upper Mount
Bracket with Elevation Rod.
3. Attach the Lower Mount Bracket to the I-Bracket using
two M8x14 Serrated Flange Bolts. Ensure that the slots
face up and securely tighten the bolts.
Proper slot orientation
4. Attach the Upper Mount Bracket with Elevation Rod to
the I-Bracket using two M8x14 Serrated Flange Bolts.
Note: Ensure that the orientation of the Upper
Mount Bracket matches the illustration below, with
the Elevation Rod on the correct side.
