power to the MULTIPAK’s microcontroller in the event of a power outage
(as long as the computer stays on).
d. The graph uses the values of 0%, 50%, 150%, and 600% for graphical
display of power outages, under-voltages, over-voltages, and surge
events, respectively; the actual voltages during these events are not
recorded and probably differ from the graphical values (0%, 50%, 150%,
and 600%) shown.
2.

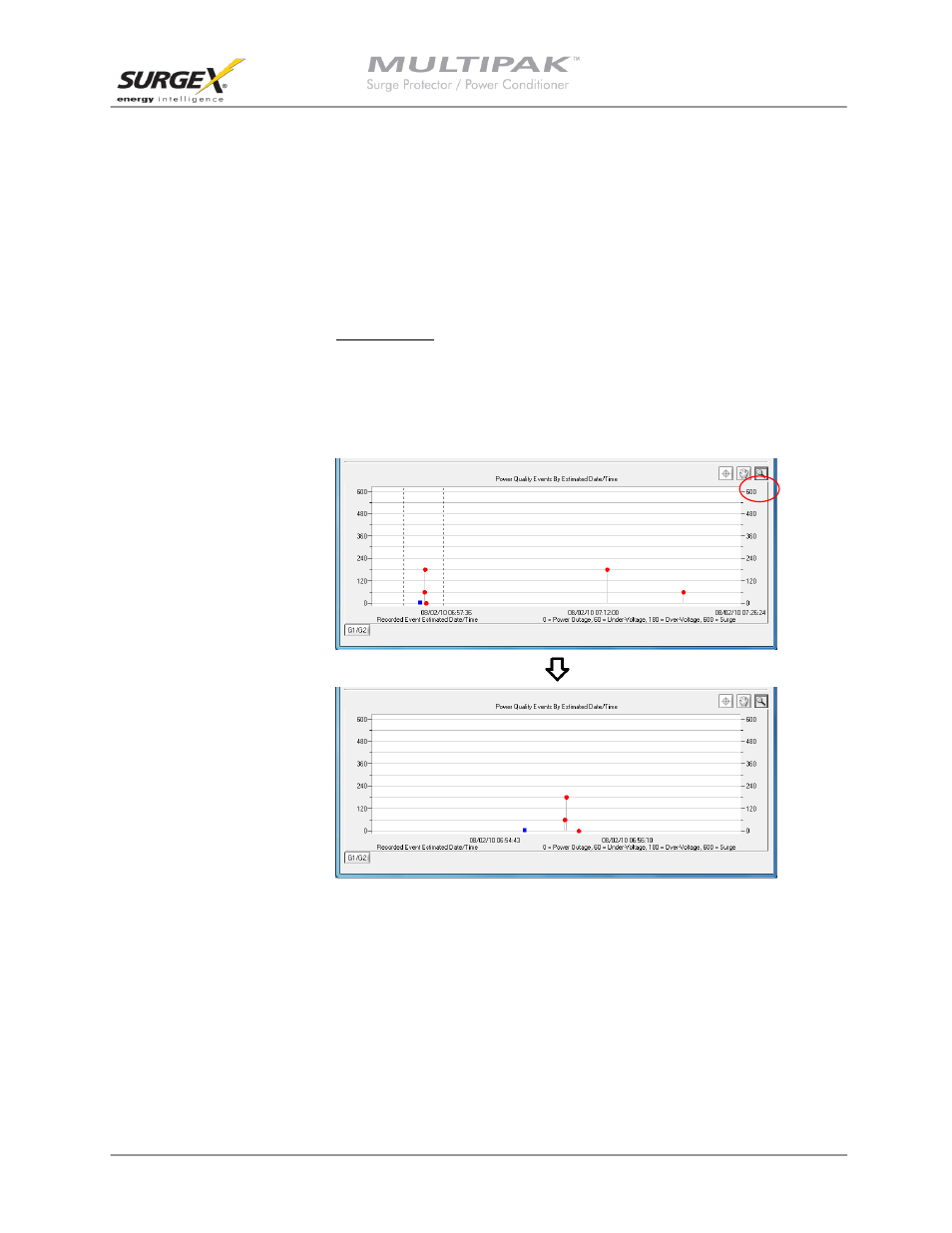

Zoom Function: The recorded power quality events graph may be zoomed along
the X (time) axis. To zoom in on an area of the graph, press the magnifying glass
icon, press and hold the left mouse button somewhere on the graph, then drag the
cursor either left or right to define the zoom selection, and then release the left
mouse button. The graph will now display the selected area. Press the
magnifying glass icon again to restore the original full display.
