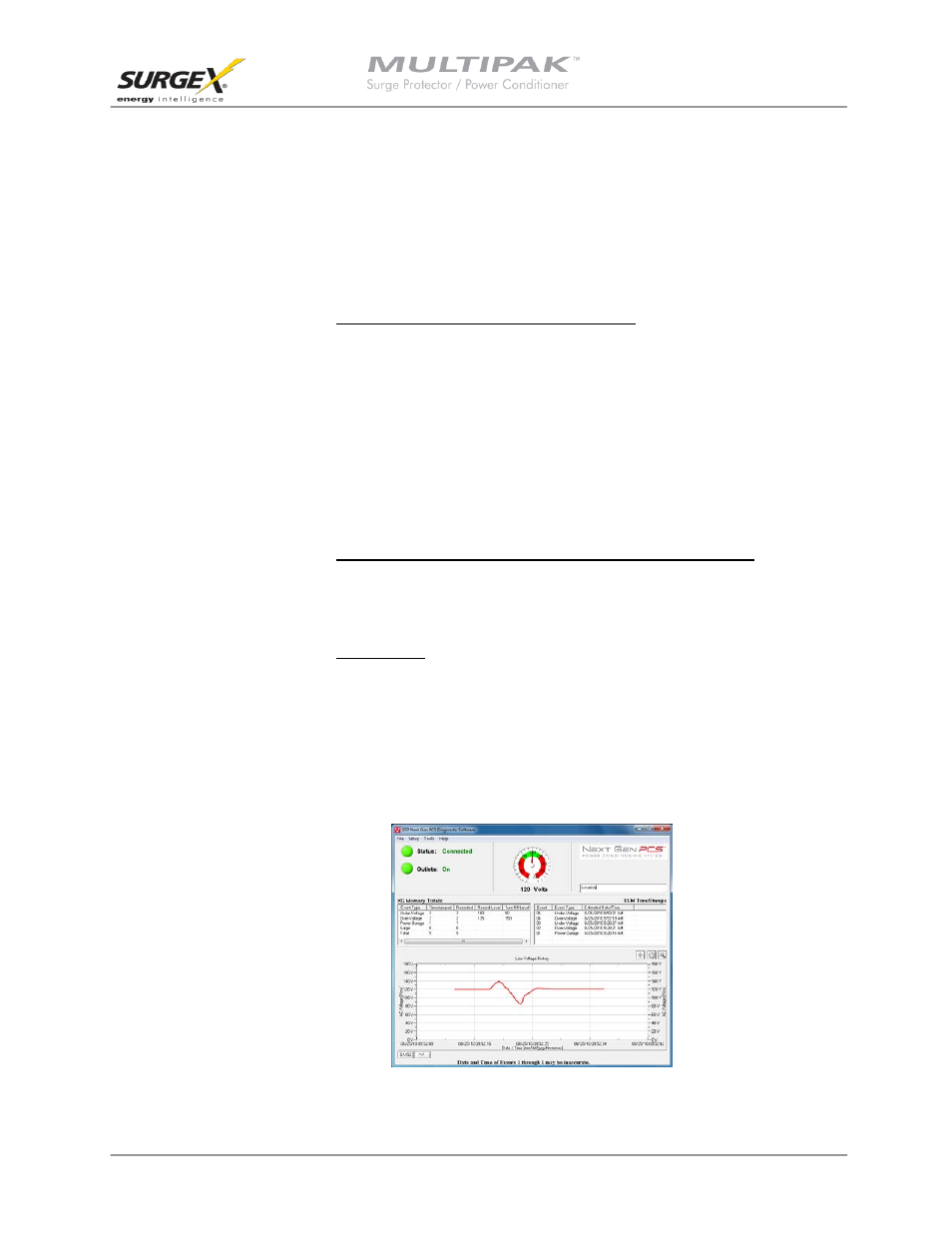

7. Enhanced Logging Mode

a. The Enhanced Logging Mode function of the MULTIPAK Diagnostic Software extends the logging

and monitoring capabilities of the MULTIPAK while a PC is connected.

b. Enhanced Logging Mode can be started by navigating to “Tools/Enhanced Logging Mode”.

i. The additional features available with the Enhanced Logging Mode are:

1. Logging of individual line voltage measurements

a. The magnitude of the line voltage of each data acquisition point is

recorded.

b. The date and time of each data acquisition point is recorded (based on

Windows system time).

c. Adjustable logging interval; The time interval choices are 1, 2, 4, 10, or

30 seconds between data acquisition points.

d. If the line voltage is changing rapidly (faster than 2V/0.2 seconds), new

data points will be recorded, regardless of the logging interval selection.

e. The line voltage is displayed visually, graphed against the current date

and time (based on Windows system time).

2. Date and Time stamping of new events recorded by the MULTIPAK

a. The date and time of each new power quality event recorded by the

MULTIPAK’s microprocessor is recorded (based on Windows system

time).

3. Graph Display

a. The graph displaying the power quality events recorded by the

MULTIPAK will be replaced by a graph of the line voltage (“Line Voltage

History”)

b. The table (“XG TimeStamps”) displaying the time stamps of the power

quality events recorded by the MULTIPAK will be replaced by a table

(“ELM TimeStamps”) displaying the power quality events recorded by the

MULTIPAK while in Enhanced Logging Mode.
