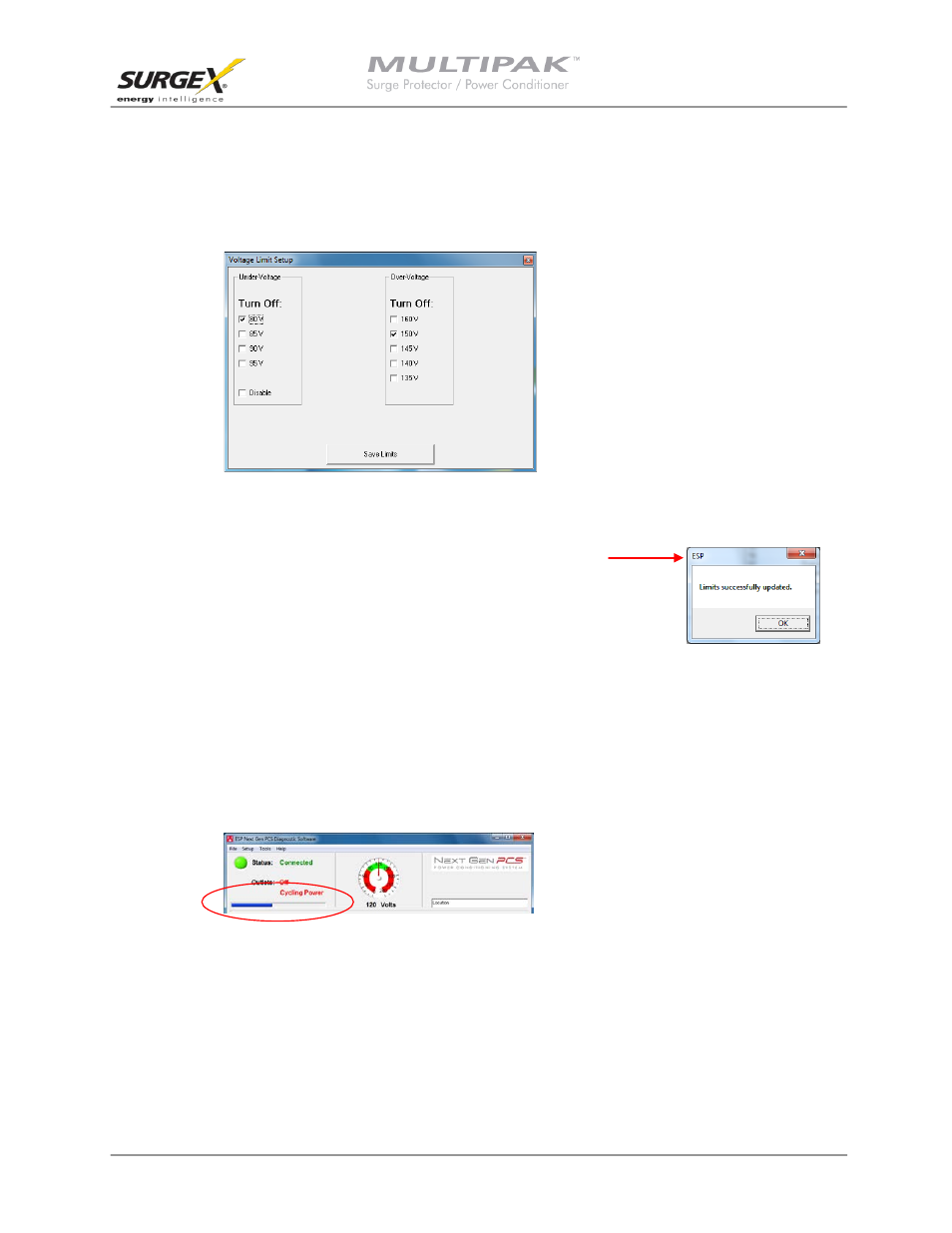

5. Voltage Limit Selection
a. Navigate to “Setup/Voltage Limits” in the menu.
b.
The Voltage Limit selection screen will appear with the currently active limits selected:
c. To change the limits, check the boxes beside the desired values and press “Save Limits”.
d. When the new limits have been successfully saved in the
MULTIPAK, the following message will be displayed:
e.
Press “OK” to complete the voltage limit selection process
.
6. Cycle Power Command
a. In addition to the basic On/Off outlet control, the MULTIPAK Diagnostic Software includes the ability
to execute a power cycle.
b. When commanded, the outlets will turn off, then back on, after a 90 second delay time.
c. To perform a power cycle, navigate to “Tools/Cycle Power” in the menu. The software will explain
that performing a power cycle will turn off power to connected equipment for 90 seconds. Press “Ok”
to continue, or “Cancel”.
d.
During the cycle, a progress bar will appear which will indicate the time until the outlets are turned
back on:
