IV. DIAGNOSTIC SOFTWARE
1. Starting the Program:
Open the SurgeX “Next Gen PCS” Diagnostic Software
(located under “Programs” on your PC Start Menu).
a. Please Note: A shortcut to this manual will also be in this location on your PC for future reference and
troubleshooting.
2. How to Connect to the MULTIPAK:
a. Make sure that the USB Data Cable is connected to both the MULTIPAK and your PC (for
instructions on how to connect the USB Data Cable, refer to Section III – 2 – B : Hardware/USB
Data Interface Cable/Instructions for Data Retrieval – listed above)

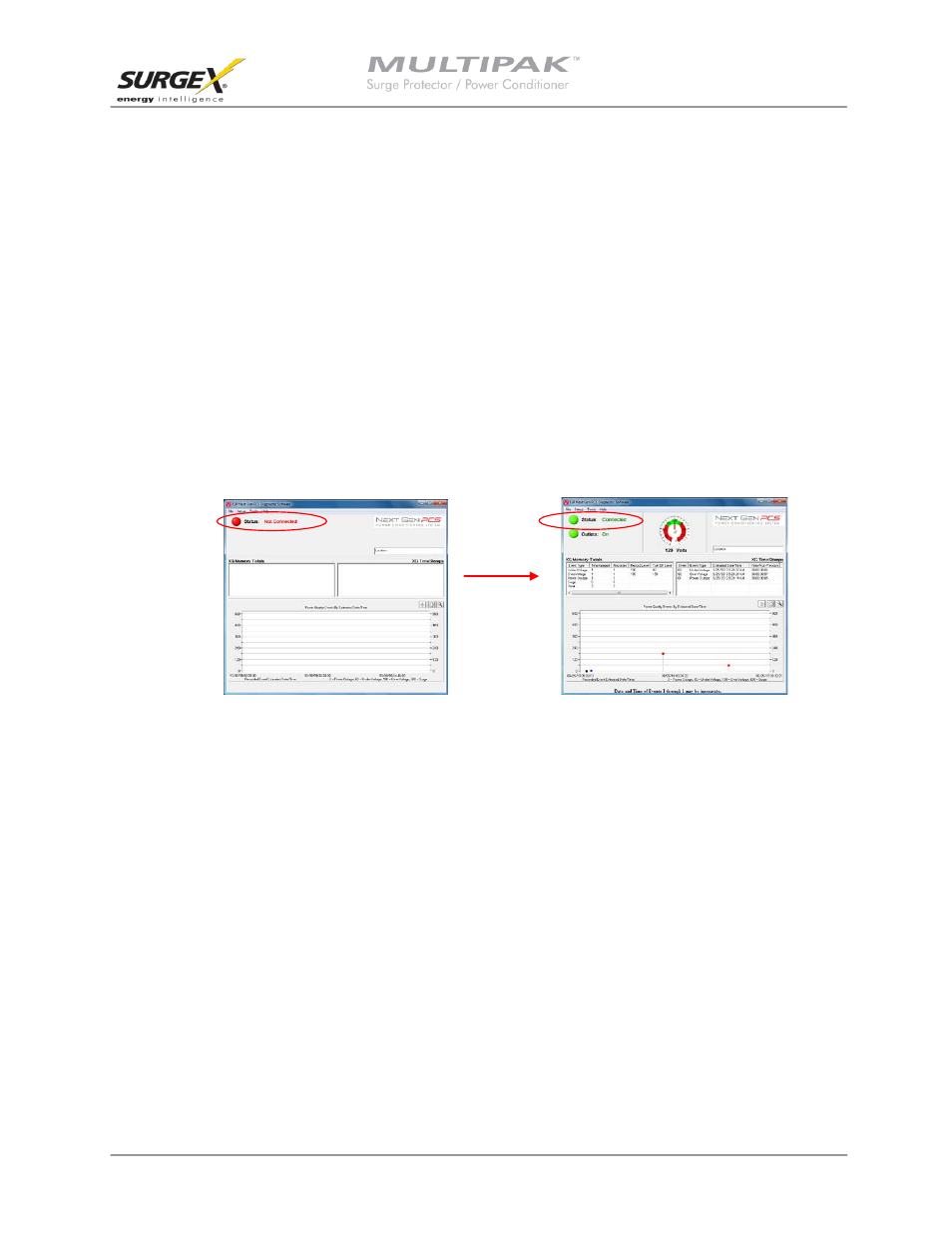

b. Press the red button beside “Status” to connect to the MULTIPAK. The Connection Status will
change to
Green
and the top of the screen will indicate that it is connected.
