Replacing the RAID Controller Battery
CAUTION: Remove ALL power from the InfoStation before uninstalling the RAID
Module. The RAID Module contains NO USER SERVICEABLE PARTS inside
the unit (only the battery is user serviceable). Warranty is VOID if module
is opened (only the battery cover may be opened by user). Refer ALL other
servicing to qualified personnel!
Danger of explosion if the RAID battery is incorrectly replaced! Replace
only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer's instructions.
NOTE: While performing the steps in this section, work on a soft surface to pre-
vent excessive shock to the RAID module and InfoStation chassis.
1. Remove RAID module from the InfoStation chassis by simply reversing steps in section
"Installing the RAID Module into the InfoStation Chassis" (Figure 15).
2. Once module is removed, loosen and remove the two (2) screws securing the battery
cover to the module (Figure 16). Remove cover.
IFS_72
SC SI
LV D/S E
UL
TRA160
Remove These
Two Screws
Battery
Cover
RAID
Module

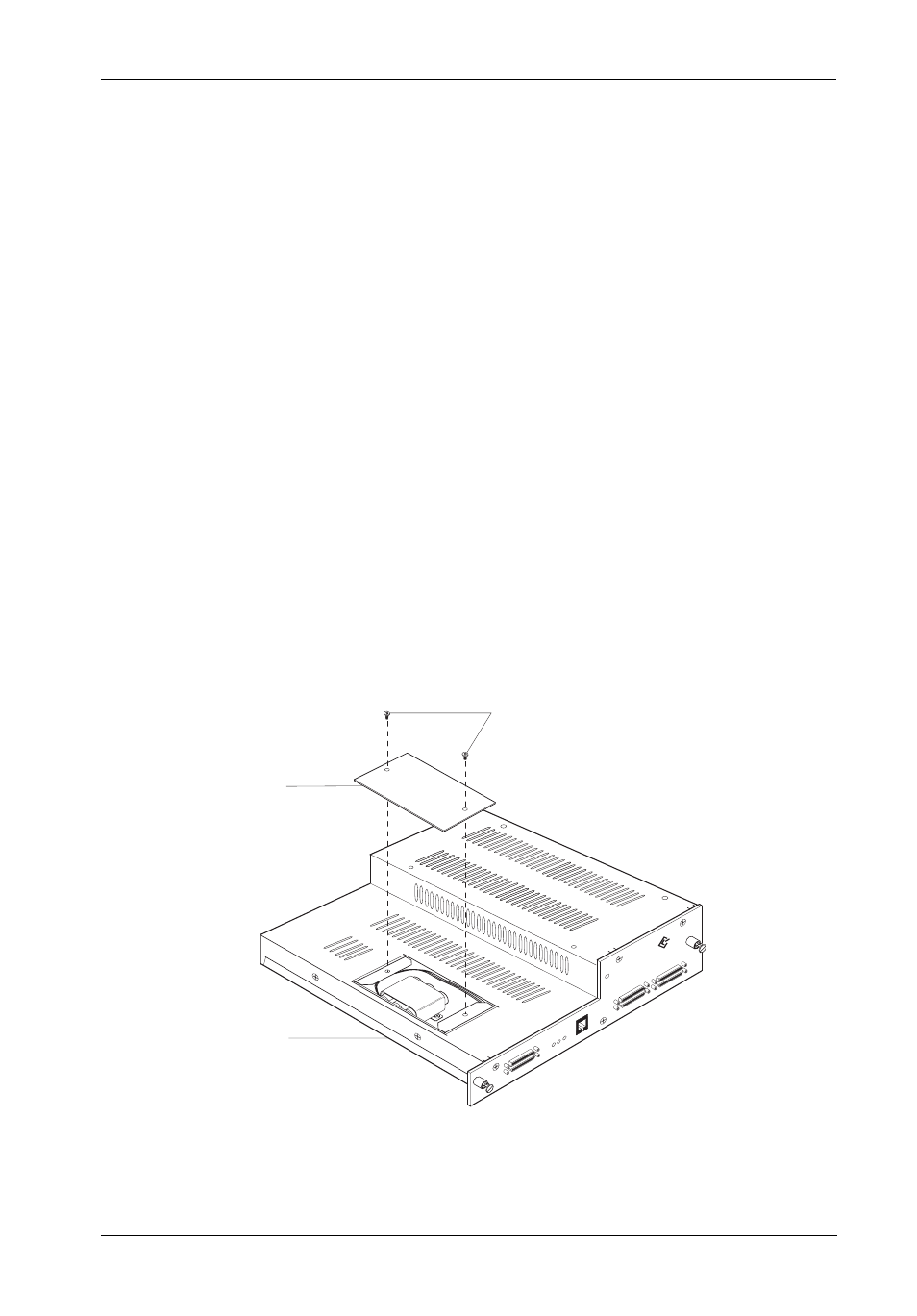

Figure 16: Removing the Battery Cover
