8 Installation
StorCase Technology, Inc. InfoStation Installation Guide - Rev. C01

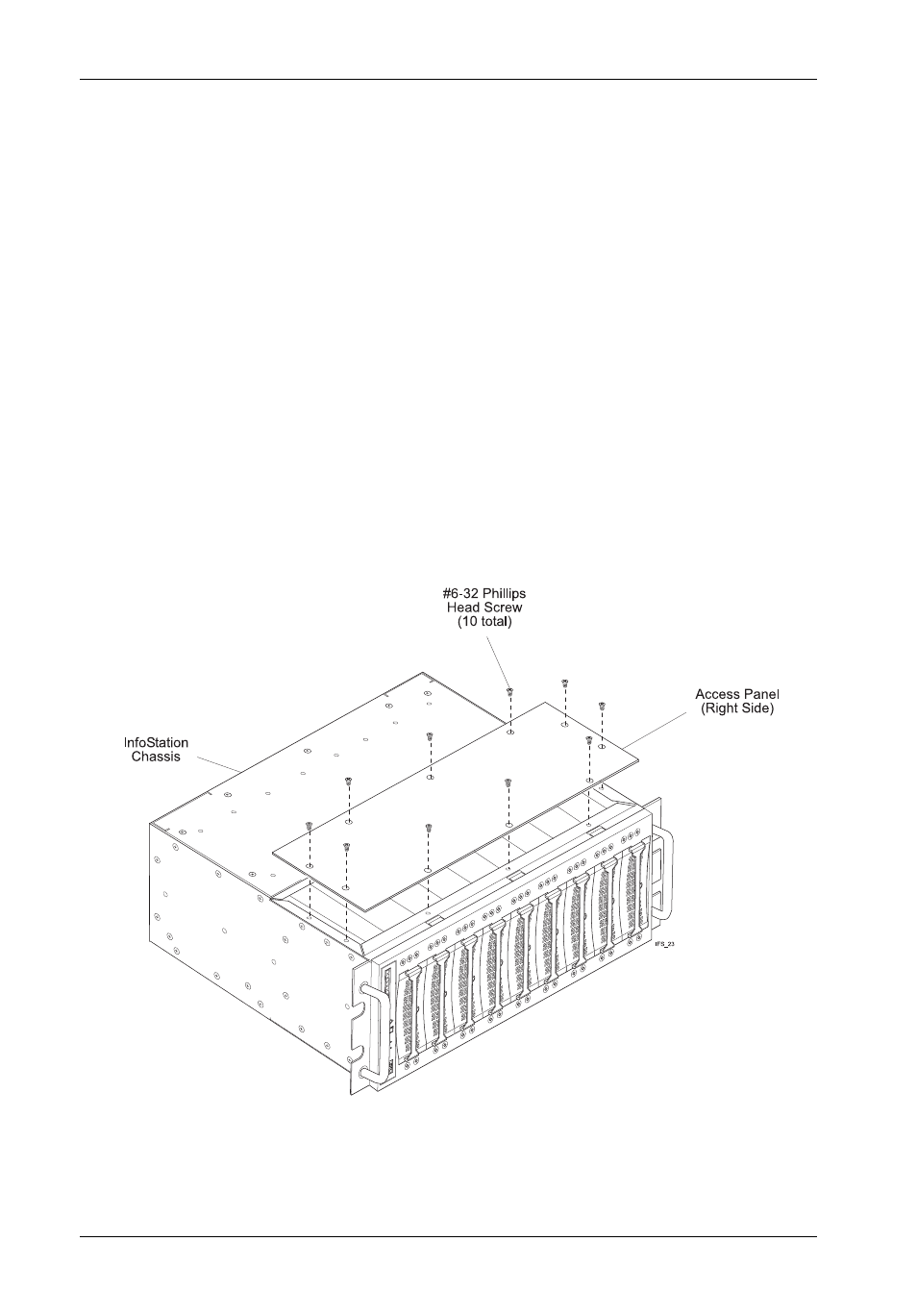

Figure 7: Removing the Access Panel
Removing the InfoStation Access Panel
CAUTION: Remove ALL power from the InfoStation before removing the access panel(s).
The InfoStation contains NO USER SERVICEABLE PARTS inside the unit.
Warranty is VOID if any of the modules inside the InfoStation are opened. Refer
ALL servicing to qualified service personnel!
1. Unplug the InfoStation and verify that all cables have been disconnected.
2. Place the InfoStation on a soft clean surface to protect finish of the chassis.
3. Remove the ten (10) #6-32 Phillips Flat Head screws securing the access panel to
the InfoStation chassis (Figure 7).
NOTE: Remove the access panel located on the RIGHT SIDE of the chassis only.
4. Remove the access panel by carefully lifting the panel(s) off the chassis (Figure 7).
5. To reinstall panel, simply reverse the above mentioned steps.
