12 Installation
StorCase Technology, Inc. InfoStation Installation Guide - Rev. C01
Configuring the InfoStation for 4-Channel
CAUTION: Remove ALL power from the InfoStation before removing the I/O repeater
module. The I/O repeater module contains NO USER SERVICEABLE PARTS inside
the unit. Refer ALL servicing to qualified service personnel!
1. Unplug the InfoStation and verify that all cables have been disconnected.
2. Place the InfoStation on a soft clean surface to protect finish of the chassis.
3. Loosen and remove the two (2) #6-32 Phillips Pan Head screws securing each
I/O blank plate to the InfoStation chassis (Figure 11).
4. Remove all three (3) I/O blank plates as shown in Figure 11.
5. Remove access panel (as described on page 8).
6. Remove all the jumper blocks so that I/O repeater modules ( #2, 3, and 4) and ter-
minators (#2, 3, and 4) can be installed. Correct 4-channel configuration is shown
in Figure 12.

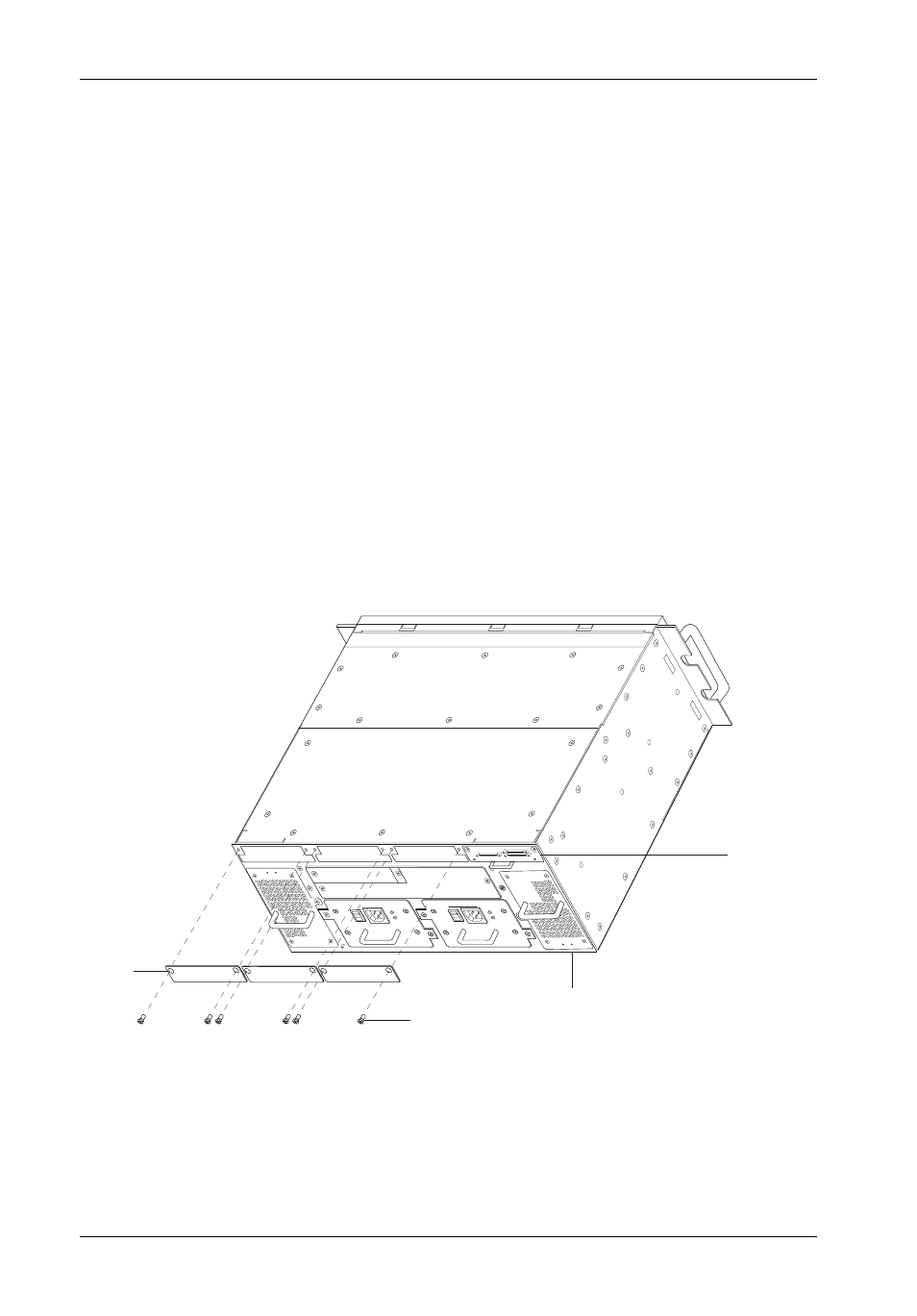

Figure 11: Removing the I/O Blank Plates for 4-Channel Configuration
#6-32 Phillips
Head Screw
(2 per Plate)
I/O Repeater
Module
InfoStation
Chassis
I/O Blank
Plates
IFS_27
