6 Installation
StorCase Technology, Inc. InfoStation Installation Guide - Rev. C01
Removing the Power Supply Module
CAUTION: The power supply module contains NO USER SERVICEABLE PARTS inside
the unit. Warranty is VOID if module is opened. Refer ALL servicing to
qualified service personnel!
NOTE: The power supply module is hot-swappable. The chassis may remain on
when removing and installing the power supply module.
1. Turn OFF power to the power supply module via the Power Switch located on the
module itself.
2. Loosen and remove the two (2) #6-32 Phillips Pan Head screws securing the power
supply module to the InfoStation chassis (Figure 5).
3. Remove the power supply module by grasping handle and pulling out from chassis.
4. To reinstall power supply module, simply reverse above mentioned steps.

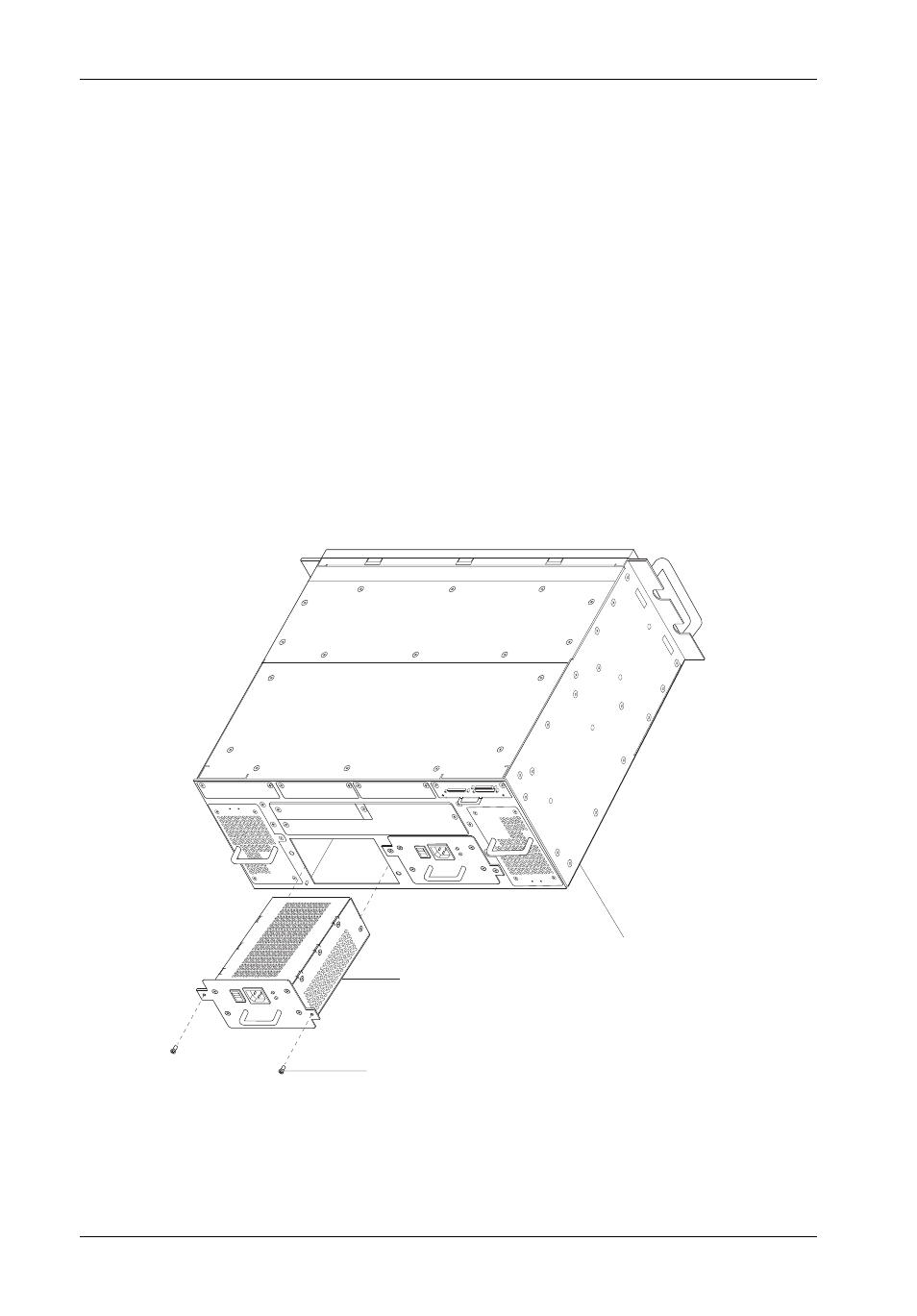

Figure 5: Removing the Power Supply Module
Power Supply
Module
InfoStation
Chassis
#6-32 Phillips
Pan Head Screw
(2 total)
IFS_21
