Installation 5
Removing the Blower Module
CAUTION: The blower module contains NO USER SERVICEABLE PARTS inside the
unit. Warranty is VOID if module is opened. Refer ALL servicing to
qualified service personnel!
NOTE: The blower module is hot-swappable. The chassis may remain on when
removing and installing the blower module.
1. Loosen and remove the #6-32 Phillips Pan Head screw securing the blower module
to the InfoStation chassis (Figure 4).
2. Remove the blower module by grasping handle and pulling out from chassis.
3. To reinstall blower module, simply reverse above mentioned steps.

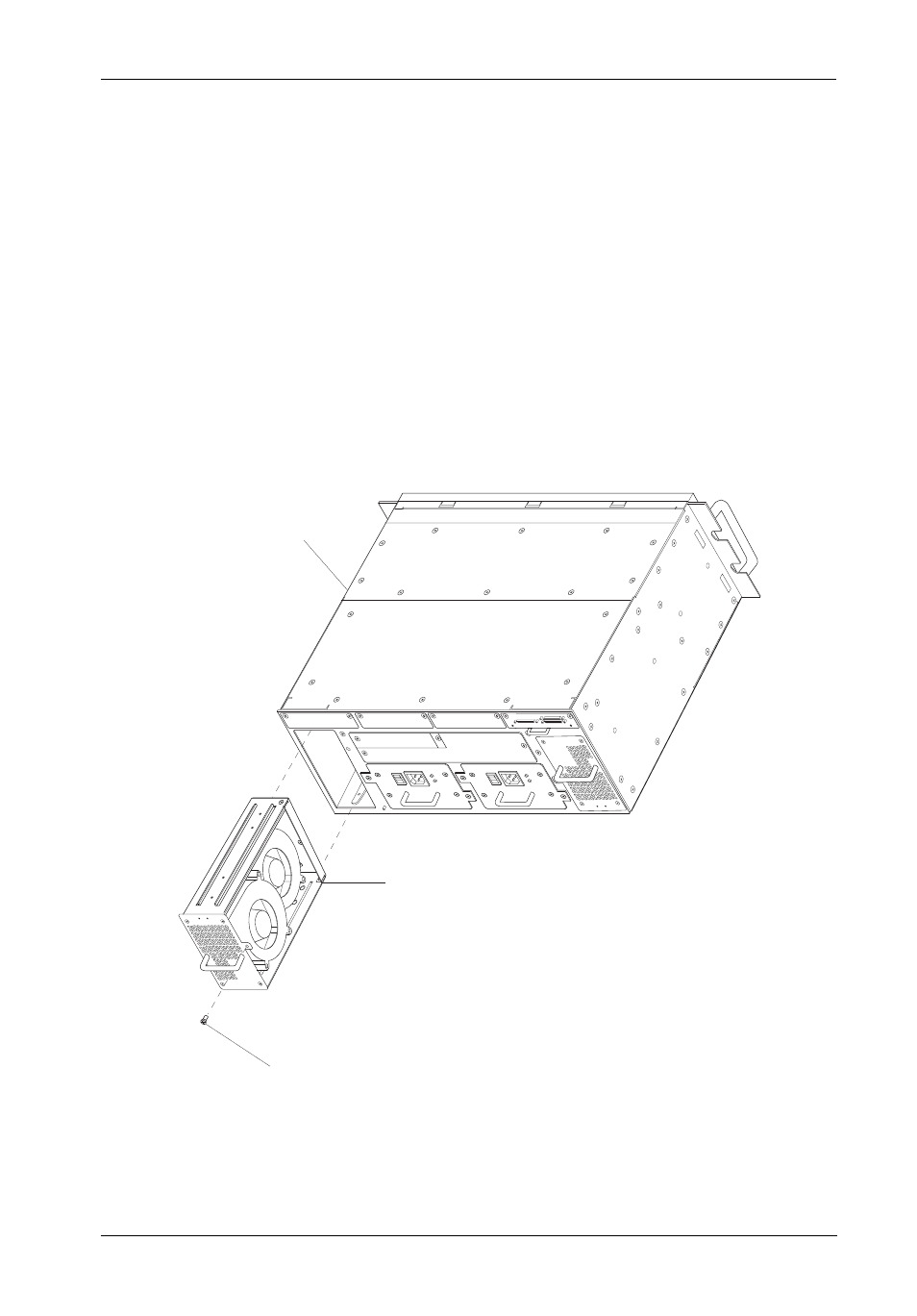

Figure 4: Removing the Blower Module
Blower
Module
InfoStation
Chassis
#6-32 Phillips
Pan Head Screw
(1 total)
IFS_20
