InfoStation 5-Bay RAID User's Guide - Rev. C00

StorCase Technology, Inc.

RAID Configuration

Storage

Policy

Volume

List

Drive

Graph

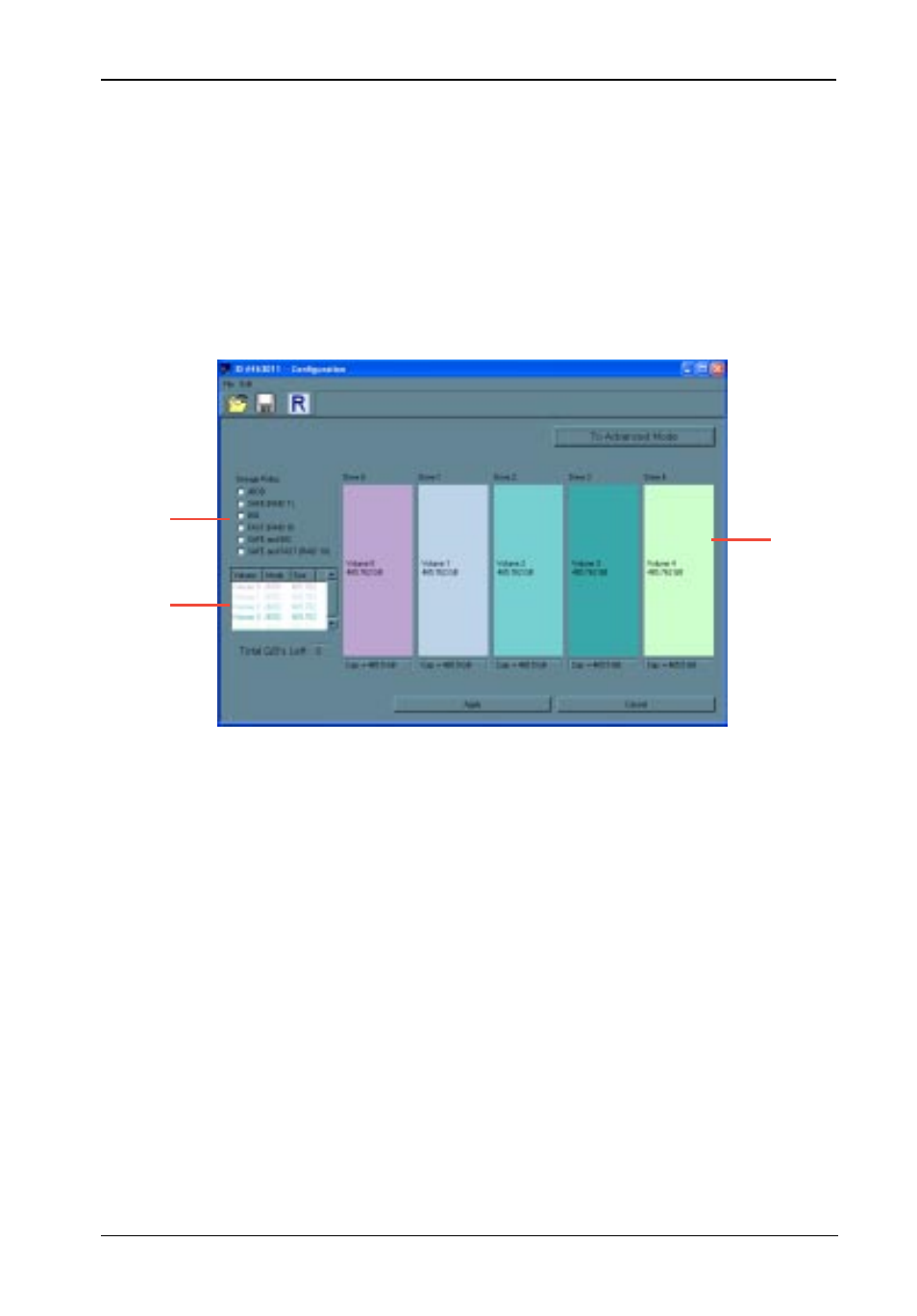

Figure 10: Basic Configuration Wizard

(Actual screen may vary)

Basic Configuration

The Basic Configuration Wizard (Figure 10) is accessed from the Status Window and allows
the user to manage volume.

Volumes are based on a user-selected storage policy. User cannot modify volume counts or
capacities. To protect against unauthorized changes, the RAID GUI Manager will prompt for
a password when accessing the Wizard for the first time.

WIZARD

• Storage Policy

Identifies available storage policies for assignment.

• Volume List

Shows Volume, Mode (Policy), and Size details for created vol-
umes. The "Total GBs Left" field shows the remaining capacity
in GB for all drives.

• Drive Graph

Displays disk space for each drive. All space allocated to the
same volume appears in matching color. Hatch pattern indicates
a proposed configuration and a solid block indicates existing
volume.
