22 Appendix B - Factory-Installed Options
StorCase Technology, Inc. DE200i-SW/SWC User's Guide - Rev. C01

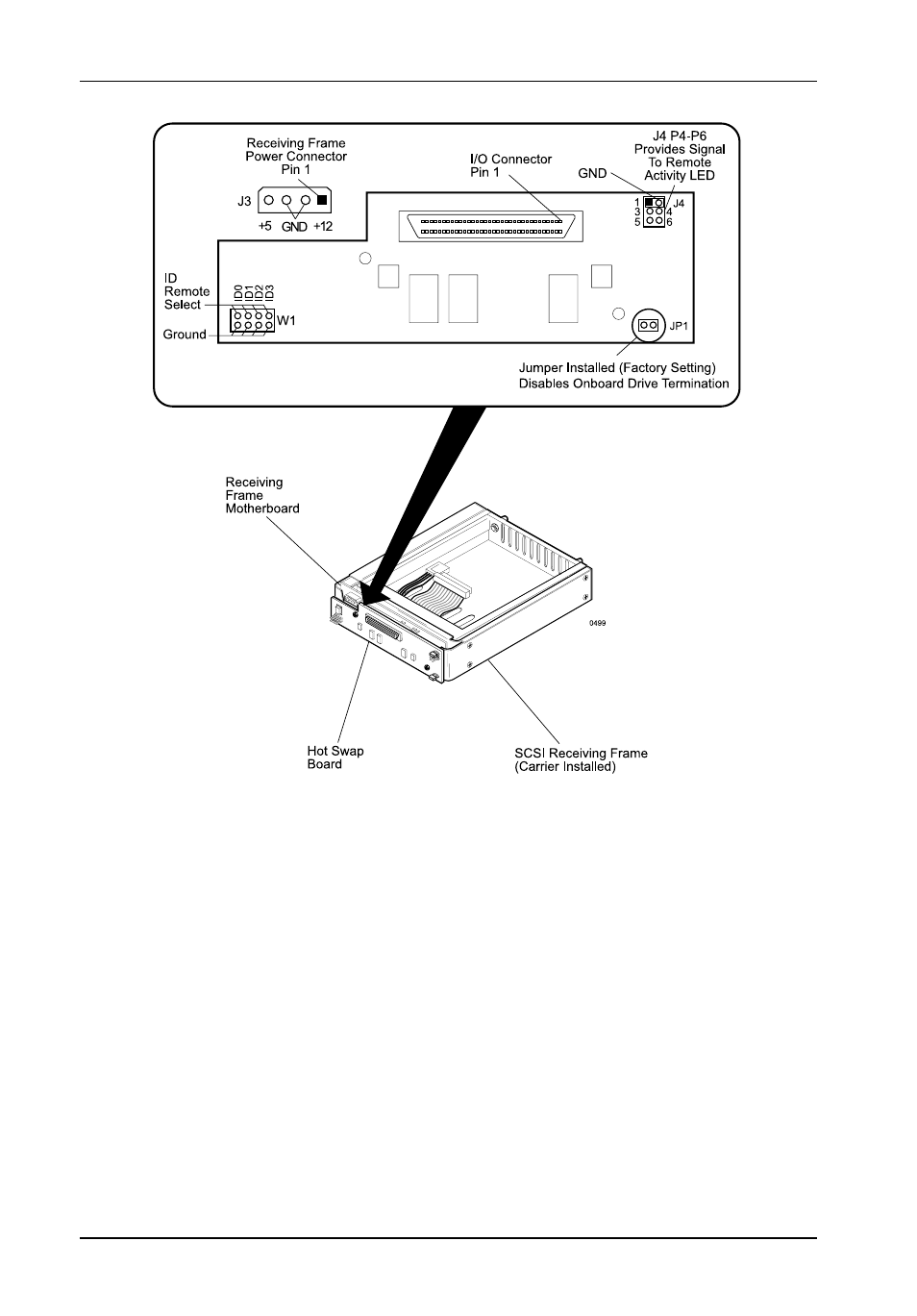

Figure B-2: Hot Swap Board Jumper Options
2. Turn the DE200 key lock mechanism (located on the front of the receiving frame),
clockwise to the OFF position. This unlocks the drive from the receiving frame and
activates the Hot Swap Board. The unit ID number on the display will begin flashing.
WARNING: Be careful not to remove or disturb the carrier unit at this point. Although
the carrier is physically unlocked, the drive requires a minimum of 15
seconds to spin down and is subject to vibration and possible damage
during this period.
3. As the unit ID number flashes, the Hot Swap Board monitors the activity of the SCSI
bus. When activity is no longer present, the Hot Swap Board will remove power from
the drive and then remove the device from the SCSI Bus. The unit ID number will continue
to flash during this period.
