8 Installation

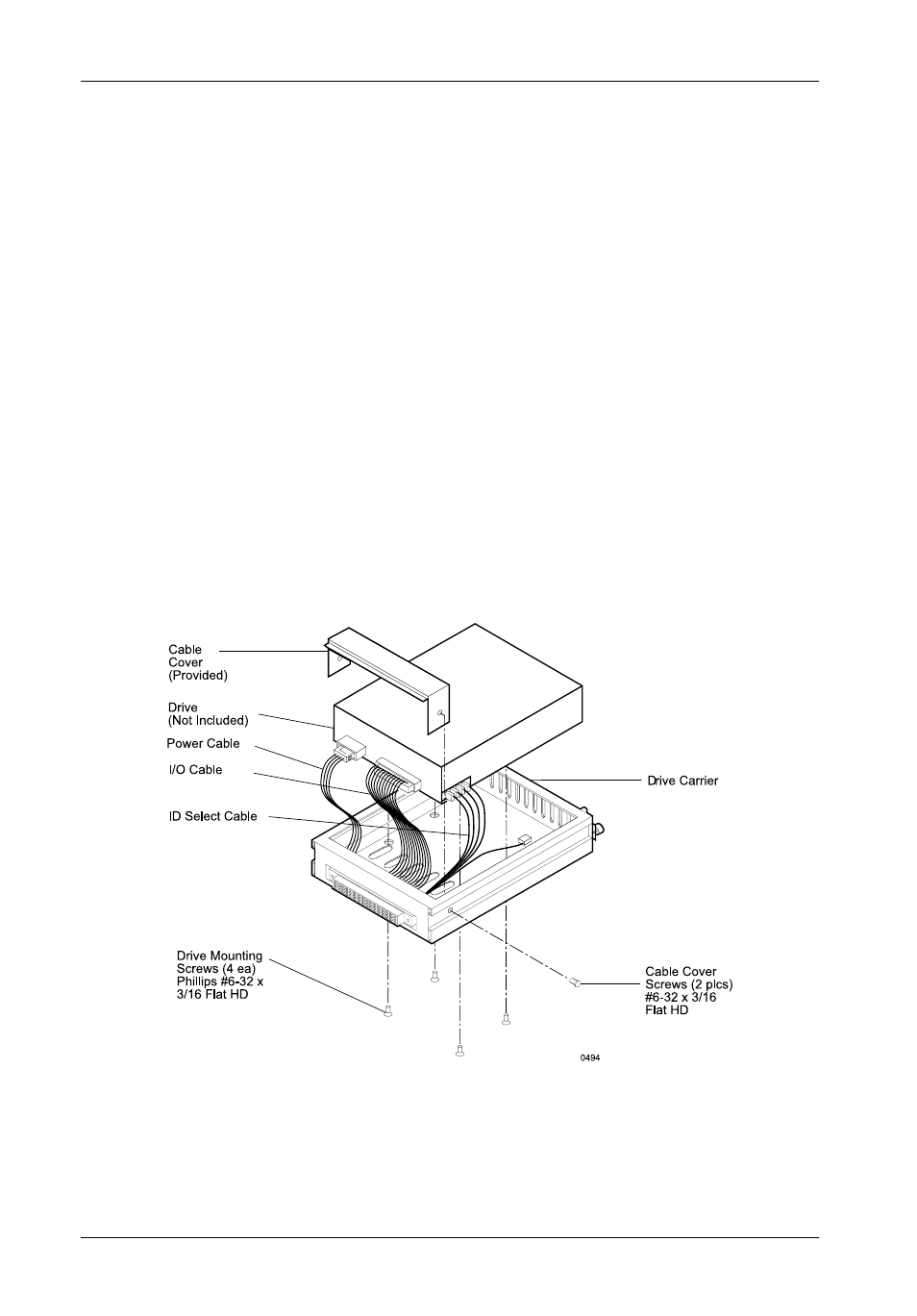

Figure 6A: Drive Installation Assembly
(DE200i-SW)
Installation
(Applies to DE200i-SW only)
1. Attach the I/O cable from the rear distribution board of the DE200i-SW carrier
to the drive (Figure 6A).
2. Attach the 4-pin power cable from the rear distribution board to the drive (Figure
6A).
3. Install the 5-pin ID select cable into the rear signal distribution board connector.
Refer to Figure 7 for a typical 2mm drive pin connection.
4. Carefully insert the drive into the carrier at an angle, cable-end first. Make sure
that none of the cables are pinched. Lower the front of the drive carefully
into place. Fasten the drive into the carrier with four (4) #6-32 Phillips Flat Hd.
screws provided.
5. Attach the provided cable cover with two (2) #6-32 Phillips Flat Hd. screws.
