12 Installation
IMPORTANT NOTE: In order to use remote ID selection from a computer or expansion
chassis, the Unit ID number on the DE200 receiving frame must
be set to "0" with the provided alignment tool. Refer to the section
"Selecting the Unit ID Number" later in this manual for the unit
ID selection procedure.
4. With the drive carrier locked in place inside the receiving frame, install the DE200
into the 5.25” drive opening in the computer or expansion chassis. Use the
appropriate guides to position the DE200, and fasten it into place with the four (4)
#6-32 Phillips screws provided. Figure 9 illustrates the location of the mounting
holes. Mounting holes are provided on each side and the bottom of the receiving
frame to accommodate a variety of mounting configurations. Use the mounting holes
which best suit the computer or expansion chassis configuration.
Mounting
Holes (Right)
Mounting
Holes (Bottom)
Front of Unit
Mounting
Holes (Left)
0496

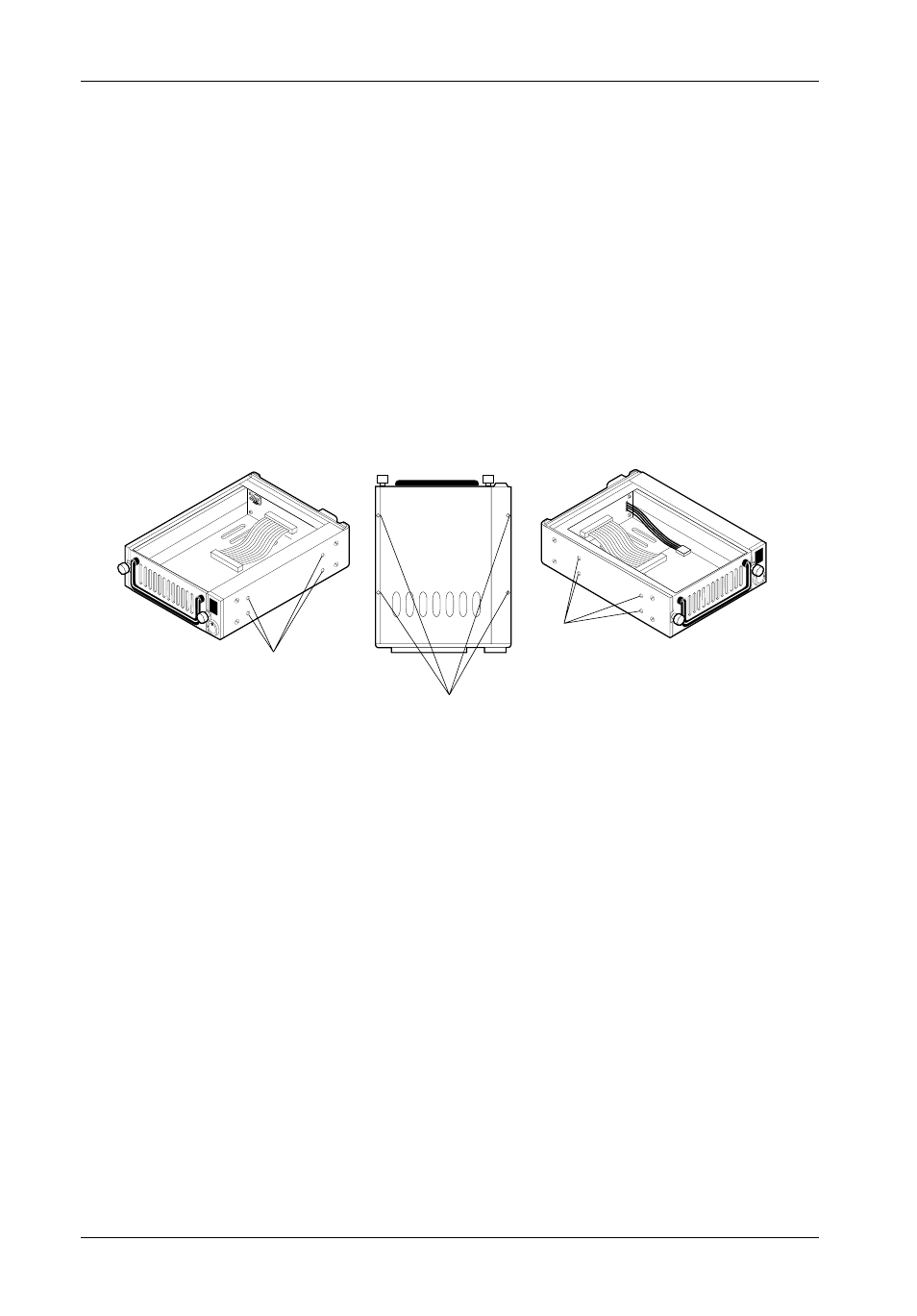

Figure 9: Receiving Frame Mounting Holes
5. Adjust the front of the receiving frame so the carrier slides freely in and out on the
receiving frame guides. The position of adjoining peripheral units may require
adjustment.
6. To connect the drive to a Remote Activity LED in the computer system or expansion
chassis, connect the appropriate cable(s) to the receiving frame motherboard as
shown in Figure 5. Connect J6 Pins 4 and 6 to a remote activity LED.
7. Connect the I/O cable from the host adapter to the receiving frame. The Pin 1 indicator
on the cable must be properly aligned. Refer to Figure 5 for the correct Pin 1 location.
Make sure that only the last SCSI device is terminated. If the DE200 is at the end of
a daisy chain, the terminators on the receiving frame must be enabled. If the DE200
is in the middle of a daisy chain, termination should be disabled (factory setting).
Refer to jumper W2 in Figure 5.
