Page 18
DE200i-SW/SWC User's Guide - Rev. C01
StorCase Technology, Inc.
Installation
11
Installing the Receiving Frame
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.
NOTE:
Use a #2 Phillips screwdriver during this procedure.
1.
Turn OFF power to the computer.
2.
Open the computer system according to the manufacturers instructions. If
necessary, temporarily remove any expansion boards that may make installation
difficult.
3.
To select the DE200 unit ID remotely through the computer system or external ex-
pansion chassis, the appropriate cable from the system must be connected to the
ID select connector (J4) on the rear of the receiving frame as shown in Table 1
and Figure 8.
Table 1: Receiving Frame Motherboard Connector J4 Pin Configuration
Pin 1
RESERVED
Pin 11
RESERVED
Pin 2
RESERVED
Pin 12
RESERVED
Pin 3
RESERVED
Pin 13
Ground
Pin 4
RESERVED
Pin 14
ID3
Pin 5
RESERVED
Pin 15
Ground
Pin 6
RESERVED
Pin 16
ID2
Pin 7
RESERVED
Pin 17
Ground
Pin 8
RESERVED
Pin 18
ID1
Pin 9
RESERVED
Pin 19
Ground
Pin 10
RESERVED
Pin 20
ID0

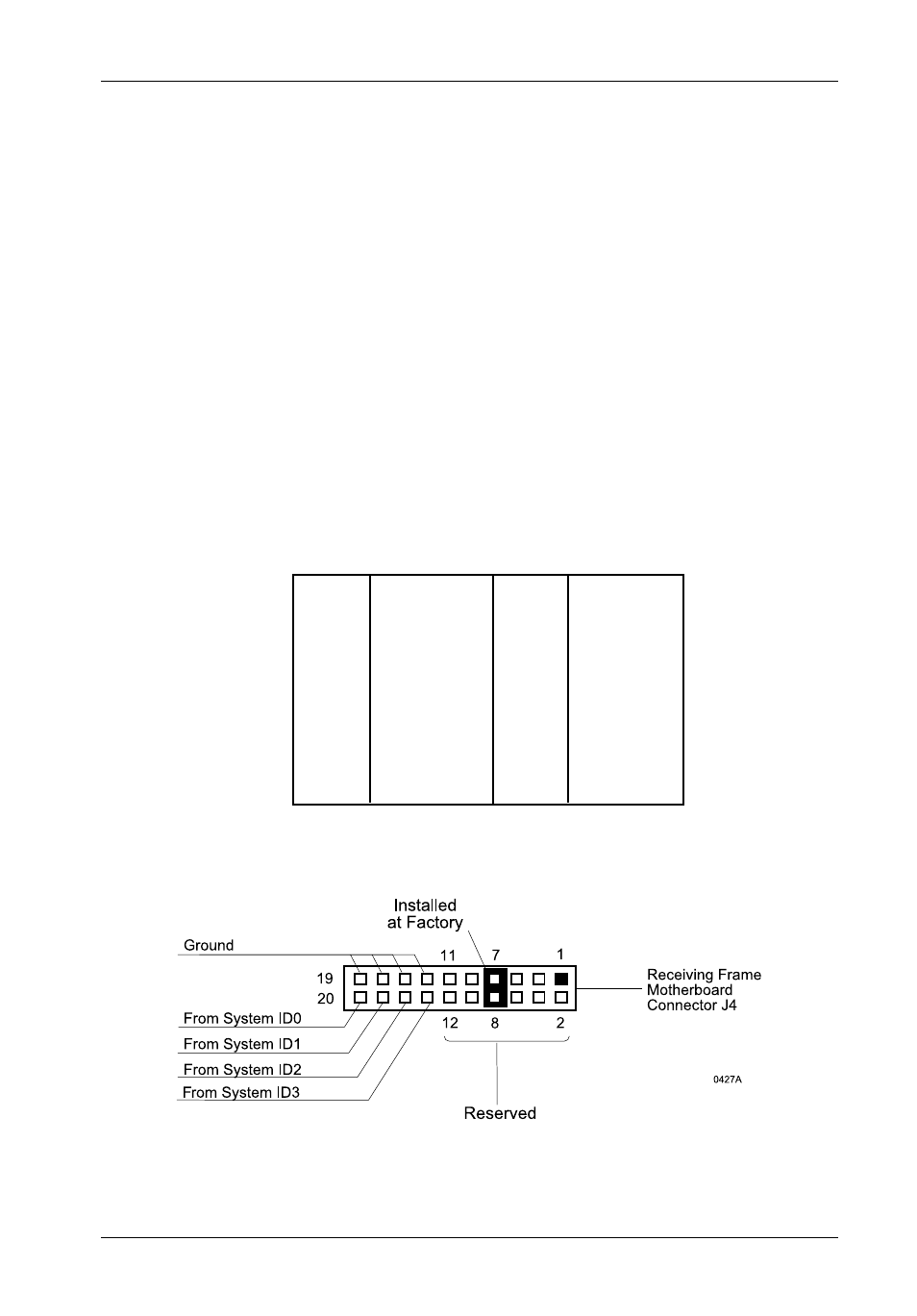

Figure 8: Receiving Frame Connector J4 Pin Configuration
