DE200i-S User's Guide - Rev. D01 StorCase Technology, Inc.
Appendix B - Factory-Installed Options 19

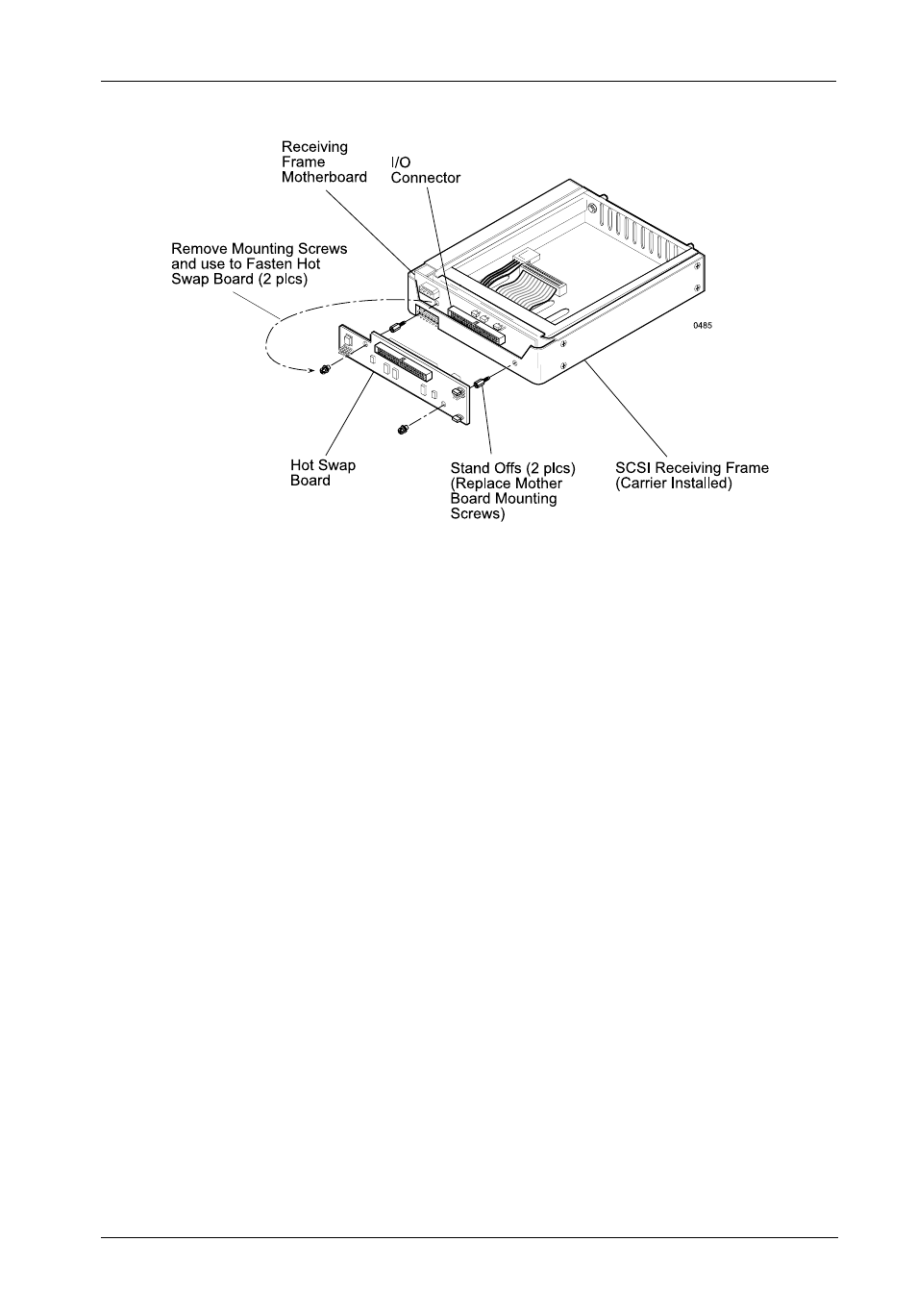

Figure B-1: Attaching the Hot Swap Board
Jumper Options
The jumper pins on the Hot Swap Board are similar to those on the SCSI Data Express
motherboard. Installing a jumper at location JP1 will disable onboard receiving frame termination
(Figure B-2). Location J4 provides remote ID selection. And, J6 Pin C provides a signal to drive
remote activity LED logic.
Using the Hot Swap Board
Carrier Removal
Follow the procedures below to remove theDE200i-S carrier from the receiving frame equipped
with the Hot Swap option.
1. Verify that the drive is not active. If the system is on a network, make certain other
users are not accessing the target drive, then disable it from the network. Dismount
the drive.
2. Turn the DE200 key lock mechanism (located on the front of the receiving frame),
clockwise to the OFF position. This unlocks the drive from the receiving frame and
activates the Hot Swap Board. The unit number on the display will begin flashing.
