DE200i-S User's Guide - Rev. D01 StorCase Technology, Inc.
Installation 9

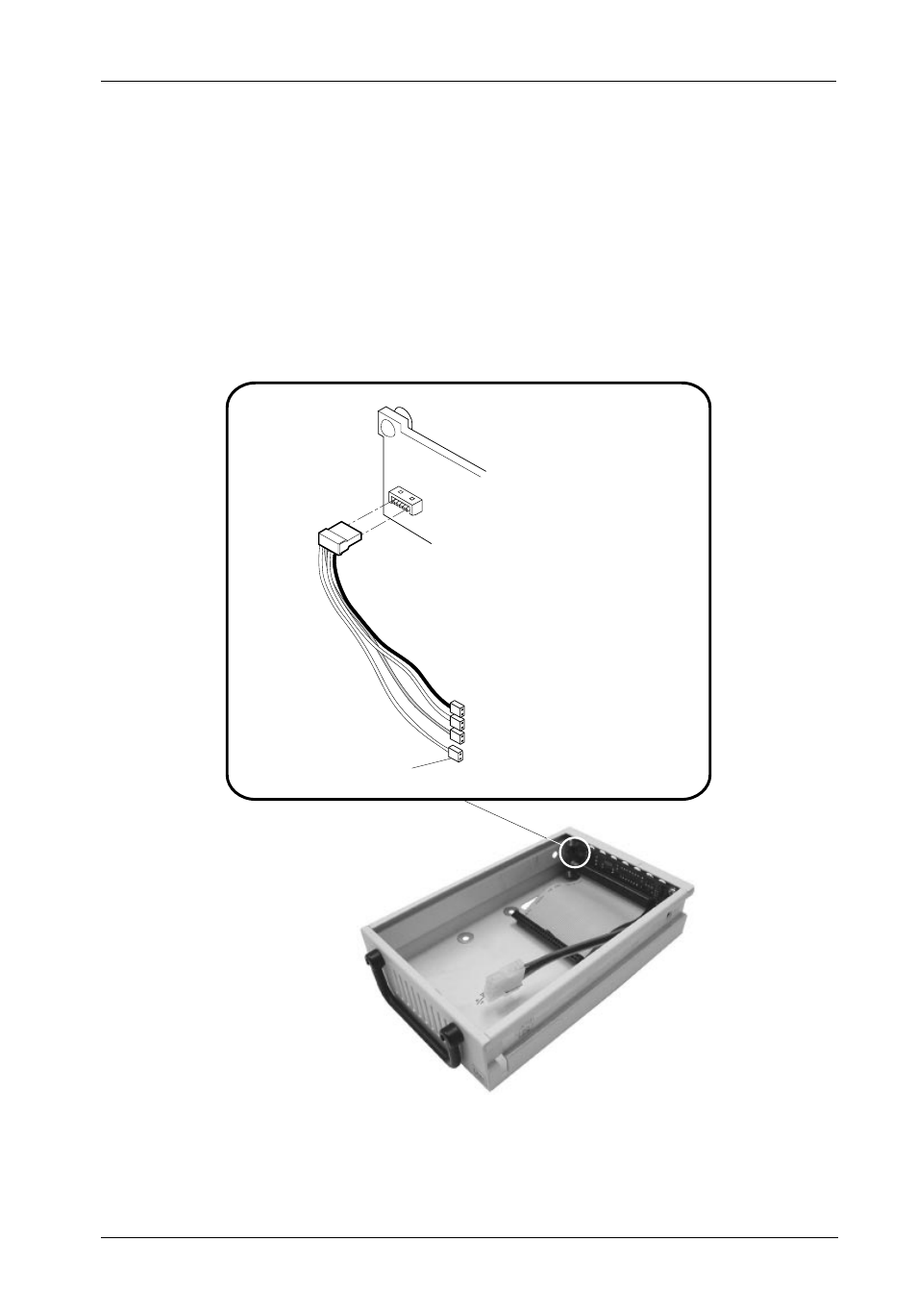

Figure 7: Drive Activity LED Cable Connection
Drive Carrier
Board
0175B
Drive
Carrier
ID Select
Cable
2mm Drive
Connectors
Black (ID0)
Brown (ID1)
Red (ID2)
Yellow (Drive Activity)
SCSI ID Select Cable Connection
Black - Connects to ID0 pin on drive
Brown - Connects to ID1 pin on drive
Red - Connects to ID2 pin on drive
Yellow - Connects to Drive Activity Signal pin on drive
Figure 7: Typical SCSI ID Select Connection
