Installation
13
Drive
Carrier
Guide
Receiving
Frame
Unit Select
Rotating
Switch
Drive
Carrier
(removed)
Unit
Number
Display
Lock
and DC
Power
Switch
Front of
Unit
0363
4.
Use the alignment tool supplied with the DE200i-S to select the unit ID number of
the disk drive. Refer to Figure 10 for the location of the Unit ID Select Switch inside
the receiving frame.
5.
After selecting an appropriate unit ID number, replace the DE200i-S carrier in the
receiving frame, and LOCK IT IN PLACE.
NOTE:
The lock on the DE200i-S receiving frame functions as a lock and a
DC power switch for the carrier unit. The lock must be engaged
(turned counterclockwise) in order to supply power to the carrier and
installed drive unit.
6.
The new drive may need to be formatted or initialized prior to use with the
operating system and applications software. Refer to the drive and/or computer
manufacturer's documentation for formatting information.

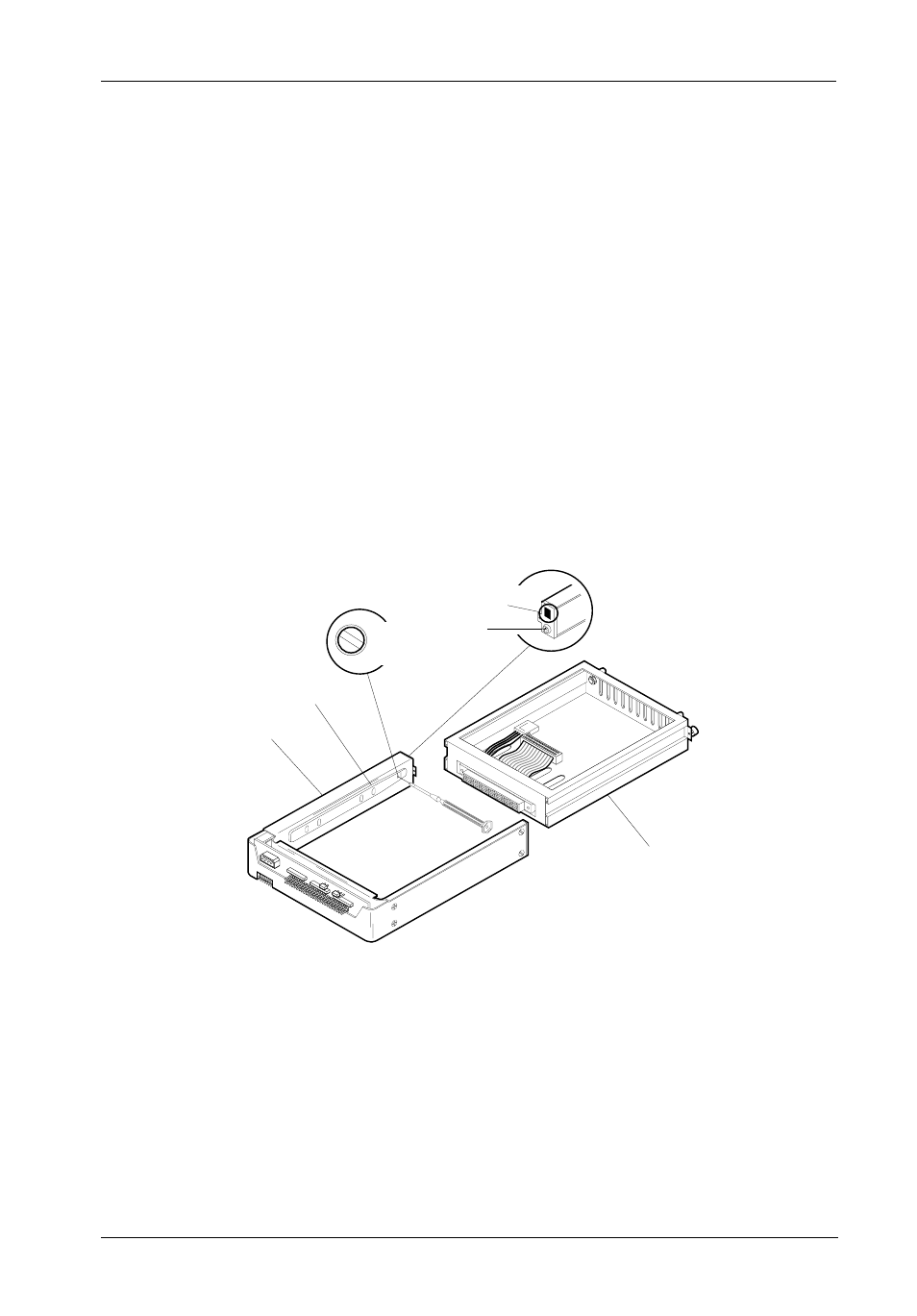

Figure 10: Unit ID Select Switch Location
