StorCase Technology, Inc. DE200i-S User's Guide - Rev. D01
8 Installation

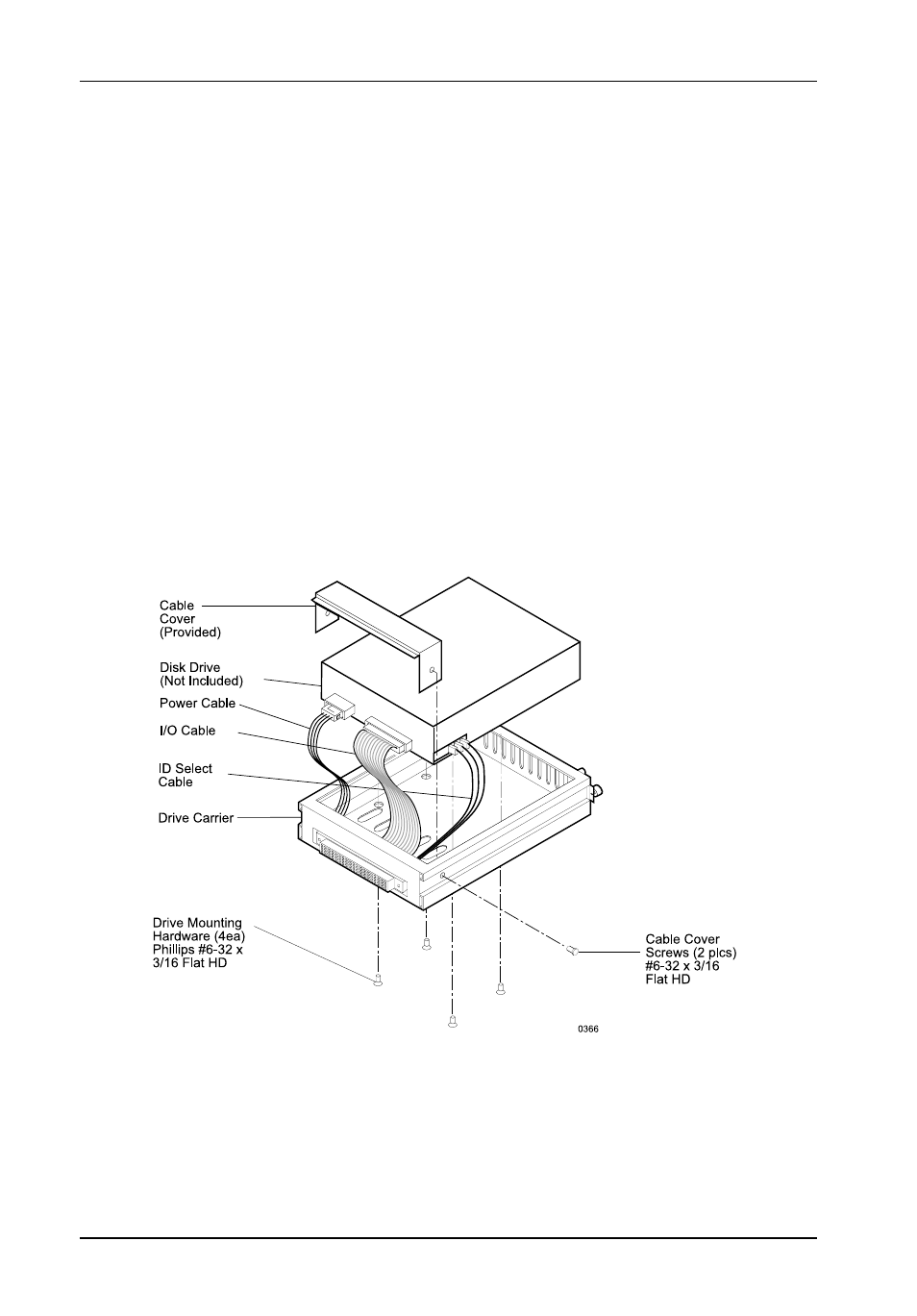

Figure 6: Drive Installation Assembly
Installation
1. Attach the I/O cable from the rear distribution board of the DE200i-S carrier to
the disk drive (Figure 6).
2. Attach the 4-pin DC power cable from the rear distribution board to the disk drive
(Figure 6).
3. Install the 4-pin ID select cable into the rear signal distribution board connector
and connect to the appropriate drive pins as shown in Figure 7.
4. Carefully insert the drive into the carrier at an angle, cable-end first. Make sure
none of the cables are pinched. Lower the front of the drive carefully into
place. Fasten the drive into the carrier with four (4) of the eight (8) screws
provided as shown in Figure 6.
5. Attach the provided cable cover with two (2) #6-32 Phillips Flat Hd. screws as
shown in Figure 6.
