Configuration
4.2.6 D EFAULT USER
The Default user account is the only preconfigured user account that exists in the system at the
time of the first startup.

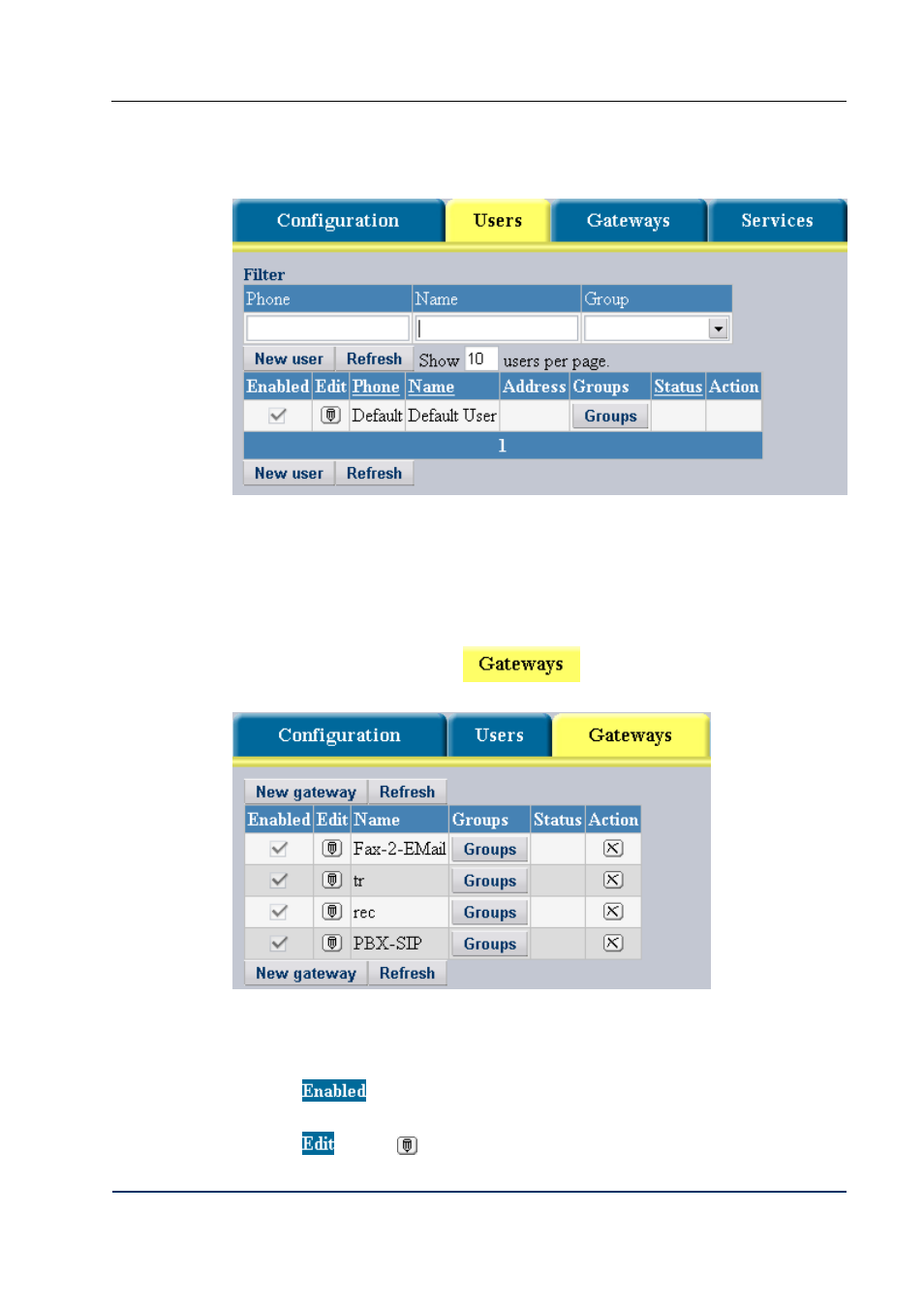

Fig. 19 Users table on first start
The existence of the Default user record is a must therefore you cannot delete this record. The
system uses the Default user account whenever a call comes originated by a user not registered
with the system.
4.3 C
ONFIGURING GATEWAYS
To access the page Gateways, press . The page presents a table of configured
gateways as shown in Fig. 20
Fig. 20 Table of gateways
The columns in the gateways table present the following information:
ƒ contains a dimmed checkbox that shows if the gateway record is activated
or inactive
ƒ contains , the Edit button. Click this button to edit the record.
DVX-7090 VoIP Router page 23 of 83
