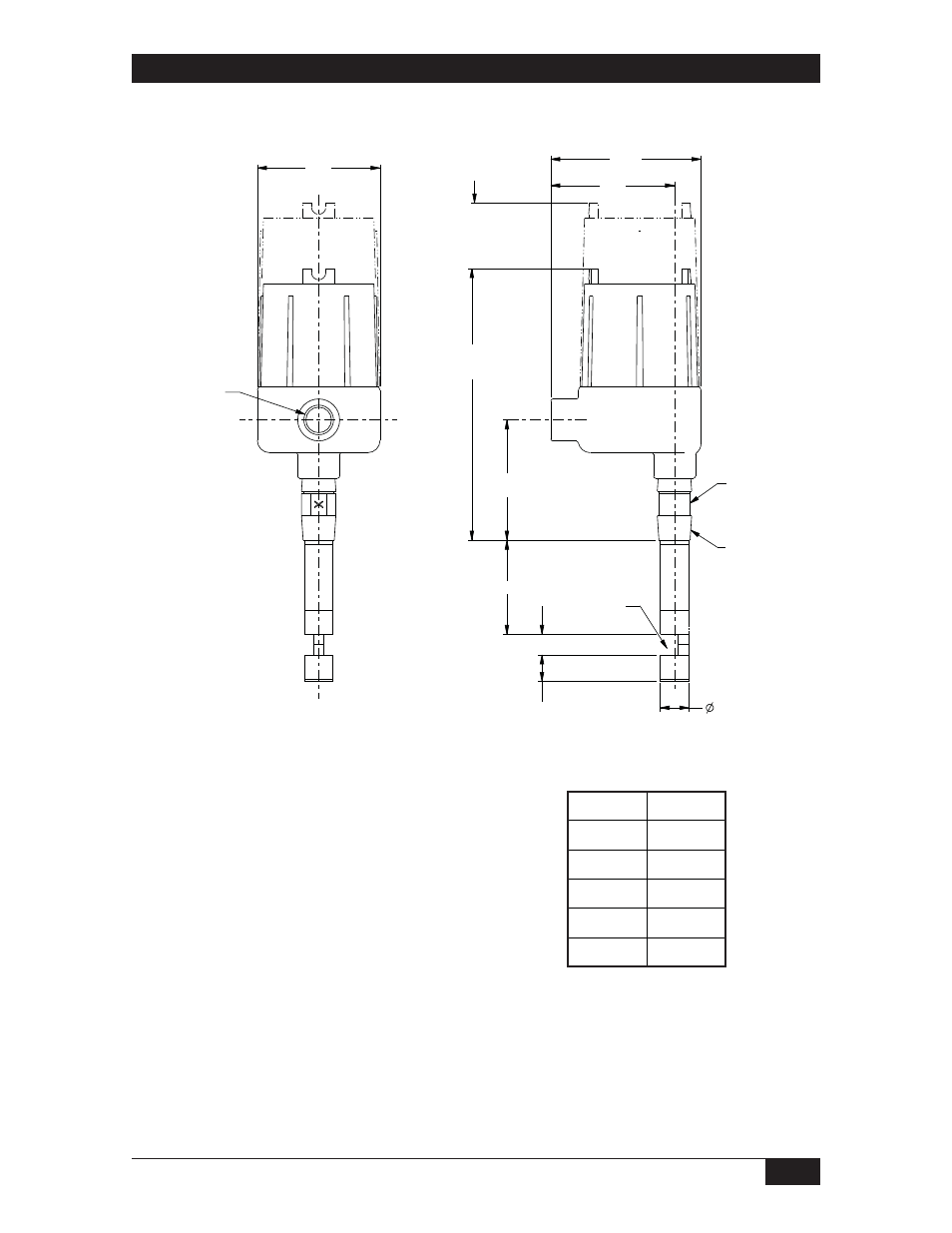

Dimensions
Metal Sensor
K2 HSG
ADD FOR
2.00
50.8
K1 HSG
210.8 *
8.30
A
93.3 *
3.67
15.9
0.63
116.7
4.59
96.0
3.78
95.3
3.75
20.6
0.81
22.2
0.88
SENSOR
CAVITY
PROCESS
CONNECTION
SEE CHART
15/16 WRENCH
FLATS
ELECTRICAL
CONNECTION
3/4 NPTF STD
1/2 NPTF OPT
Dimensions are for reference only.
Contact the factory for certified drawings
for a particular model number.
Linear = mm/inches
Drawing 0390000
CONNECTION
SIZE
* LENGTH
3/4 NPT(M) SHOWN
1 NPT(M)
8.0
ADD 0.31
1-1/2 NPT(M)
9.5
ADD 0.38
2 NPT(M)
9.5
ADD 0.38
PROBE LENGTH
A
