Sor rf probe grounding scheme – SOR Single Point RF Level Switch User Manual
Page 5
Form 759 (03.13) SOR Inc.
5/16

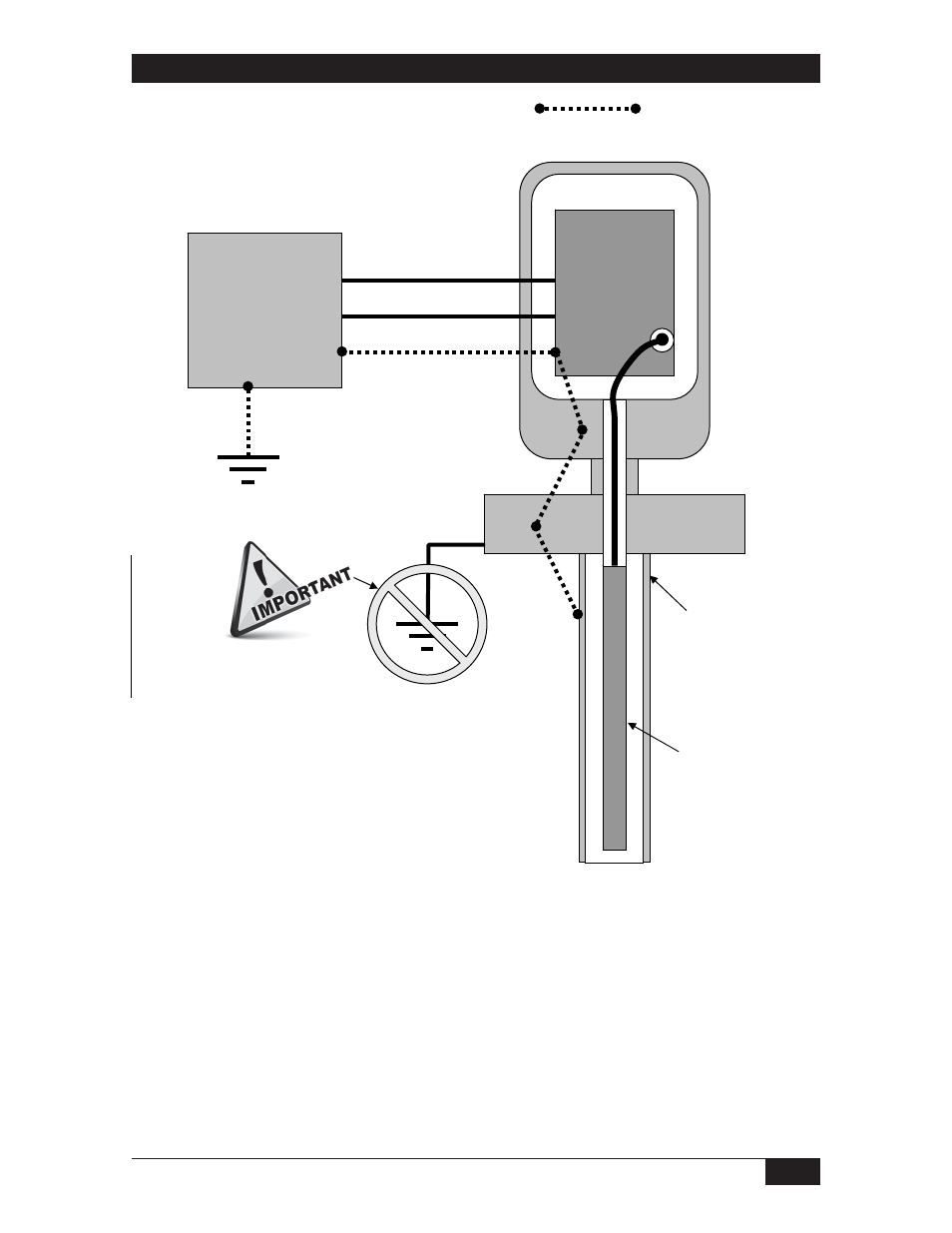

SOR RF Probe Grounding Scheme
Critical Grounding Path =
Circuit
Board
Line
Neutral
Ground
Electronics
Housing
Power Supply
Line
Neutral
Ground
Process
Connection
SOR Supplied
Stilling Well
(optional)
Probe Center
Conductive Element
IMPORTANT! Do not
provide separate earth
grounding for the process
connection. This can create
a parallel grounding circuit
that will impair operation
and calibration.
Do not provide separate
earth grounding for the
process connection. This can
create a parallel grounding circuit
that will impair operation and calibration.
