SOR 1550 Top Mounted Level Switch User Manual
Page 3
Form 865 (11.13) ©SOR Inc.
3/8
Linear = mm/inches

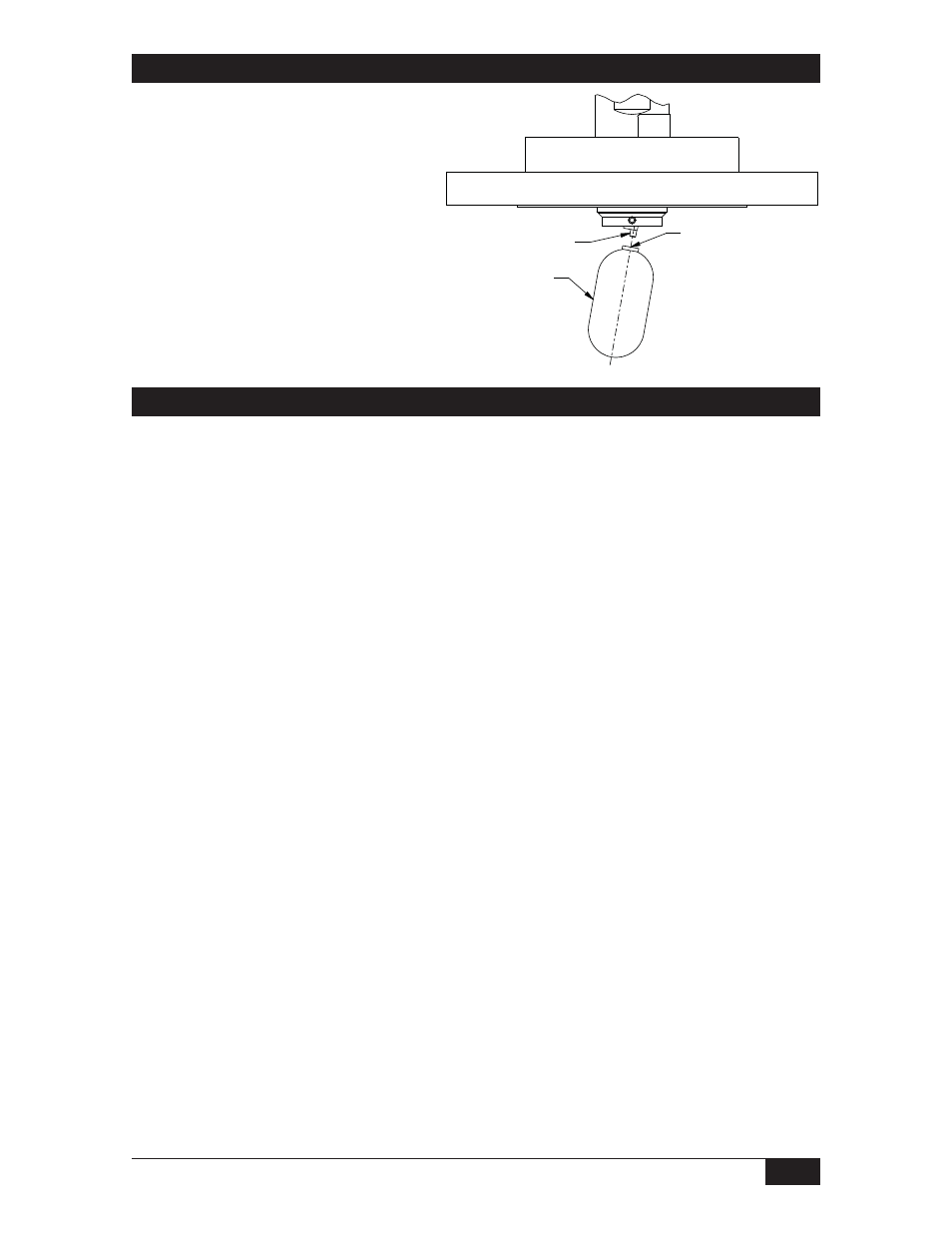

Drawing 0390747
APPLY TWO DROPS
LOCTITE 271 INSIDE
THREADED HOLE
OF FLOAT
FLOAT
SET SCREW
Place two drops of Loctite 271
inside the threaded hole of the float.
Thread the float onto the set
screw and hand-tighten.
NOTE: Do not remove the set screw as
it secures the pivot arm to the shaft.
Float Attachment (Series 1500 with Flange)
Special Conditions for Safe Use
The permanently attached leads must be suitably protected against mechanical damage and
terminated in a suitable junction or terminal facility with a minimum degree of protection of
at least IP20.0.
This apparatus may have a combined nameplate which carries multiple approvals
(intrinsically safe and flameproof). The equipment should be marked as to which protection
method it is installed as and shall not be changed or utilized in any other means than was
originally marked by the end user.
