SOR 805PT Pressure Transmitter User Manual
Page 4
4/8
Form 1435 (10.13) ©SOR Inc.

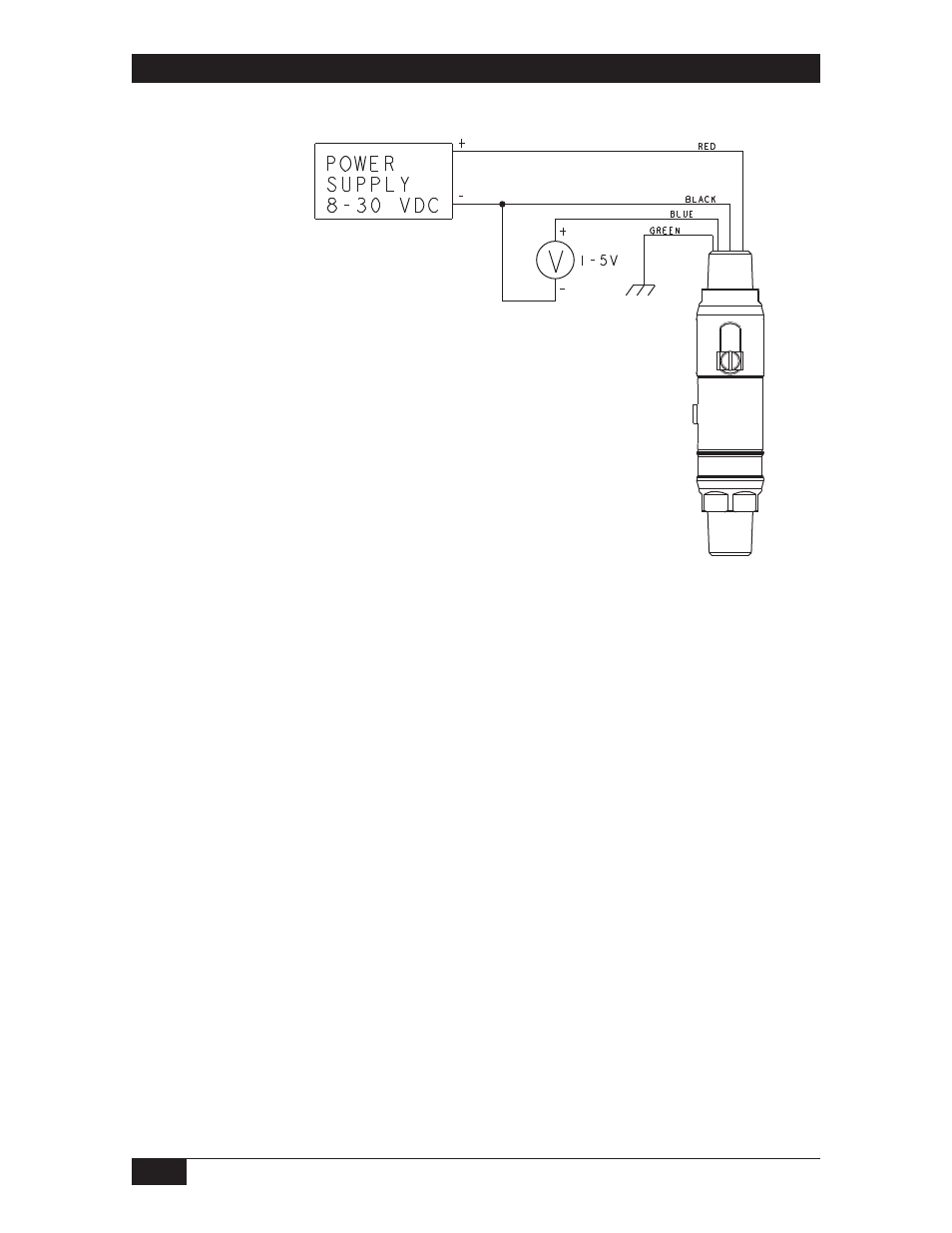

Electrical Termination - 805PT-V
72” flying leads are provided for connection to a terminal
strip within a cabinet or a splice within an outlet box:
Red (+)
8-30 VDC + Power Connection
Black (–)
Power Supply Ground
Blue
1-5 VDC Output
Green Earth
Ground
White Calibration
(Requires SOR Calibration Kit)
Brown
Not Used (trimmed at factory)
Bare
Drain Wire - Connected to
Earth Ground (trimmed at factory)
NOTE: An external ground screw is included for additional earth ground connection.
Drawing 0190315
