Dimensions, V1 housing v3 housing – SOR Adjustable Dead Band Weatherproof Pressure Switch User Manual
Page 4
4/4
Form 466 (05.13) ©SOR Inc.

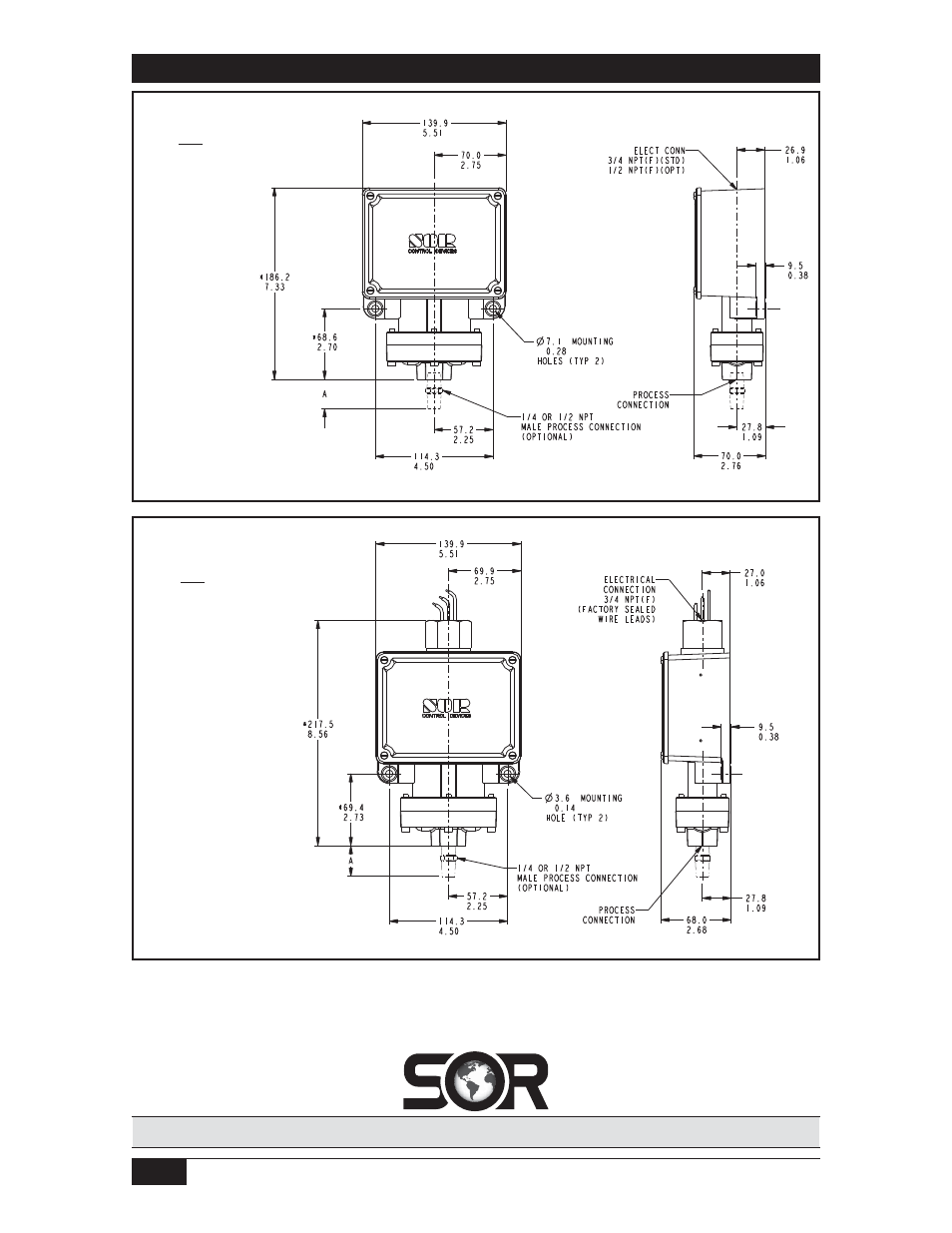

Dimensions
Dimensions are for reference only. Contact the factory
for certified drawings for a particular model number.
Linear = mm/inches
Drawing 0090236
Linear = mm/inches
Drawing 0090325
14685 West 105th Street, Lenexa, KS 66215
913-888-2630 800-676-6794 USA Fax 913-888-0767
Registered Quality System to ISO 9001
Printed in USA
www.sorinc.com
V1 Housing
V3 Housing
*Add
6.4
for non-aluminum ports.
0.25
*Add
6.4
for non-aluminum ports.
0.25
