14 © 2 0 0 3 d i r e c t e d e l e c t r o n i c s , i n c .
Once you have identified the correct wire, solder the WHITE
(H1/2) wire on the main connector to it and cover the connec-
tion with electrical tape.
step 6
Door locks
The system comes with a built in relay pack for door lock oper-
ation. When attempting to interface the power door locks with
your system it is important to understand that there are multiple
types of door locking systems in today's vehicles. To determine
your vehicle’s power door lock system, check the web information
on your vehicle.
If your door lock system is a different type than described in this
guide, go to www.diyrattler.com to download the door lock
➜

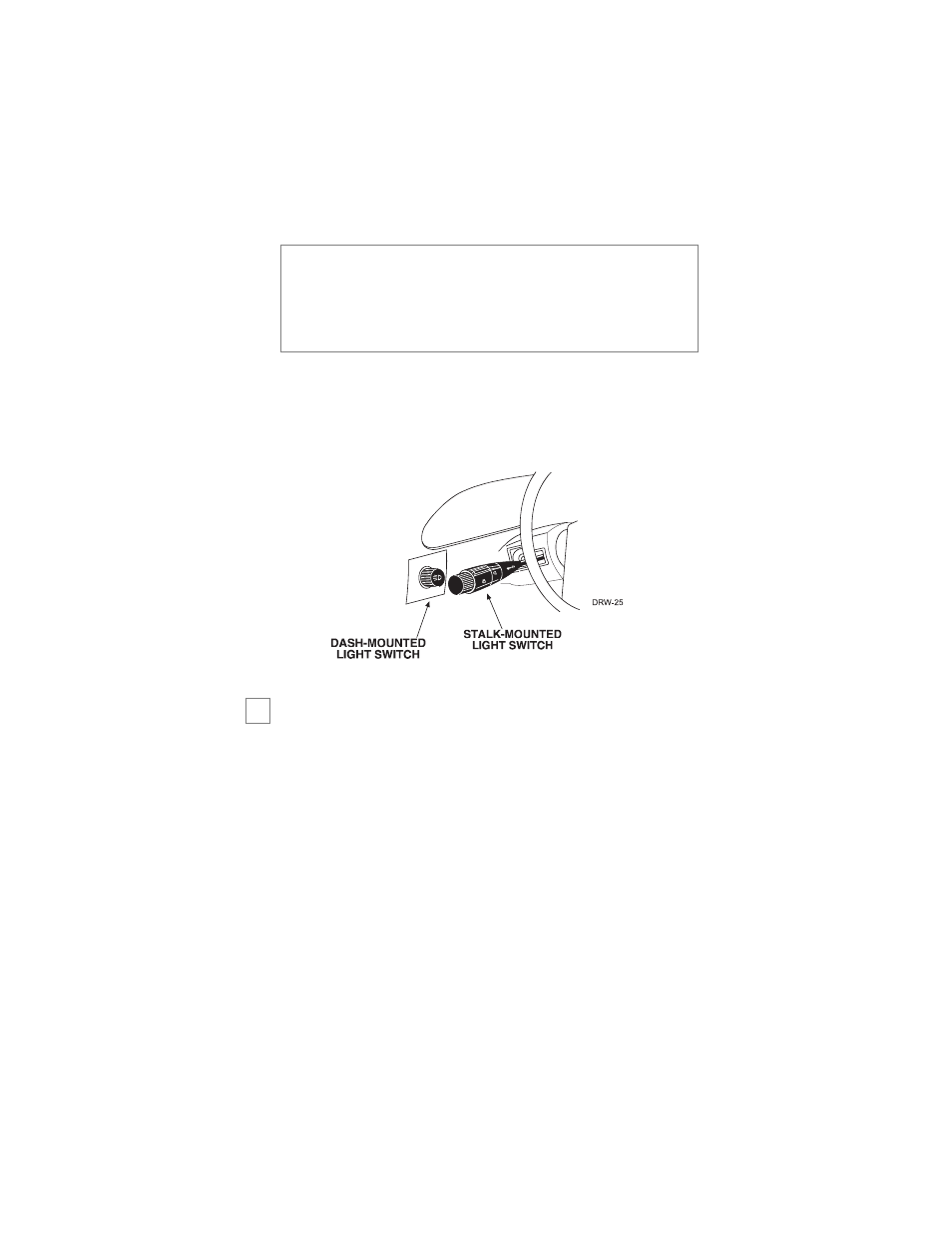

iim mp poorrttaan ntt:: While reading the meter turn (adjust) the
dash dimmer control switch. The voltage should not vary
on the meter. If the voltage does vary the incorrect sus-
pected wire has been tested. Find the correct wire and
retest.
