step 1

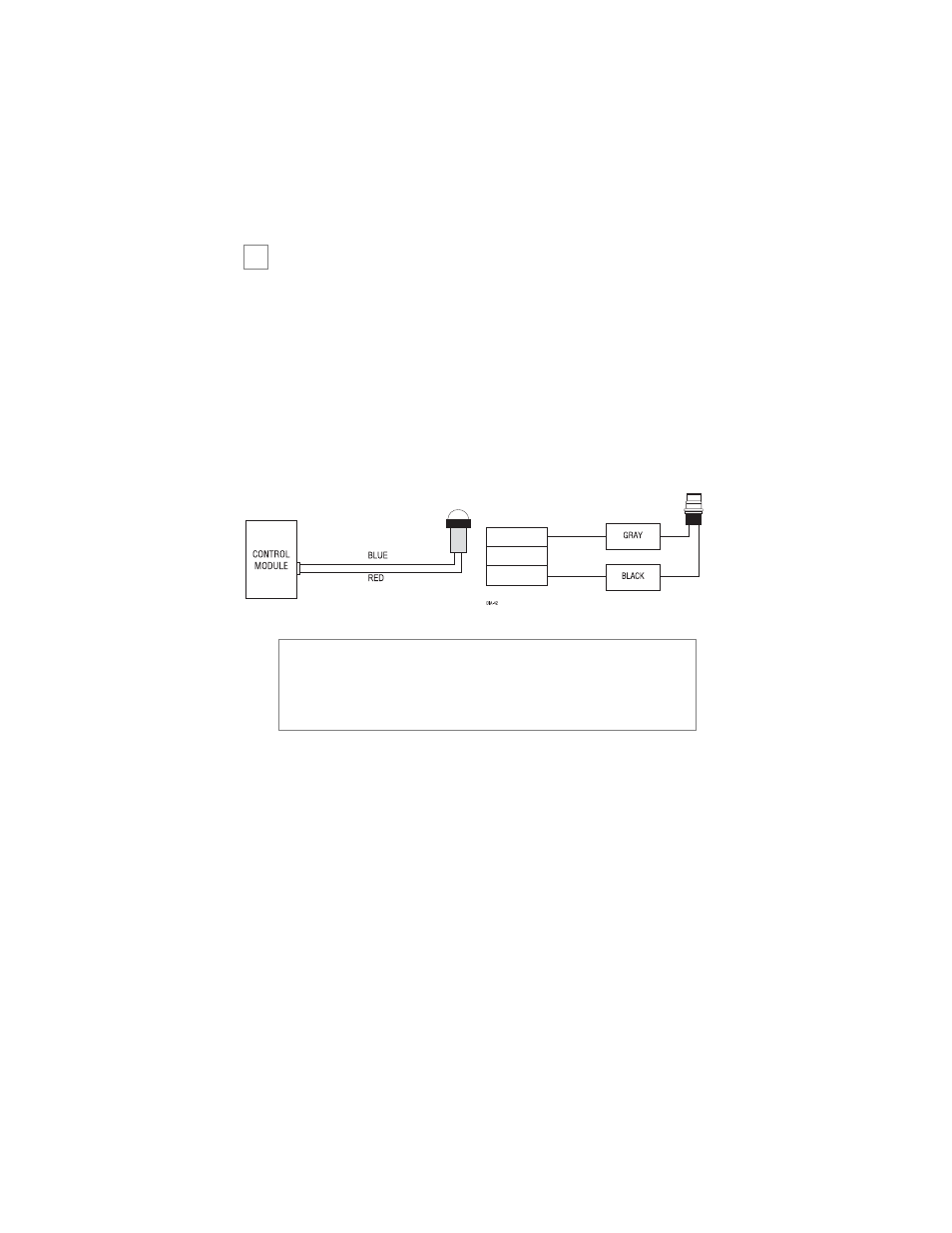

Plug-in LED and Valet/Program switch

The LED and the Valet®/Program switch both plug into the

control module. The status LED plugs into the white two-pin

port, while the Valet®/Program switch should be plugged into

the blue two-pin port. The status LED and Valet®/Program

switch each fit into 9/32–inch holes.

SSttaattu

uss L

LE

ED

D

V

Vaalleett//P

Prrooggrraam

m SSw

wiittcch

h

When mounting the LED it will be necessary to locate an area on

the dash that is visible from all sides of the vehicle, and has at

least 1 inch of clearance behind the mounting area. It is recom-

mended that a factory "pop-out" be used for the LED mounting,

using a 9/32 drill bit drill a hole in the location selected, feed the

LED through the hole, press the LED firmly until it snaps into

place. Run the wires to the selected control module mounting

note: The security features consist only of ignition watch
where the horn will honk if the keyless system sees igni-
tion when locked and the security feature is turned on in
the features learned routine.
