4848 Reactor Controller
w w w . p a r r i n s t . c o m 39
230VAC controller with 180VDC motor (continued)

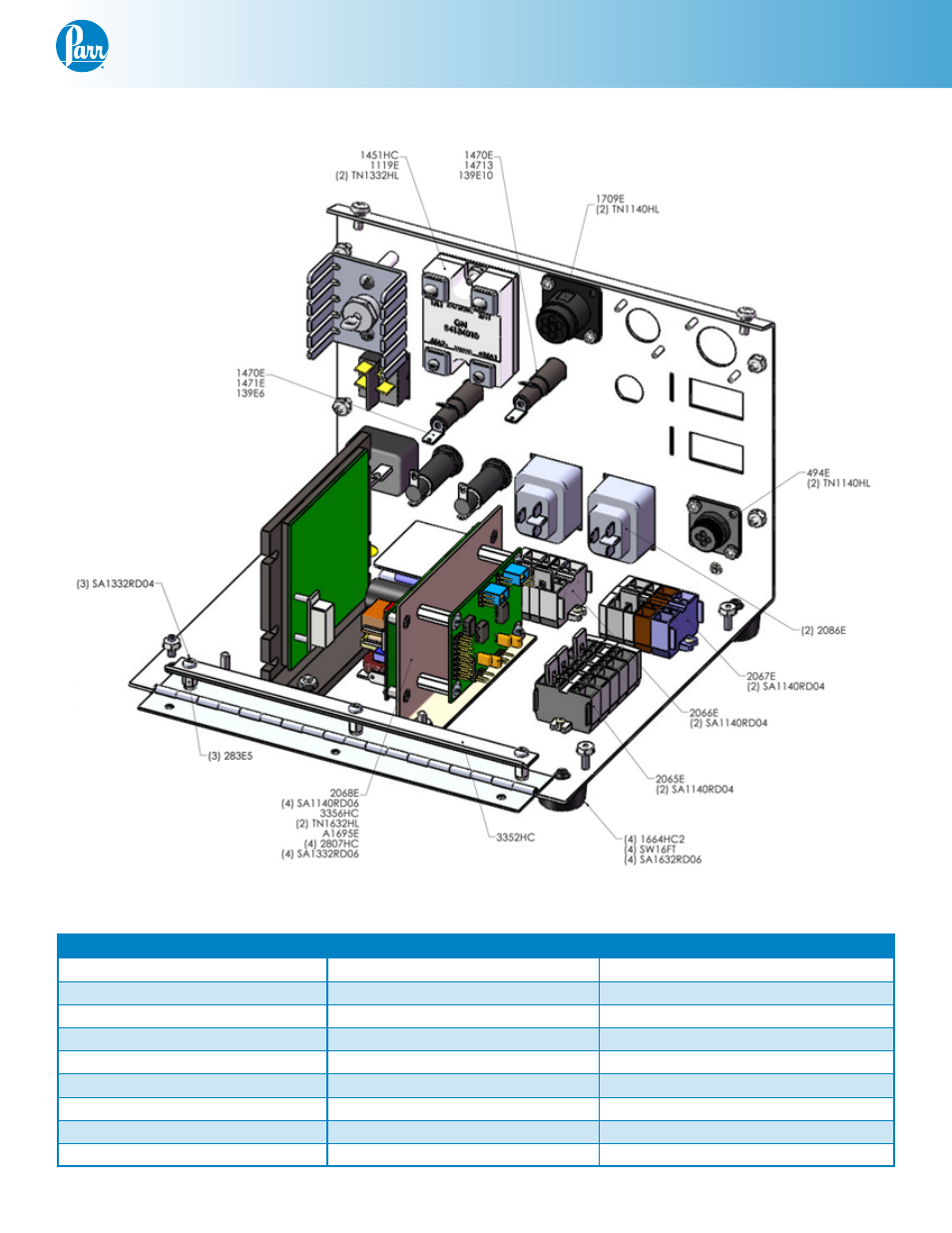

Diagram 9: Chassis, 230VAC, 180VDC motor
Parts shown in Diagram 9:
Part No. Description Part No. Description Part No. Description
1119E Solid State Relay 2065E Terminal block 494E Receptacle
139E6 Fuse, 1 amp 2066E Terminal block A1695E Excitation board
139E10 Fuse, 1/4 amp 2067E Terminal block SA1140RD04 Screw
1470E Fuse holder 2068E Power supply SA1332RD04 Screw
1471E Fuse carrier 2086E Receptacle SA1632RD06 Screw
1664HC2 Rubber foot 2807HC Spacer TN1140HL Hex nut
1709E Receptacle 283E5 Aluminum spacer TN1332HL Hex nut
3352HC Wire retainer TN1632HL Hex nut
3356HC Mounting bracket
