4848 Reactor Controller

w w w . p a r r i n s t . c o m

37

230VAC Controller with 180VDC Motor

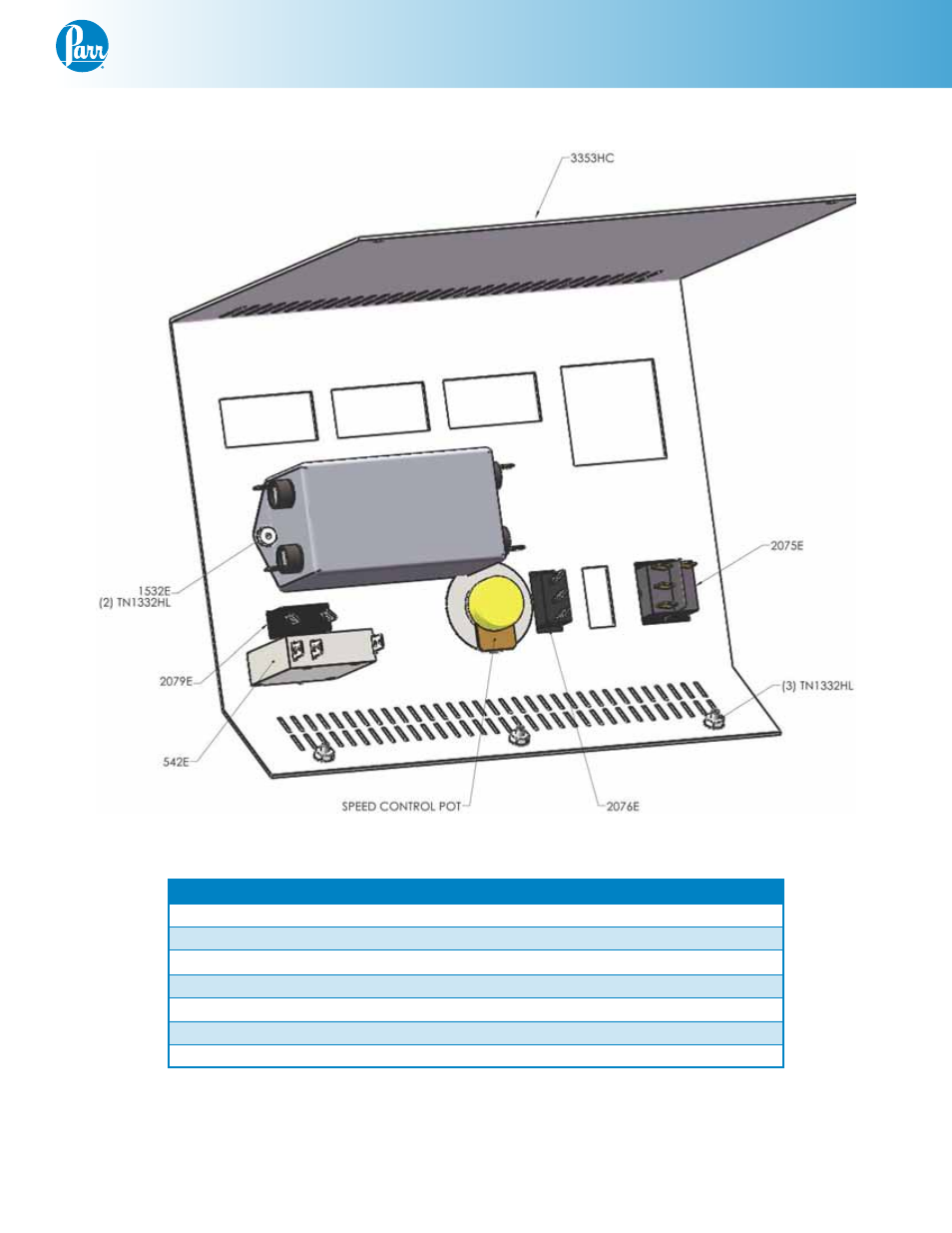

Diagram 7: Front panel, 230VAC, 180VDC motor

Parts shown in Diagram 7:

Part No.

Description

1532E

Filter

2075E

Heater switch

2076E

Motor switch

2079E

High Limit Light

3353HC

Front Panel plate

542E

High Limit breaker

TN1332HL

Hex nut
