Parr Instrument 4848 - Manual (Page 38)

4848 Reactor Controller
P a r r I n s t r u m e n t C o m p a n y 38
230VAC controller with 180VDC motor (continued)

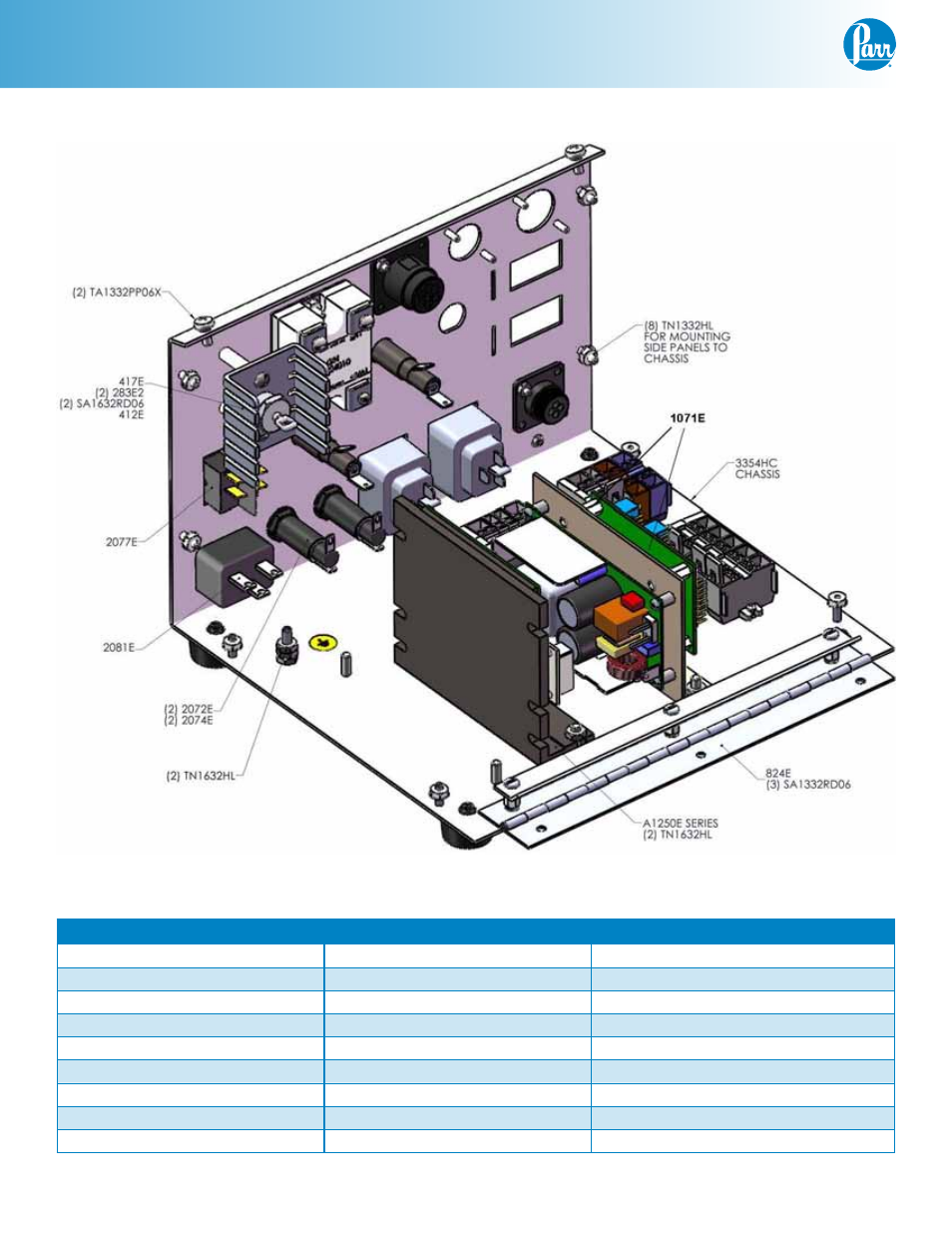

Diagram 8: Chassis, 230VAC, 180VDC motor
Parts shown in Diagram 8:
Part No. Description Part No. Description Part No. Description
1588E Signal Isolator 412E Diode TN1632HL Hex nut
2072E Fuse holder 417E Heat sink
2073E Screw driver slot 824E Hinge A1250E series Speed board
2074E Fuse, 20 amp SA1332RD06 Screw A1252EEE Board, 1/2 hp, 180VDC
2077E Main switch SA1632RD06 Screw A1252E2EE Board, 1/4 hp, 180VDC
2081E Power receptacle SB1332BT06 Hex nut A1252E3EE Board, 3/4 hp, 180VDC
283E2 Spacer SN2520HX Hex nut
3022HC Bracket SW25NL Lock washer
3354HC Chassis TN1332HL Chassis screw
