4848 Reactor Controller
w w w . p a r r i n s t . c o m 33
115VAC Controllers (continued)

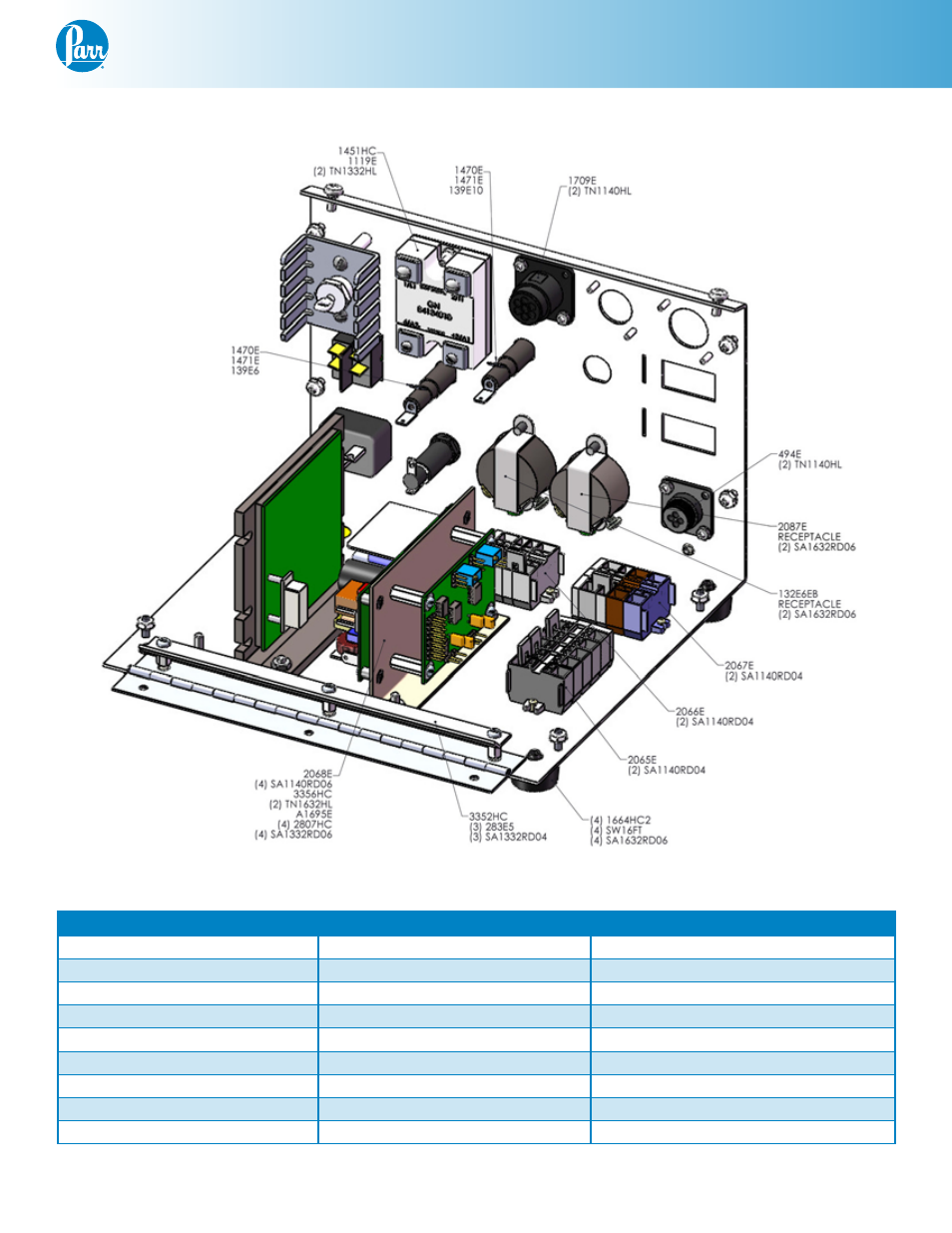

Diagram 3: Chassis, 115VAC
Parts shown in Diagram 3:
Part No. Description Part No. Description Part No. Description
1119E Solid State Relay 2066E Terminal block A1695E Excitation board
132E6EB Receptacle 2067E Terminal block SA1140RD04 Screw
139E6 Fuse, 1 amp 2068E Power supply SA1332RD04 Screw
139E10 Fuse, 1/4 amp 2087E Receptacle SA1632RD06 Screw
1470E Fuse holder 2807HC Spacer TN1140HL Hex nut
1471E Fuse carrier 283E5 Aluminum spacer TN1332HL Hex nut
1664HC2 Rubber foot 3352HC Wire retainer TN1632HL Hex nut
1709E Receptacle 3356HC Mounting bracket
2065E Terminal block 494E Receptacle
