4848 Reactor Controller
P a r r I n s t r u m e n t C o m p a n y 32
115VAC Controllers (continued)

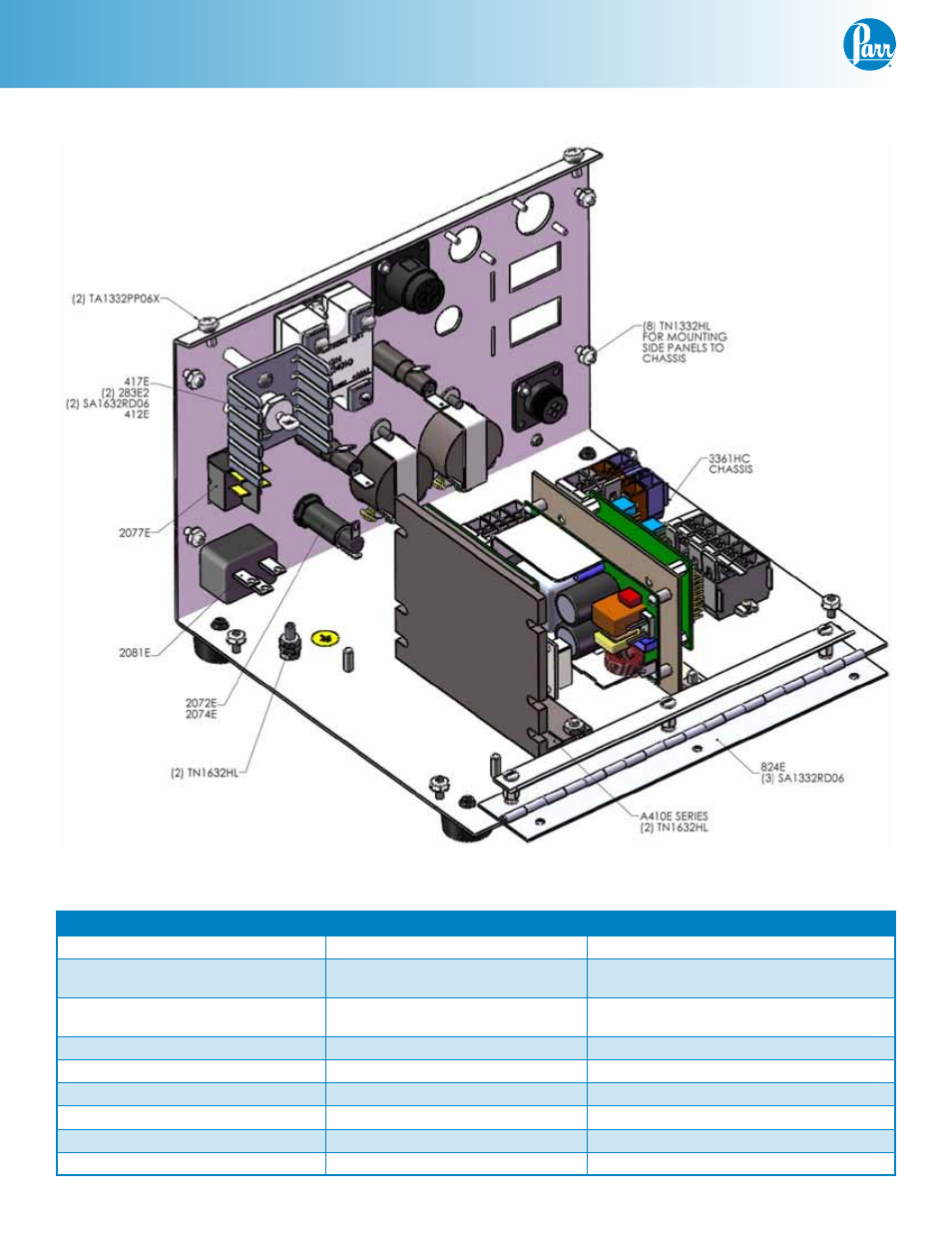

Diagram 2: Chassis, 115VAC
Parts shown in Diagram 2:
Part No. Description Part No. Description Part No. Description
2072E Fuse holder SA1332RD06 Screw A410E series Speed control board
2074E Fuse, 20 amp SA1632RD06 Screw A410E10EB Board, 1/8 hp,
90VDC
2077E Main switch SB1332BT06 Hex nut A410E8EB Board, 1/4 hp,
90VDC
2081E Power receptacle SN2520HX Hex nut A410E9EB 1/2 hp, 90VDC
283E2 Spacer SW25NL Lock washer
3361HC Chassis TN1332HL Chassis screw
412E Diode TN1632HL Hex nut
417E Heat sink
824E Hinge
