4848 Reactor Controller

P a r r I n s t r u m e n t C o m p a n y

34

230VAC Controller with 90VDC Motor

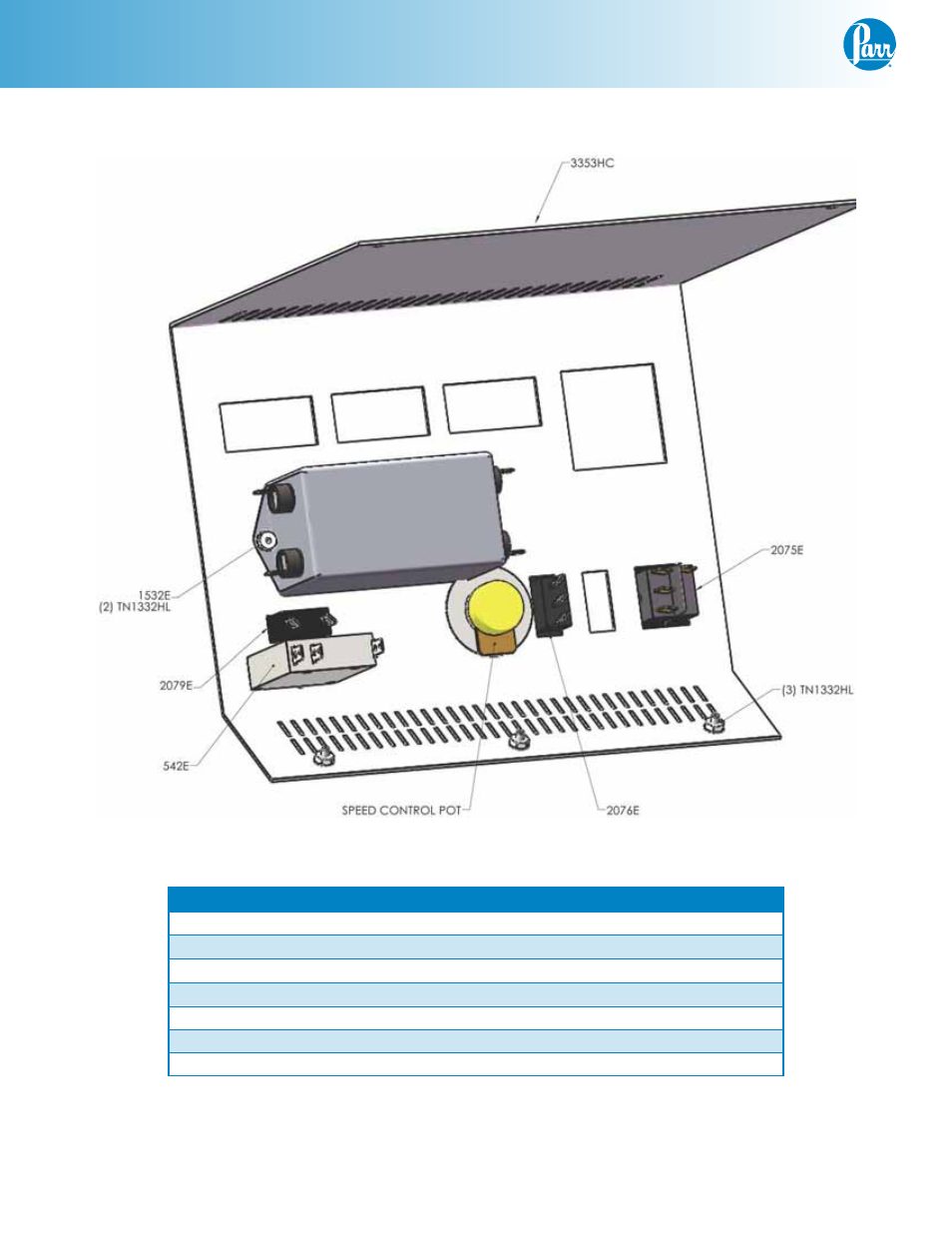

Diagram 4: Front Panel Inside, 230VAC, 90VDC motor

Parts shown in Diagram 4:

Part No.

Description

1532E

Filter

2075E

Heater switch

2076E

Motor switch

2079E

High Limit Light

3353HC

Front Panel plate

542E

High Limit breaker

TN1332HL

Hex nut
