4848 Reactor Controller
P a r r I n s t r u m e n t C o m p a n y 36
230VAC controller with 90VDC motor (continued)

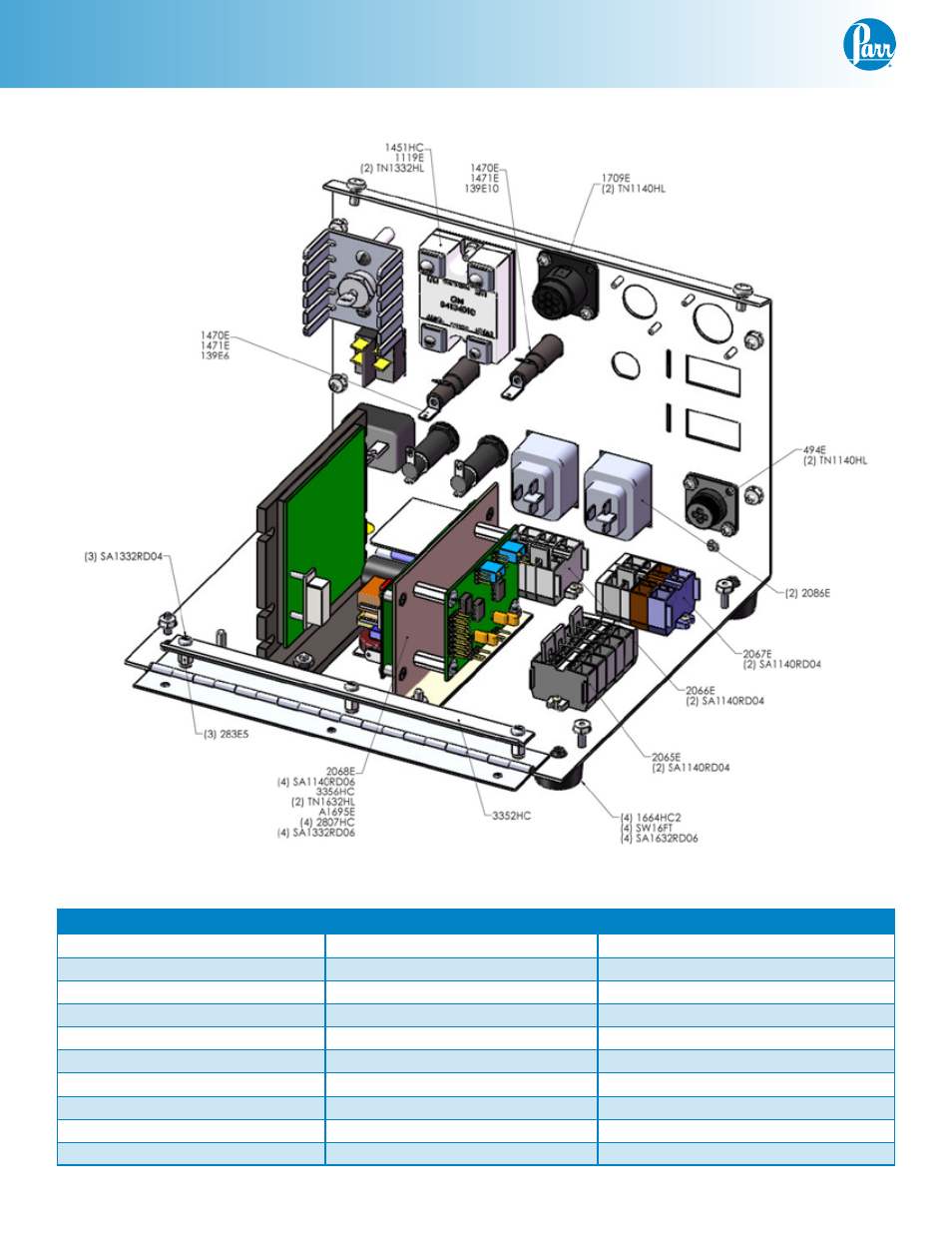

Diagram 6: Chassis, 230VAC, 90VDC motor
Parts shown in Diagram 6:
Part No. Description Part No. Description Part No. Description
1119E Solid State Relay 206E Terminal block 494E Receptacle
1129E T/C panel 2066E Terminal block A1695E Excitation board
1259E Fuse holder, lit 2067E Terminal block
139E6 Fuse, 1 amp 2068E Power supply SA1140RD04 Screw
139E10 Fuse, 1/4 amp 2086E Receptacle SA1332RD04 Screw
1470E Fuse holder 2807HC Spacer SA1632RD06 Screw
1471E Fuse carrier 283E5 Aluminum spacer TN1140HL Hex nut
1664HC2 Rubber foot 3352HC Wire retainer TN1332HL Hex nut
1790E Receptacle 3356HC Mounting bracket TN1632HL Hex nut
