4848 Reactor Controller
w w w . p a r r i n s t . c o m
31
Controller Diagrams
115VAC Controllers

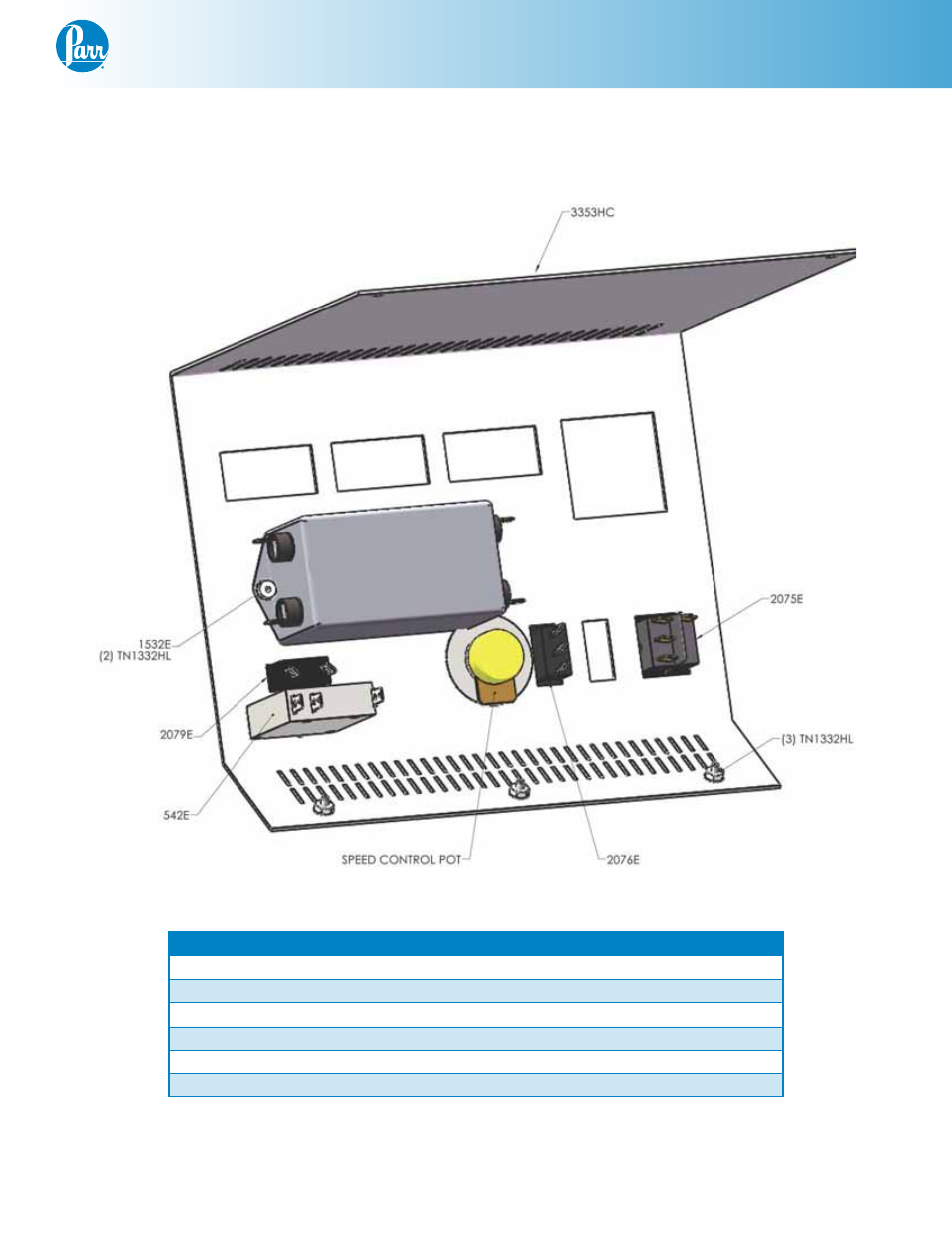

Diagram 1: Front Panel, 115VAC
Parts shown in Diagram 1:
Part No.
Description
1532E
Filter
2075E
Heater switch
2076E
Motor switch
2079E
High Limit Light
3353HC
Front Panel plate
542E
High Limit breaker
