27 rev 07.16.12
1 ON
23
4
15
CHARGING
POWER
STATUS
RF
PULL-PUSH
MODE1
MODE2
LOCK/BEACON
OFF 120
MIN MAX
STALL FORCE
CLOSE TIME
SET
LIMIT
LEARN
REMOTE
AUX OUT
SOLAR
PANEL
18VAC
RECR
GRN BLK RED EXIT
SAFETY
EDGE
CY
CLE
COMMON
LINK
LEARN REMOTE
Button
Personalize Your Transmitter Setting
All transmitters have a standard setting and are ready to operate your
Mighty Mule Gate Opener. For your safety and security, we strongly
recommend that you replace the factory setting with your own personal
setting.
NOTE: If you have multiple transmitters, you should adjust all of
them at this time.

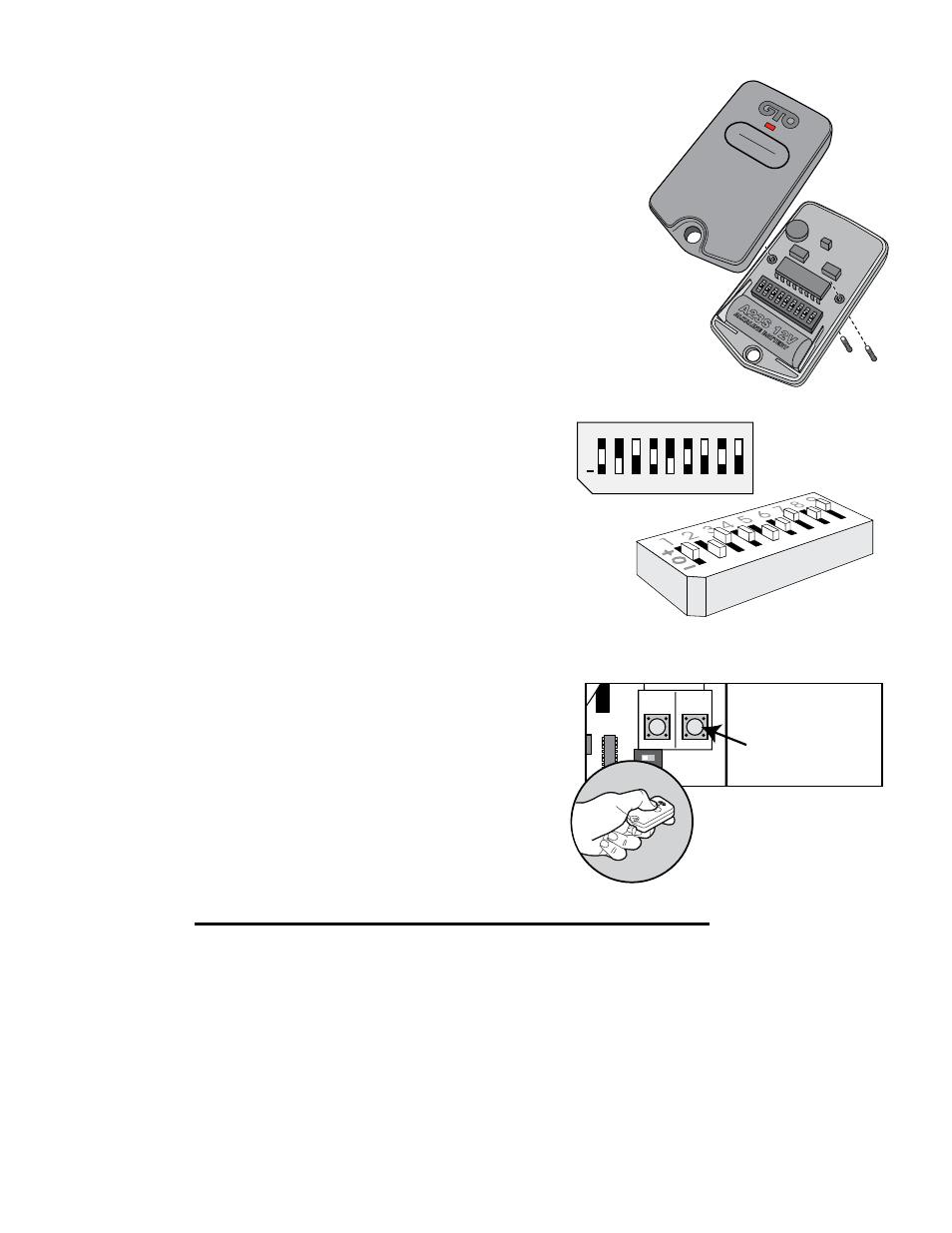

Step 1
Use a small Phillips head screw driver to remove the transmitter cover.
Step 2.
Set the transmitter DIP switches using a small screwdriver. There are nine
(9) transmitter DIP switches; each can be placed in three different positions
(+, 0, –). DO NOT set all the switches in the same position, such as all +,
all 0, or all –. Once the DIP switches have been
reset, replace and close the access cover.
WARNING: No other adjustments should be made inside the
transmitter.
Step 3.
Program the new setting in the control board memory.
A. Press and hold the transmitter button while sliding the ON/
OFF switch to the ON position.
B. Press and hold the LEARN Transmitter button until the
alarm sounds (3-5 seconds).
C. Release the Transmitter button. The new transmitter setting
is now programmed.
D. Verify that the transmitter operates the gate.
FCC WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment. In accordance with FCC Part 15, Section 15.21, the manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment. Such modifications could VOID the user authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. The GTO AQ201-NB receiver was used during FCC testing. Substitutes should not be used.
However, there is no guarantee that interference will not occur in particular installations. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures: • Increase the separation between the equipment and the receiver. • Connect the equipment into an
outlet on a circuit different from that which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.
+
0
ECE
1 2 3 4 5 6 7 8 9
1 2
3
4
5
6
7
8 9
EC E
A23S 12V
ALK
ALIN
E B
ATT
ER
Y
+ 0 –
LED
